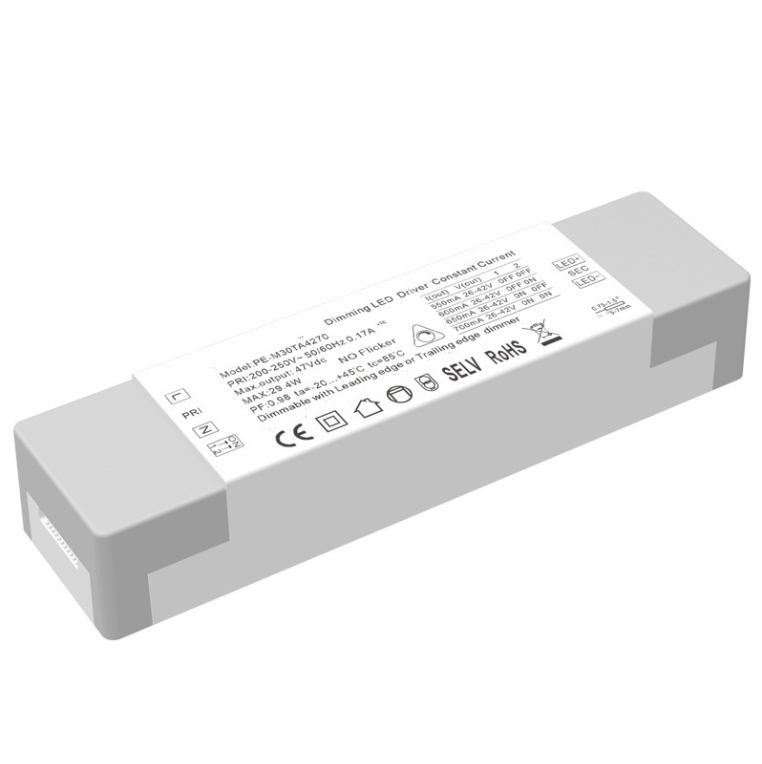

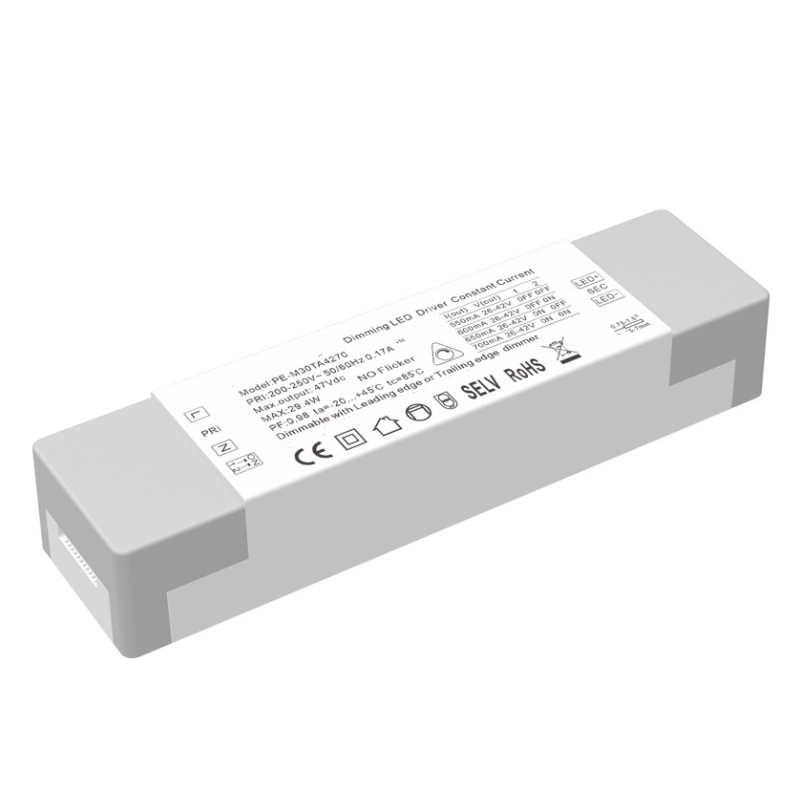

30W Constant Current Triac Dimming LED Driver

Wholesale PE-M30TA 30W Constant Current Triac Dimming LED Driver with SAA CE ROHS which manufactured by Starwell factory.
We offer cheap price and good quality Constant Current Dimming LED Driver.
Features:
1. LED Triac dimming driver ,dimming range 0.02-100%
2. Suitable for RPC MOSFET dimmer and FPC TRAIC dimmer
3. Protection type: short circuit / overcurrent / overvoltage
4. Natural air cooling and heat dissipation
5. Ultra small volume design
6. Conform to the world lighting equipment safety standards
7. Protection class II
8.5 year warranty
9. The design of crimping cover is convenient and fast
10.4 gear current selection

Send Inquiry

Product Details

The high quality 30W Constant Current Triac Dimming LED Driver is manufactured by Starwell, a professional LED Driver manufacturer in China. Our this durable LED Driver is a specialized power supply device tailored for LED lighting systems, integrating stable constant current output and TRIAC dimming compatibility to balance lighting performance and energy efficiency. With a rated power of 30W, it matches mid-power LED fixtures (such as downlights, panel lights, and track lights) and ensures consistent current delivery—effectively preventing LED flicker caused by voltage fluctuations and extending the lighting lifespan by 30% or more compared to non-constant current drivers.

Application:

1. Led monochrome light source

2. Villa intelligent lighting

3. Access to wireless intelligent lighting system

4. Museum lighting

5. High end commercial lighting

Ultra small size design, the raw materials used are first-line brands, imported chip ultra deep dimming design, matching various European brands of dimmers Anti surge voltage 2KV, smooth dimming, flicker free, adjustable current design, low noise in dimming process

A key advantage lies in its compatibility with traditional TRIAC dimmers.

Unlike ordinary drivers that require dedicated dimming systems, this product works seamlessly with existing AC TRIAC dimming switches (common in homes and commercial spaces), enabling smooth brightness adjustment from 10% to 100% without signal interference or dimming dead zones. This "retrofit-friendly" design eliminates the need for rewiring, significantly reducing upgrade costs for lighting renovation projects.

In terms of safety and reliability, High-Performance Constant Current Dimming LED Driver meets global standards such as CE and UL, with built-in over-voltage, over-current, and short-circuit protection. The driver also features a wide input voltage range (typically 100-240V AC), adapting to different regional power grids. Its compact, heat-resistant housing (made of flame-retardant PC material) supports both indoor and semi-outdoor installations, making it suitable for residential living rooms, commercial offices, and retail display areas where precise brightness control is needed.

Overall, this driver bridges the gap between traditional dimming infrastructure and modern LED lighting, offering a cost-effective, high-performance solution for energy-saving and comfort-focused lighting scenarios.

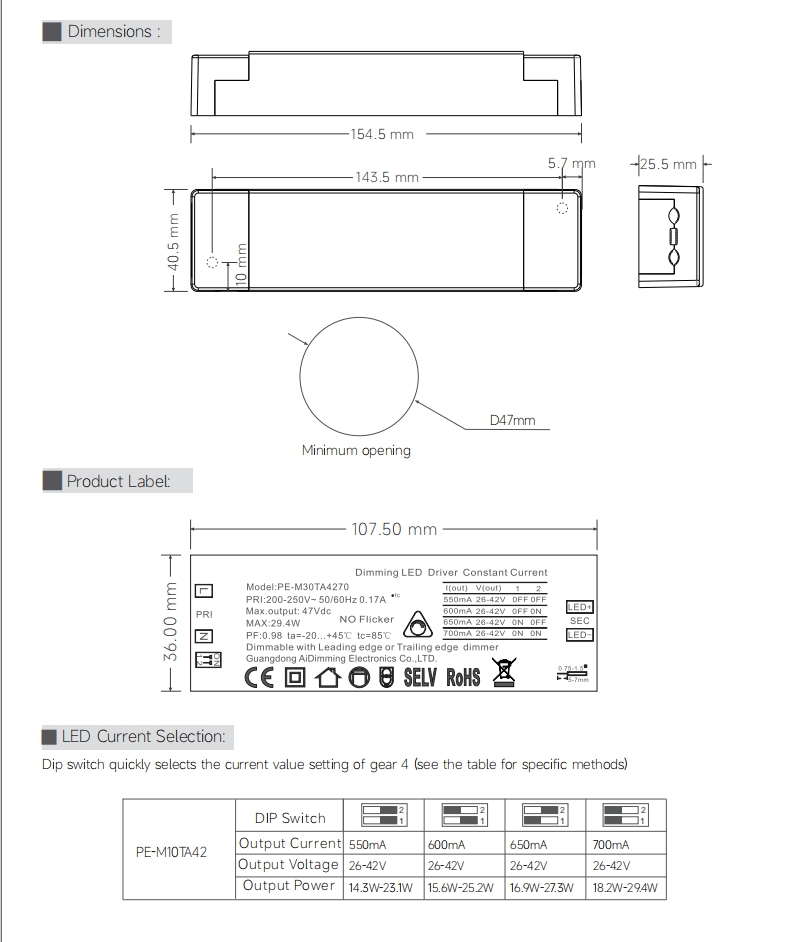

item	30W Constant Current TRIAC Dimming LED Driver
Interface Type	Terminal
Model	PE-M30TA42
Output voltage	26-42Vdc
Max Ootput Voltage	42Vdc
Non-load Output Voltage	47Vdc
Output Current	550/600/650/700mA
Output Power	14.3W-29.4W
Strobe Level	No Flicker
Dimming Range	O~100%. LEDstart at 0.02%possible.
PWM Dimming Frequency	>3600Hz
Current AcCuracy	土5%
Dimming Interface	AC phase cut dimming (Triac dimming)
Input Voltage Range	200-250Vac
Frequency	50/60Hz
Input Current	<0.17A ac200v
Power Factor	PF>0.98/230V aclat full load)
THD	230Vac@THD <17% (at full load)
Efficiencyltyp.)	85.5%
Inrush Current(typ.)	cold startO.9A@23OVac

FAQ

Q1:Can I have a sample order for power supply,LED driver and charger?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2.What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-4 weeks for order quantity more than.

Q3.Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available.

Q4.How do you ship the goods and how long does it take to arrive?

A: Airline and sea shipping also optional.ship by sea usually takes 25-35 days to arrive.

Q5.How to proceed an order for power supply?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?with logo printing,what's the MOQ for mass?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.the MOQ for logo OEM is 5000pcs.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
