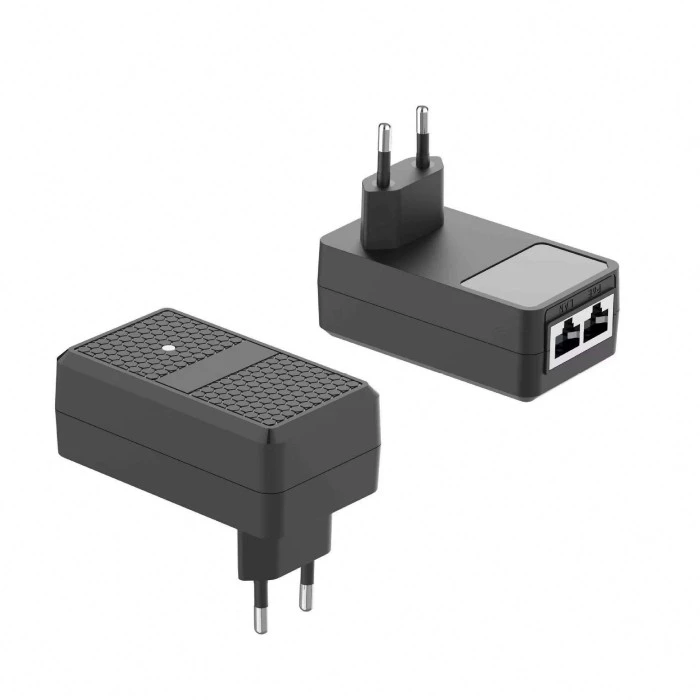

24V 1A Wall Mounted EU Plug POE Injector

STARWELL, a professional leader of power solutions industry in China, presents its high-quality 24V 1A Wall Mounted EU Plug POE Injector. Designed for efficient space utilization, this compact unit combines power and data transmission through two RJ45 ports—one for LAN input and one for PoE output.
Product Features:
input: 100-240VAC
output: 24V/0.5A, 24V/1A, 48V0.5A

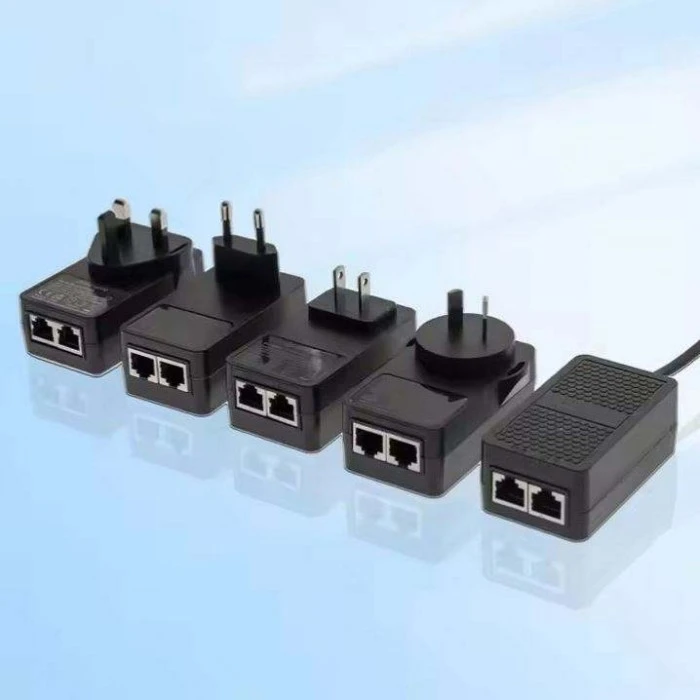

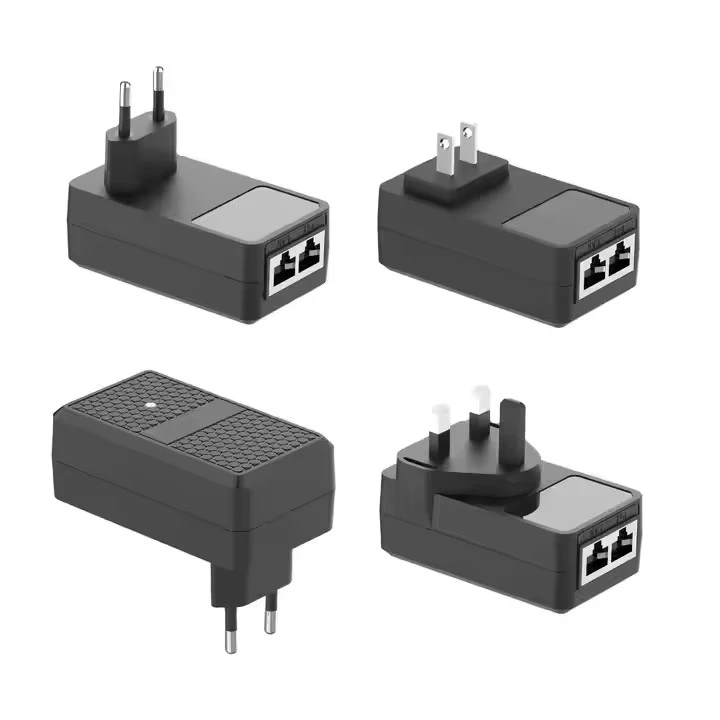

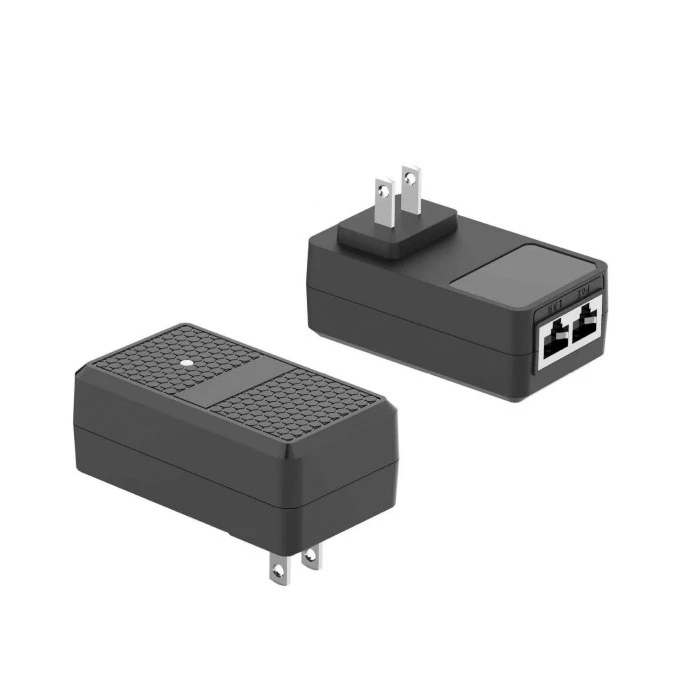

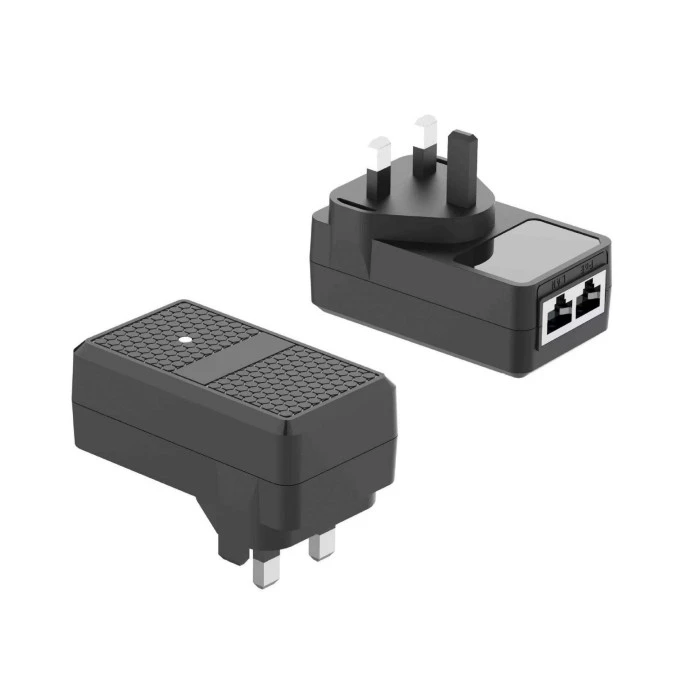

Plug type: US/CN/EU/UK/AUS plug optional
Certificates: UL, CE, FCC, TUV, UKCA
DC PORT: 2RJ45: Port 1: LAN, Port 2: POE
Protocol type: Passive POE or Active POE optional
POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 4pairs1,2,4,5(+) 3,6,7,8(-)
Protocol: Compatible with IEE802.3af/IEEE802.3at
Data Speed: 10/100/1000M/2.5G/5G/10G bps (optional)
size: 82.546.9*30.7mm(exclude plug)

Send Inquiry

Product Details

STARWELL factory’s 24V 1A Wall Mounted EU Plug POE Injector features universal AC input (100-240V) with selectable outputs: 24V/0.5A, 24V/1A, or 48V/0.5A. It supports both Passive and Active PoE protocols, with flexible pin assignments including Midspan (4,5+/7,8-) and Endspan (1,2+/3,6-). Fully compliant with IEEE802.3af/at/bt PoE++ standards, it delivers exceptional data speed capabilities ranging from 10/100/1000M to 2.5G/5G/10G bps.

Built with premium components for reliability, this injector comes with interchangeable plug options for US/CN/EU/UK/AUS markets. It holds comprehensive global safety certifications including UL, CE, FCC, TUV, and UKCA. STARWELL combines superior quality with competitive pricing, making this PoE injector an ideal choice for professional networking installations requiring dependable power delivery and high-speed data transmission in a compact wall-mounted form factor.

STARWELL stands as a renowned and professional 12V 24V 48V Universal POE Adapter manufacturer based in China. We have built our reputation on producing high-quality products at reasonable prices, serving clients worldwide with reliable networking solutions that combine innovation with practical design. Our PoE injectors are engineered to support a comprehensive range of transmission rates, including 10/100/1000M, 2.5G, 5G, and 10G. This exceptional flexibility allows for seamless integration with diverse Ethernet devices, from legacy equipment to high-bandwidth applications, ensuring both reliable power delivery and uninterrupted data transmission across your entire network infrastructure. STARWELL's PoE injectors strictly adhere to IEEE802.3.af/at/bt PoE++ standards, guaranteeing broad compatibility with virtually all PoE-enabled devices on the market. This compliance enables efficient power delivery while supporting advanced functionality such as remote device management and real-time power monitoring, giving network administrators greater control over their installations.

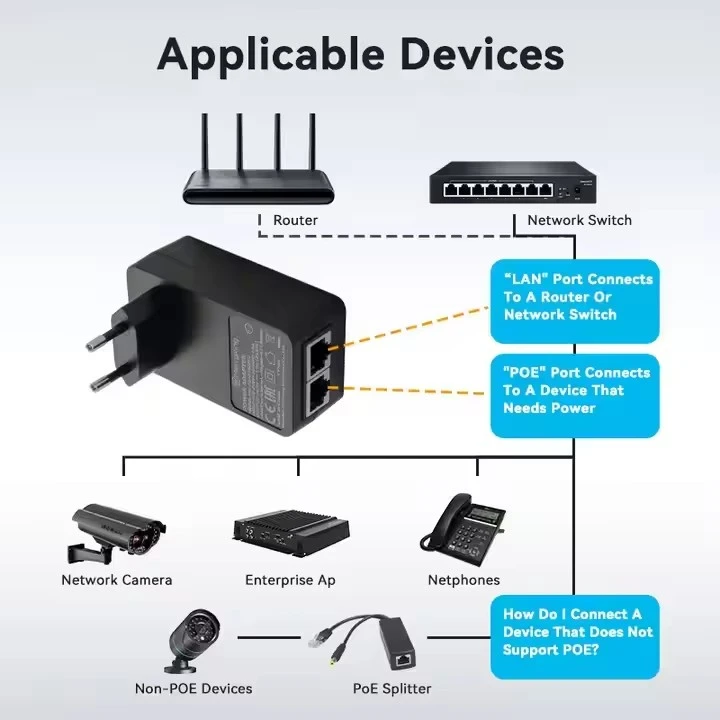

Our commitment to quality is reflected throughout every stage of manufacturing, from component selection to rigorous testing procedures. Each unit undergoes comprehensive inspection to ensure it meets or exceeds industry standards, delivering consistent performance and extended product longevity even in demanding environments. STARWELL has established itself as a trusted provider of PoE injectors, with products widely deployed in security systems, IP cameras, wireless access points, and VoIP phones. When you choose STARWELL, you're selecting proven reliability backed by professional manufacturing excellence.

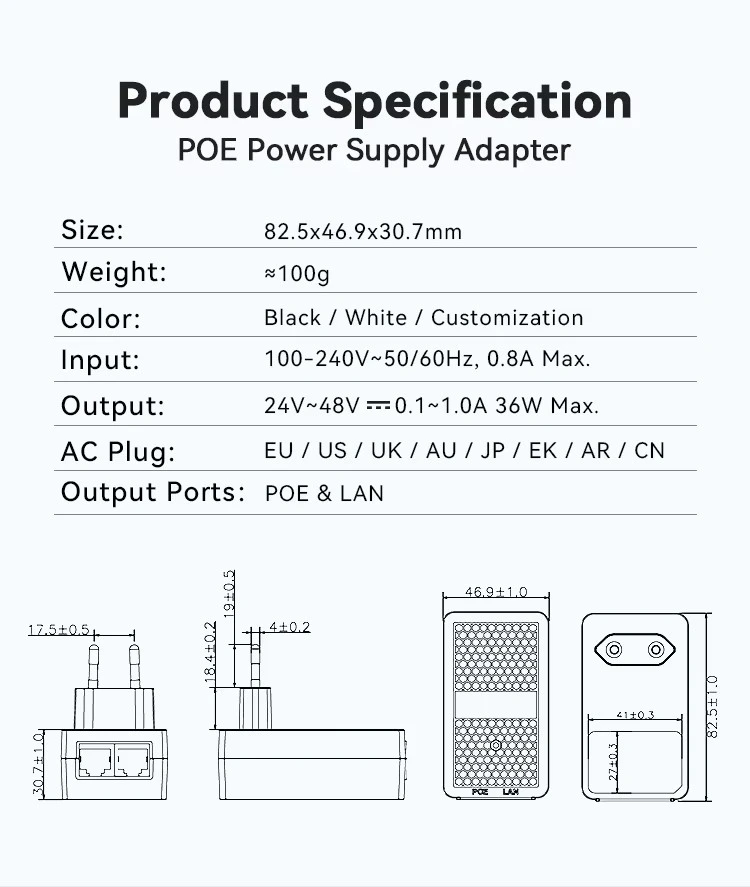

Starwell 24V 1A POE Injector Specification:

Product Name	POE Power Supply Adapter
Certificate	CE LVD EMC UKCA
Input	100-240V~50/60Hz 0.8A Max
Output Port	POE+LAN Dual-Port
Output	24V-48V 0.1A-1A
Material	Flame retardant PC material

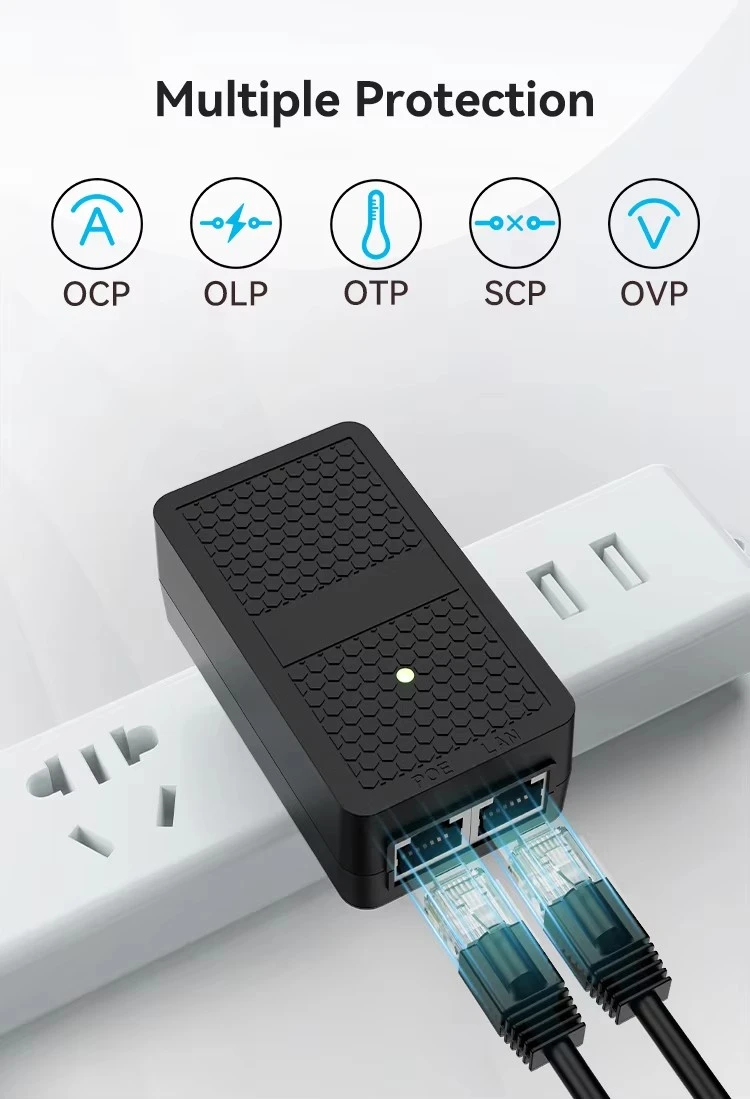

Protection	OCP OTP OVP SCP
AC plug	US EU AU UK EK CN AR
Color	Black/White/Customized
Test	100% Test Before Shipment
Customer Service	24Hrs Online Service
Warranty	2 Years
Logo	Print Logo For Free

FAQ:

1: Do you have OEM/ODM service? Can I have my own logo on the adapter?
A1: OEM/ODM is available. For logo, we can do laser and Screen print or print your logo on the label.
Q2: How to get a sample?
A2: We offer 1-3 free samples for you to test once all details parameters confirmed, while you just need to pay for the freight.
Q3: How does your factory do related quality control?
A4: Quality is top priority. Firstly, we will control the raw material; secondly, every worker does his job on the production line
to ensure the professional; lastly, all products will be full tested well before packing.
Q4: What is the warranty of your products?
A4: The warranty is 24 months; if the products do not work in the warranty period, please let us know them in detail and show us the relative picture, we will give after-sale service according to the situation.
Q5: Which payment terms do you offer?
A5: T/T open account transaction, western union & Paypal.
