10W Constant Current 0-10V Dimmable LED Driver
  • 10W Constant Current 0-10V Dimmable LED Driver10W Constant Current 0-10V Dimmable LED Driver

10W Constant Current 0-10V Dimmable LED Driver

As leading China suppliers, we offer Starwell 10W Constant Current 0-10V Dimmable LED Drivers in bulk, combining quality performance with classy construction. The PE-C10 adopts signal control and 0 / 1-10V signal to control the brightness. The raw materials used are first-line brands. The imported chip has no stroboscopic dimming design, which matches a variety of products on the market Intelligent dimming system. PWM dimming output controls the brightness of LED, accurately controls the brightness, and the deviation of dimming color temperature is small.
Silica gel heat conduction process is adopted internally to make the electronic The heat balance of components is more stable.

Send Inquiry

Product Details

Looking for reliable suppliers of 10W Constant Current 0-10V Dimmable LED Driver? Starwell offers bulk quantities from its factory in China, with a focus on classy design and consistent quality.

Our 10W Constant Current 0-10V Dimmable LED Driver utilizes silicone thermal conductive technology internally, which allows for more stable thermal equilibrium of the electronic components.


Specification

Model

PE-C10AA42

PE-C10RA

OUTPUT

Output Voltage

25-42Vdc

25-42Vdc

Max Output Voltage

42Vdc

42Vdc

Non-load Output Voltage

46Vdc

46Vdc

Output Current

250mA(150-250mA)

250mA(150-250mA)

Output Power

2.25W~10.5W

2.25W~10.5W

Strobe Level

Flicker free

Dimming Range

0 ~ 100%, LED dimming from 0.03%

PWM Dimming Frequency

>3600Hz

Current Accuracy

±5%

Power down mode

Active signal, no signal access, output the maximum set current

INPUT

Dimming Interface

0-10V 1-10V 10vpwm signal interface current < 0.1mA (100k potentiometer for pe-c10ra)

Input Voltage Range

200-250Vac

Frequency

50/60Hz

Input Current

<0.06A  ac230v

Power Factor

PF>0.96/230V

THD

230Vac@THD  <4% (at  full  load)

Efficiency(typ.)

78%

Inrush Current(typ.)

cold  start20A@230Vac

Anti Surge

L-N: 1.5kV

Leakage Current

<0.25mA/230Vac

ENVIRONMENT

Working Temperature

ta: 55°C  tc: 80  °C

Working Humidity

20 ~ 95%RH, non-condensing

Storage Temp., Humidity

-40 ~ 80°C°, 10~95%RH

Temp. Coefficient

±0.03%/°C(0-50)°C

Vibration

10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection

Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.

Over Load Protection

Shut down the output when rated power≥102%, auto recovers.

Short Circuit Protection

Shut down automatically if short circuit occurs, auto recovers.

Non-load Protection

output Constant Voltage.

SAFETY & EMC

Withstand Voltage

I/P-O/P: 3750Vac

Isolation Resistance

I/P-O/P: 100MΩ/500VDC/25°C/70%RH

Safety Standards

IEC/EN61347-1, IEC/EN61347-2-13

EMC Emission

EN61000-3-2 Class C, IEC61000-3-3

EMC Immunity

EN61000-4-2,3,4,5,6,8,11,  EN61547

Strobe Test Standard

IEEE 1789

OTHERS

Dimension

D43.2×20.5mm(L×W×H)

Packing

PE  bag

Weight(G.W.)

42g±5g

Remarks

1. Difference between pe-c10aa and pe-c10ra: pe-c10aa is 0-10V / 1-10V / PWM dimming, and pe-c10ra is a special dimming for 100k variable resistance 2. The measured parameters are carried out under the input 230V AC environment of 25 degrees 3. Constant current power supply, in the non dimming state, the output current is the maximum set value 4. The voltage connected to the lamp shall be within the marked voltage range of the power supply 5. This product adopts heat conduction silica gel heat dissipation process to balance the internal temperature and ensure the safety and reliability of the product 6. Test distance of signal line: 1.5m2 shielded line, 200m with 40 power supplies. Due to the distance factor, the distance is lengthened, and the number of controls will be reduced. The length of signal line is  The increase will lead to signal attenuation, so the number of controllable lamps will decrease with the increase of control distance



Fatures:

1.0-10v/1-10v Constant Current Dimmable LED Driver

2.Input Voltage: 200V-250V @ 50/60Hz

3.Output Voltage: 25-42Vdc

Digital control output is adopted without stroboscopic

3. Natural air cooling, moisture-proof, heat conduction and silica gel heat dissipation process4. Ultra small volume design

5. Multiple protection function

6. Heat conducting silica gel has high heat dissipation and temperature resistance

7. No Flicker design



Application:

1. Led light source

2. Villa intelligent lighting

3. Wireless intelligent lighting system can be accessed

4. Museum lighting

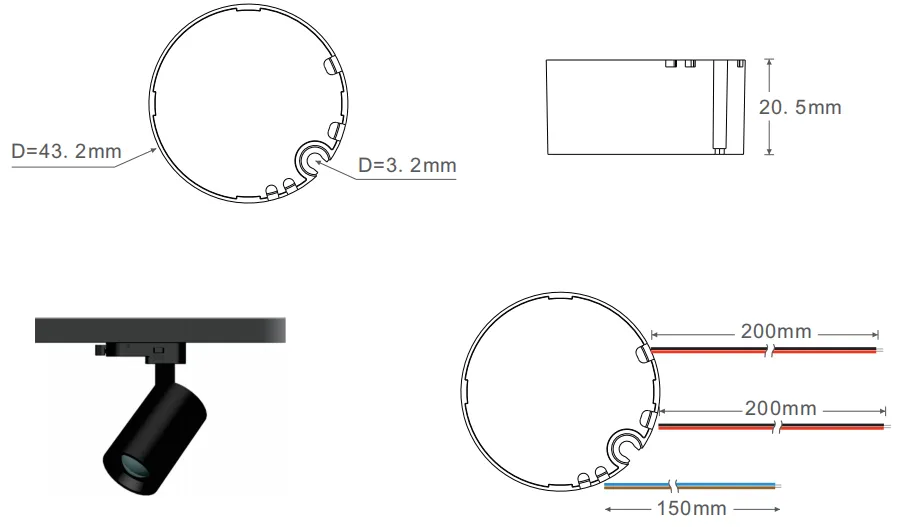

Dimensions :

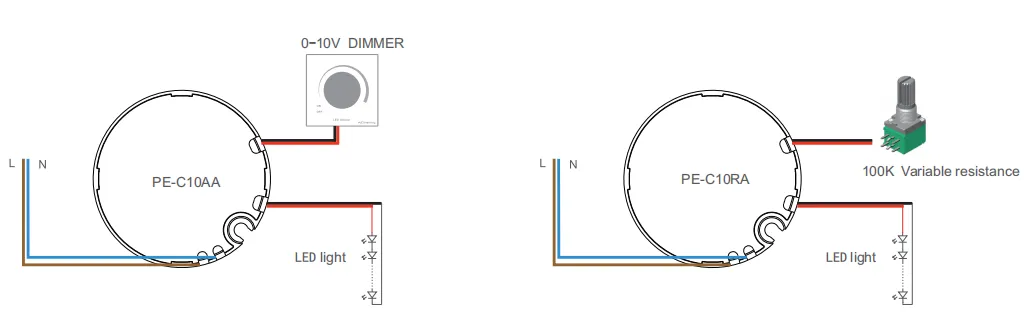

Wiring:

Instructions for use:

The input terminal of the product is connected with AC live line L and zero line n, and the output terminal is wired according to the product identification. Pay attention to the positive and negative poles.

1. When using this power supply, please pay attention to distinguish the input end and output end. Please wire correctly and power on only after checking.

2. Please connect the load at the DC output first, confirm that it is correct, and then connect the power supply.

3. The input voltage range of the product is ac20-250v, which is used within the specified load range and the ambient temperature is - 20 to + 55 , In the environment that meets the service conditions of the product,

the product enjoys a 3-year free warranty. Solutions to common problems during use:

1. The product does not work when powered on: 1. Check whether the pressure line is connected properly,

2. Whether the signal control line is correct,

3. Whether the input and output are connected incorrectly

4. Check whether the signal line is short circuited (whether the signal light can be turned on when disconnected).

2. Since the power supply is controlled by low-voltage line number, shielded signal lines shall be used as much as

possible in the actual use to ensure the control quantity and distance.



Difference between 0-10V and 1-10V:

The input terminal of the product is connected with AC live line L and zero line n, and the output terminal is wired according to the product identification. Pay attention to the positive and negative poles.

1. When using this power supply, please pay attention to distinguish the input end and output end. Please wire

correctly and power on only after checking.

2. Please connect the load at the DC output first, confirm that it is correct, and then connect the power supply.

3. The input voltage range of the product is ac20-250v, which is used within the specified load range and the ambient temperature is - 20 to + 55 ,

In the environment that meets the service conditions of the product, the product enjoys a 3-year free warranty.

Solutions to common problems during use:

1. The product does not work when powered on: 1. Check whether the pressure line is connected properly,

2. Whether the signal control line is correct,

3. Whether the input and output are connected incorrectly

4. Check whether the signal line is short circuited (whether the signal light can be turned on when disconnected).

2. Since the power supply is controlled by low-voltage line number, shielded signal lines shall be used as much

as possible in the actual use to ensure the control quantity and distance.
