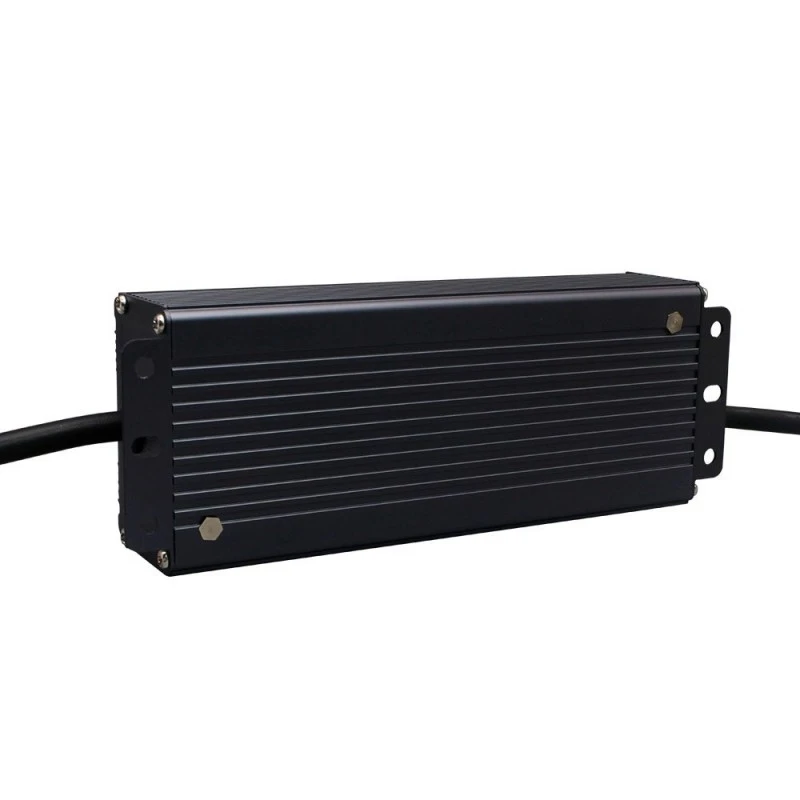

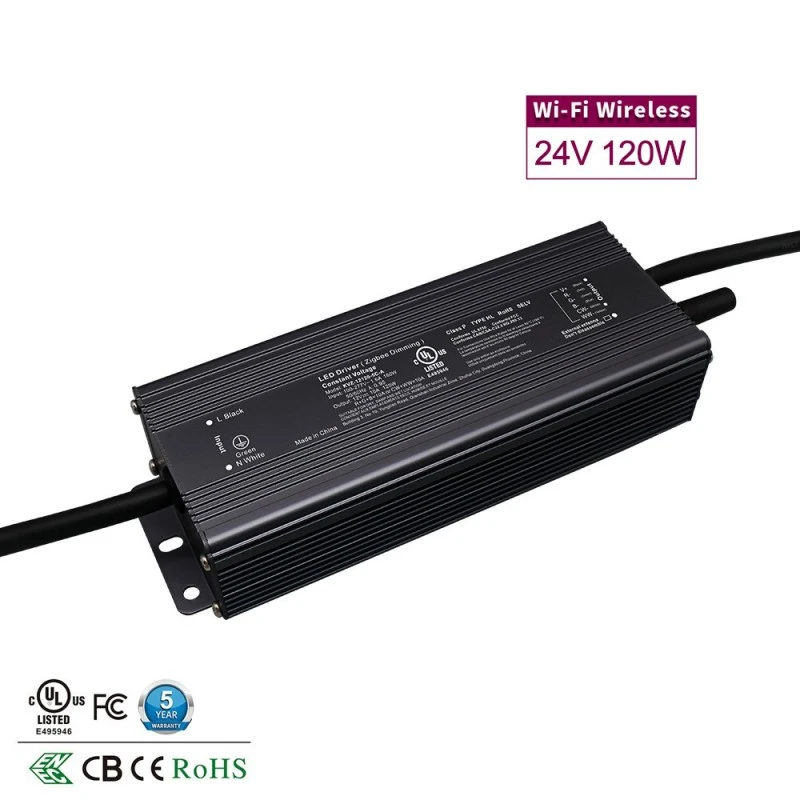

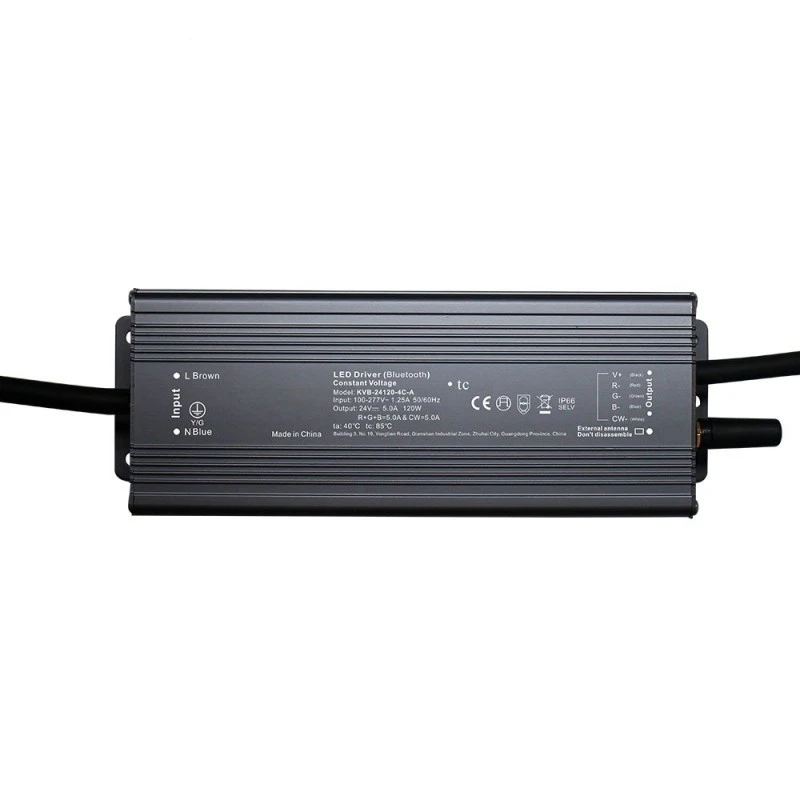

China Tuya Zigbee Wireless Dimming Constant Voltage 120W LED Driver Suppliers, Manufacturers - Factory Direct Price

Product Details

Why Choose Starwell?

As a premier manufacturer and supplier based in China, Starwell is committed to delivering quality Tuya Zigbee Wireless Dimming Constant Voltage 120W LED Driver, which is designed for intelligent LED lighting systems that require high power output, stable wireless control, and flexible lighting management. Whether you require products in stock for immediate shipment or bulk orders for large-scale projects, our factory ensures consistent CE certified quality, robust supply chain capabilities, and competitive pricing for global clients.

Key Features

1. Dual-Channel Independent Control

Unleash your design creativity with our unique dual-channel independent output architecture. Unlike traditional single-channel drivers, this 120W unit allows you to manage two separate LED circuits or groups of lamps simultaneously from a single device.

Flexibility: Independently control brightness and on/off for different zones (e.g., main lighting vs. accent lighting, upper vs. lower cabinet lighting).

Design Freedom: Create layered lighting effects in luxury residences or dynamic displays in commercial spaces with ease.

2. Advanced Zigbee 3.0 Smart Interconnection

Deeply integrated with the Tuya Smart ecosystem, this Tuya Zigbee Wireless Dimming Constant Voltage 120W LED Driver utilizes the latest Zigbee 3.0 communication protocol for seamless, two-way communication.

Ecosystem Compatibility: Works flawlessly with Amazon Alexa, Google Home, and other Tuya-enabled devices.

Voice & App Control: Enjoy hands-free voice commands and smooth remote management via the mobile APP.

Automation: Create complex scenes and schedules, integrating motion sensors or timers for an energy-efficient, automated environment.

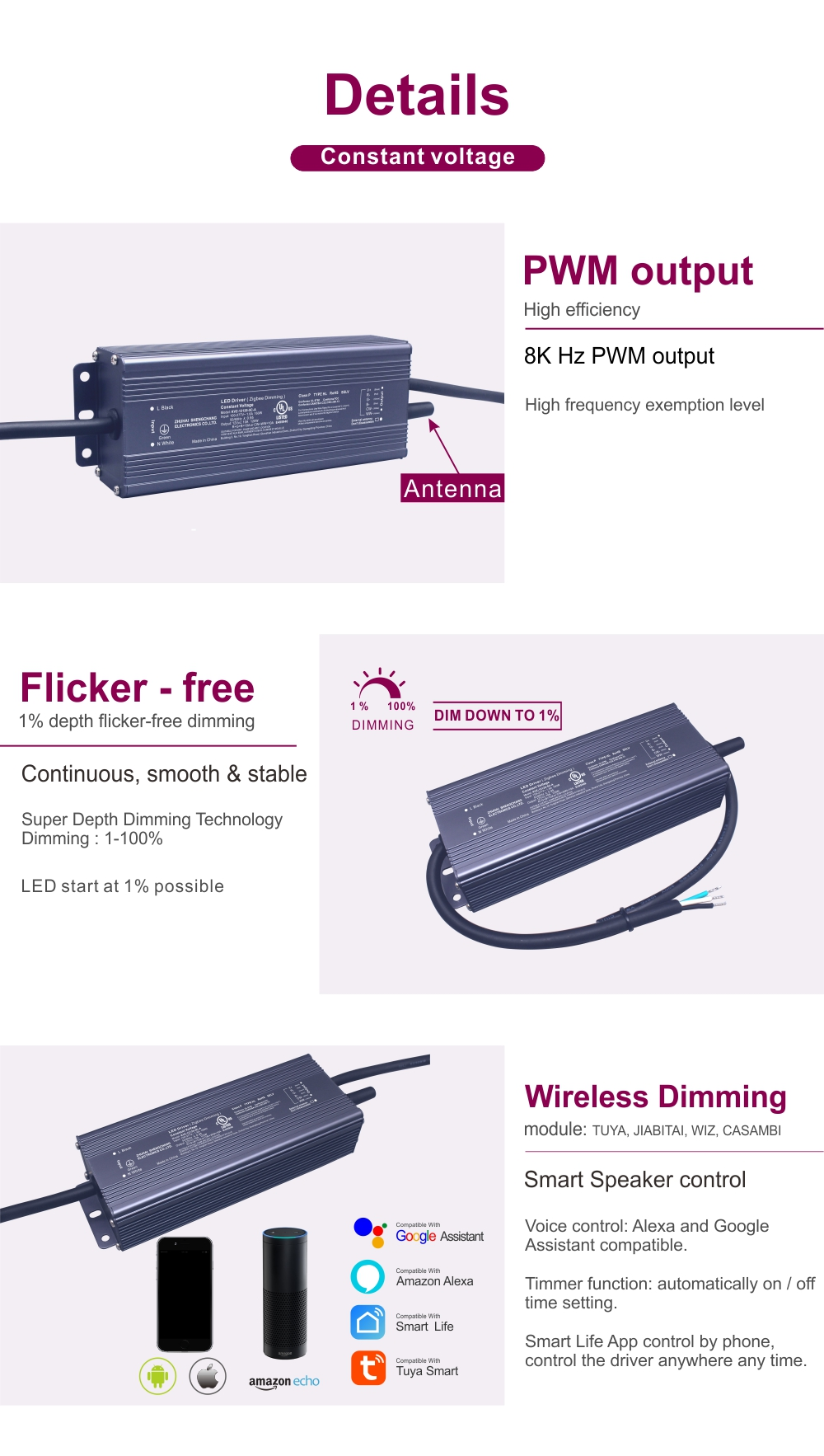

3. HIgh Dimming Performance

Experience flicker-free illumination across the entire range.

Dimming Range: Smooth, precise adjustment from 0.1% to 100%.

Visual Comfort: Ultra-deep dimming protects eye comfort during nighttime and provides vibrant brightness for parties, all while extending the lifespan of your LED fixtures.

4. Robust & Reliable Engineering

Designed for demanding environments, this Tuya Zigbee constant voltage 24V led driver combines performance with durability.

High Efficiency: Up to 89% efficiency and a Power Factor of ≥0.95.

Wide Voltage Input: Accepts universal input ranging from 100-277V AC.

IP67 Protection: Full protection aluminum housing is dustproof and waterproof, making it suitable for dry, damp, or wet locations.

Safety Features: Built-in protections against short circuit, overload, and over temperature.

Thermal Management: Excellent heat dissipation via free air convection ensures long-term reliable operation.

Specification

Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor(Typ.)@ full load	PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.90@277VACF≥0.98
	THD(Typ.)@ full load	<10%
	Efficiency(Typ.)@ full load	88%@120VAC 90%@230VAC/277VAC
	AC Current(Max.)	1.6A
	Inrush Current (Typ.)	60A (Twidth 164us measured at 50% I peak, COLD START, 230VAC)
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recover automatically after fault condition is removed
	Over Load	≤120% ,hiccup mode, recover automatically after fault condition is removed
	Over temperature	100℃±10℃ Reduce output voltage, recovers automatically after temperature goes down
	Protection Class	Ⅱ
