What is a 60W TUYA Zigbee CCT Dimmable LED Driver

Starwell factory's quality 60W TUYA Zigbee CCT Dimmable LED Driver is a smart constant-voltage LED power supply designed to power and control tunable white LED lighting systems. It uses the Zigbee 3.0 wireless protocol to connect with the TUYA smart ecosystem, enabling remote lighting control through mobile apps or voice assistants.

This type of driver allows users to adjust brightness and color temperature (CCT) smoothly from warm white to cool white while maintaining stable power output for LED fixtures such as panels, strip lights, and downlights.

Key Features

1. Smart Zigbee Control

The driver integrates Zigbee 3.0 communication, allowing wireless control through the TUYA Smart App. Users can manage lighting scenes, scheduling, and brightness adjustment through smartphones or smart home systems.

2. Smooth Dimming and CCT Adjustment

The 60W TUYA Zigbee CCT Dimmable LED Driver supports 0–100% flicker-free dimming and tunable white lighting. Users can adjust brightness and color temperature to match different lighting environments.

3. Stable Electrical Performance

Input Voltage: 100–277VAC

Power Factor: PF ≥ 0.98

Efficiency: Up to 90%

PWM Output Frequency: 4KHz

These parameters help maintain stable lighting output and energy efficiency for long-term operation.

4. NFC Configuration Function

Built-in NFC technology allows installers to adjust output voltage and configure device addresses quickly during installation or maintenance.

5. Safety Protection and Certifications

The 60W TUYA Zigbee CCT Dimmable LED Driver is designed with multiple protection mechanisms to support stable operation.

Protection functions include:

Short circuit protection

Overload protection

Over-temperature shutdown

Automatic recovery after fault removal

The product complies with international safety and EMC standards including:

EN61347 safety standards

UL8750 requirements

CE, RoHS, ENEC, SAA certifications

These certifications help ensure compatibility with global lighting systems and regulatory requirements.

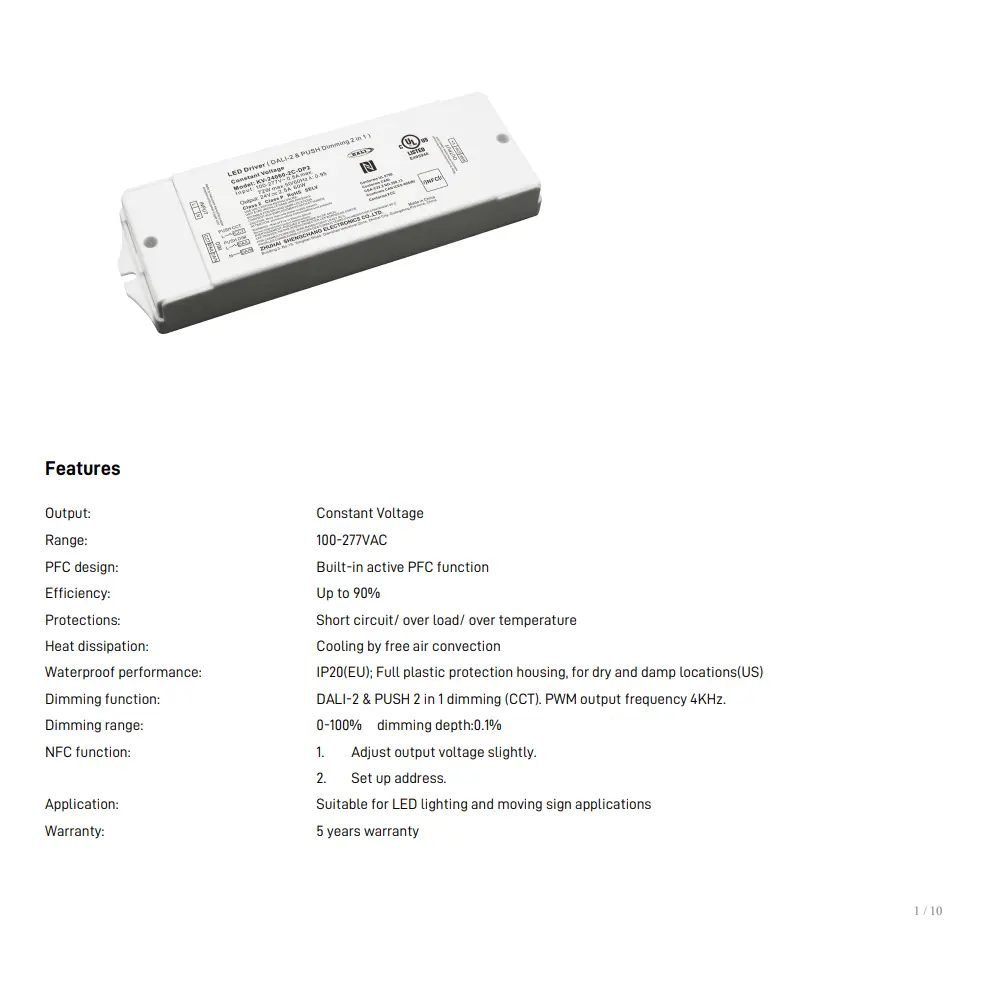

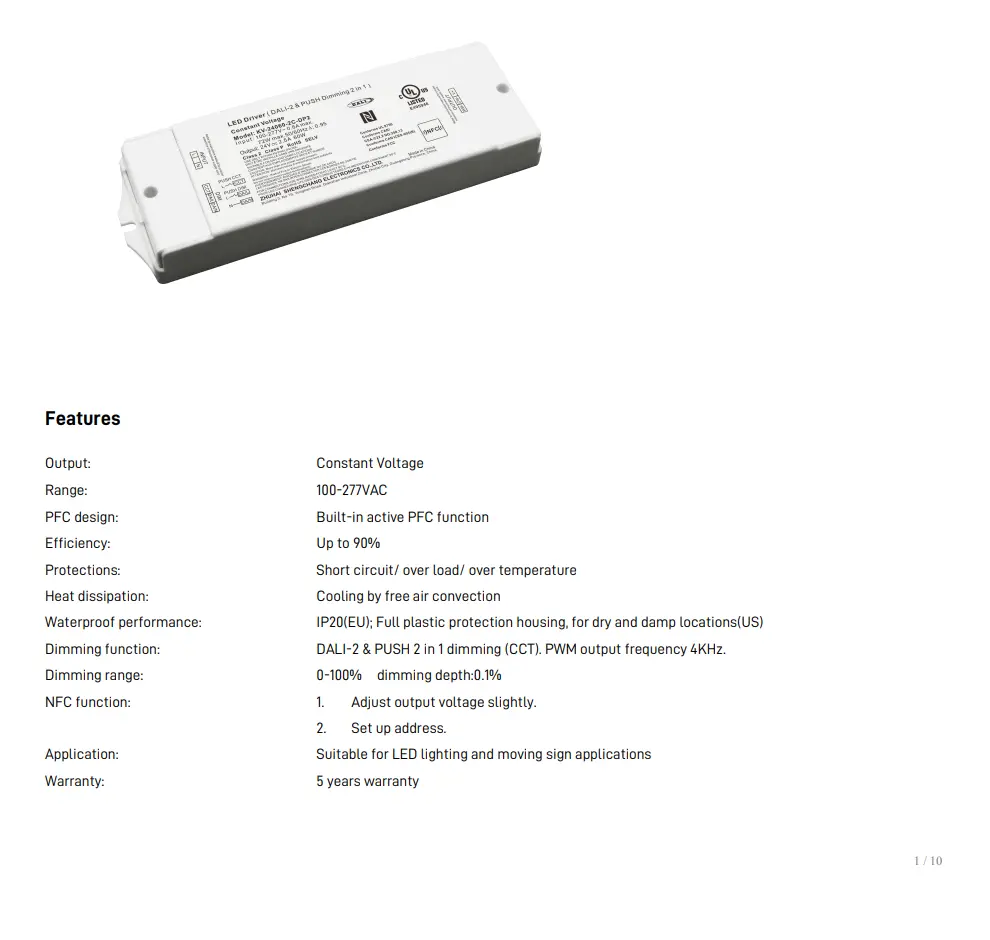

More Detail

Constant Voltage Range: 100-277VAC

PFC design: Built-in active PFC function

Efficiency: Up to 90%

Protections: Short circuit/ over load/ over temperature

Heat dissipation: Cooling by free air convection

Waterproof performance: IP20(EU); Full plastic protection housing, for dry and damp locations(US)

Dimming function: DALI-2 & PUSH 2 in 1 dimming (CCT). PWM output frequency 4KHz.

Dimming range: 0-100%

dimming depth:0.1%

NFC function: 1. Adjust output voltage slightly. 2. Set up address.

Application: Suitable for LED lighting and moving sign applications

Warranty: 5 years warranty

Product Application

The 60W TUYA Zigbee CCT Dimmable LED Driver is widely used in indoor lighting installations that require smart control and dimming functions.

Typical applications include:

LED panel lights

LED strip lighting

Downlights and ceiling lights

Smart home lighting systems

Commercial lighting installations

Its compact structure and flame-retardant housing make installation convenient in various lighting fixtures.

Technical Highlights

Main electrical specifications include:

Rated Power: 60W

Output Voltage Options: 12V / 24V / 36V / 48V

Rated Current: 5A / 2.5A / 1.67A / 1.25A

Operating Temperature: -40°C to +60°C

Efficiency: Up to 90%

Waterproof Rating: IP20

The driver uses natural air convection cooling and a fully enclosed plastic housing suitable for dry or damp indoor environments.

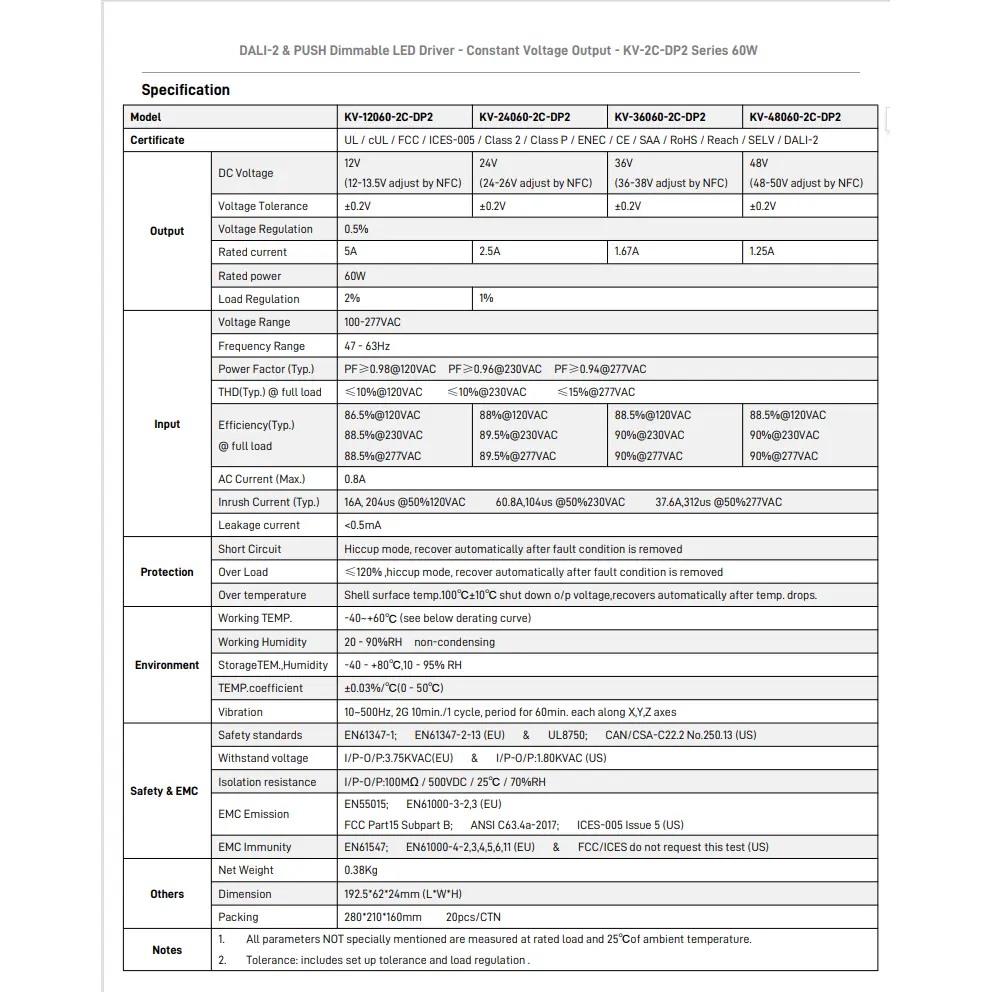

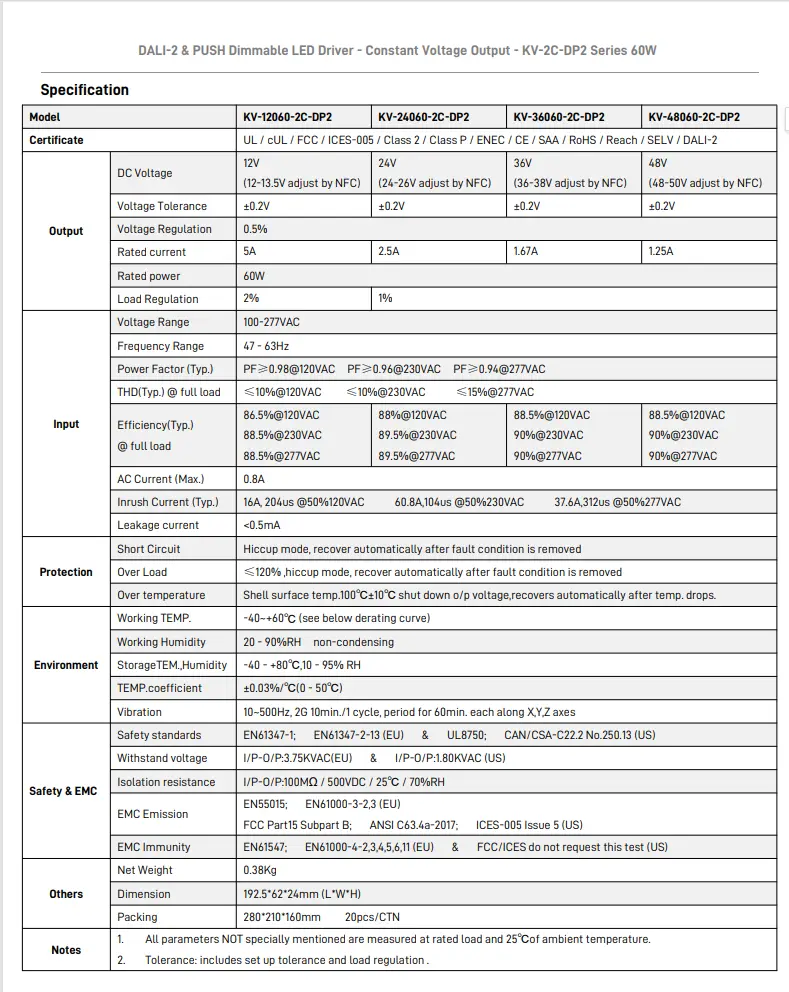

Model		KV-12060-2C-DP2	KV-24060-2C-DP2	KV-36060-2C-DP2	KV-48060-2C-DP2
Certificate		UL / cUL / FCC / ICES-005 / Class 2 / Class P / ENEC / CE / SAA / RoHS / Reach / SELV / DALI-2
Output	DC Voltage	12V (12-13.5V adjust by NFC)	24V (24-26V adjust by NFC)	36V (36-38V adjust by NFC)	48V (48-50V adjust by NFC)
	Voltage Tolerance	±0.2V	±0.2V	±0.2V	±0.2V
	Voltage Regulation	0.5%
	Rated current	5A	2.5A	1.67A	1.25A
	Rated power	60W
	Load Regulation	2%	1%
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor (Typ.)	PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.94@277VAC
	THD(Typ.) @ full load	≤10%@120VAC ≤10%@230VAC ≤15%@277VAC
	Efficiency(Typ.) @ full load	86.5%@120VAC 88.5%@230VAC 88.5%@277VAC	88%@120VAC 89.5%@230VAC 89.5%@277VAC	88.5%@120VAC 90%@230VAC 90%@277VAC	88.5%@120VAC 90%@230VAC 90%@277VAC
	AC Current (Max.)	0.8A
	Inrush Current (Typ.)	16A, 204us @50%120VAC 60.8A,104us @50%230VAC 37.6A,312us @50%277VAC
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recover automatically after fault condition is removed
	Over Load	≤120% ,hiccup mode, recover automatically after fault condition is removed
	Over temperature	Shell surface temp.100℃±10℃ shut down o/p voltage,recovers automatically after temp. drops.
Environment	Working TEMP.	-40~+60℃ (see below derating curve)
	Working Humidity	20 - 90%RH non-condensing
	StorageTEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1; EN61347-2-13 (EU) & UL8750; CAN/CSA-C22.2 No.250.13 (US)
	Withstand voltage	I/P-O/P:3.75KVAC(EU) & I/P-O/P:1.80KVAC (US)
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015; EN61000-3-2,3 (EU) FCC Part15 Subpart B; ANSI C63.4a-2017; ICES-005 Issue 5 (US)
	EMC Immunity	EN61547; EN61000-4-2,3,4,5,6,11 (EU) & FCC/ICES do not request this test (US)
Others	Net Weight	0.38Kg

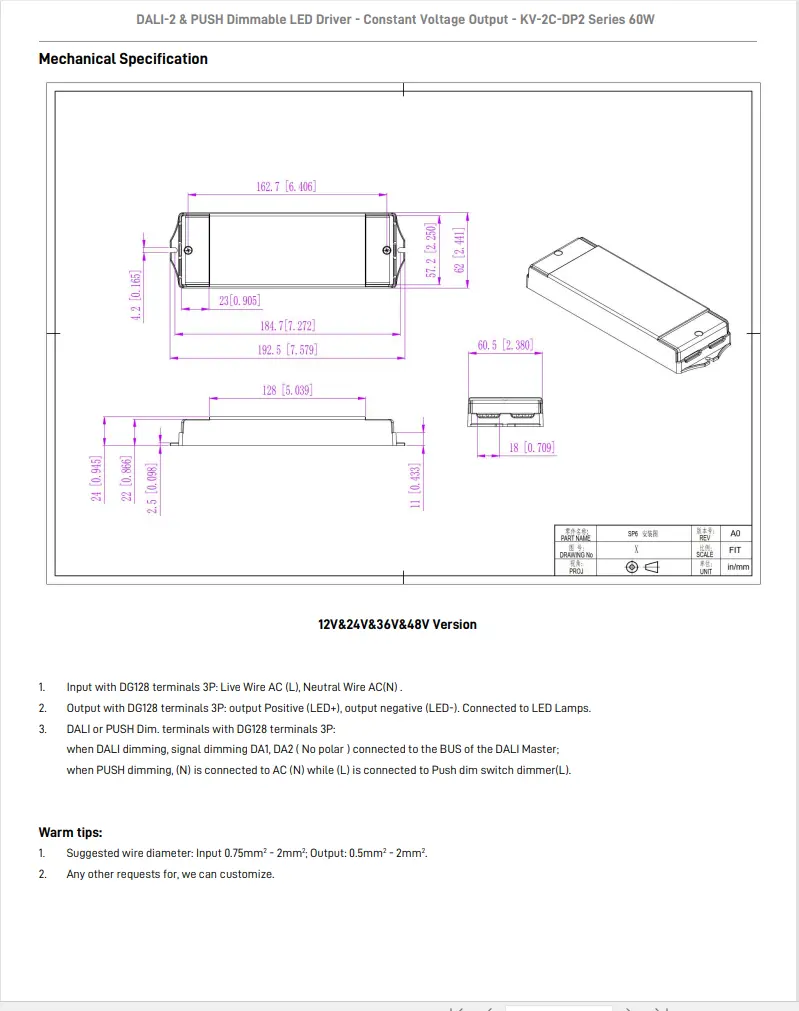

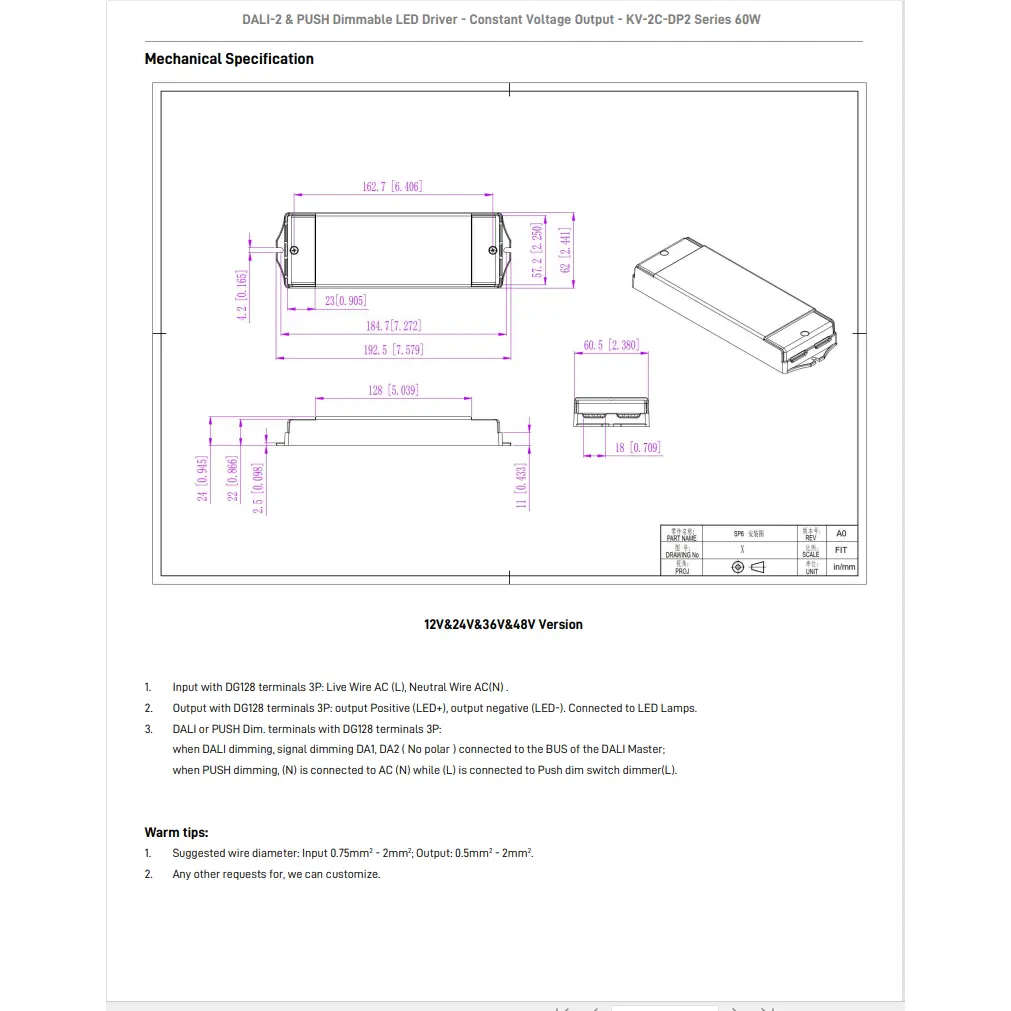

	Dimension	192.56224mm (LWH)
	Packing	280210160mm 20pcs/CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance and load regulation .
