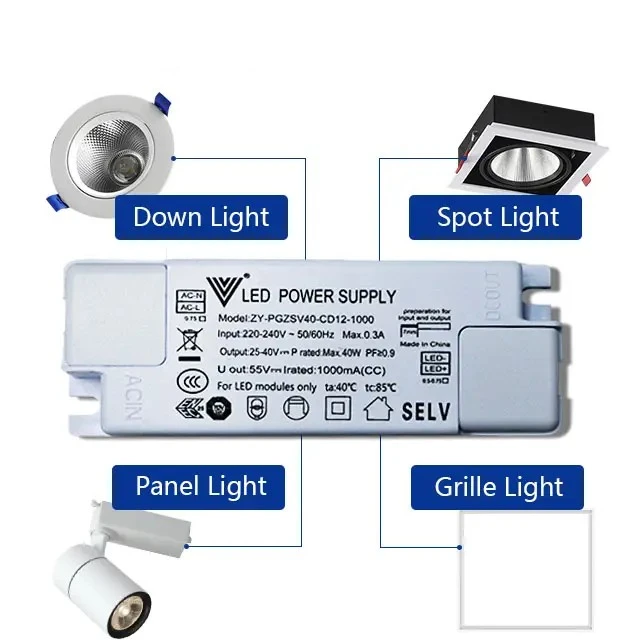

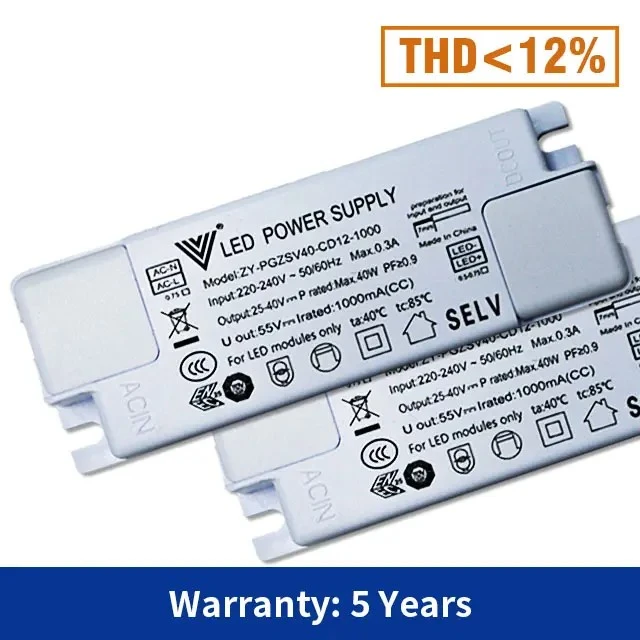

DC25V-80V 300MA 500MA Constant Current Led Driver
Wholesale quality DC25V-80V 300MA 500MA Constant Current Led Driver, which manufactured by Starwell, a professional manufacturer in China. We offer cheap price and good quality Constant Current Led Driver.
Send Inquiry
Product Details
This DC25V-80V 300MA 500MA Constant Current Led Driver offered by leading China manufacturer Starwell, is a professional power supply module customized for DC LED lighting equipment. It supports 300MA and 500MA dual-mode precision constant current output, fitting various specifications of LED lamps. Adopting high-precision constant current technology, it delivers stable current output, effectively avoiding light flicker and brightness attenuation to maintain long-term stable LED lighting performance. Featuring a 25V to 80V ultra-wide DC voltage input range, it adapts to diverse power supply environments. Equipped with comprehensive safety protections, it effectively prevents damages from over-voltage, over-current, over-heat and short-circuit faults.
With low power consumption and high conversion circuit structure, this energy-efficient driver features strong anti-interference capability and silent operation. Adopting mature and durable craftsmanship, it supports continuous long-hour operation, ideal for commercial, industrial and outdoor landscape DC LED lighting systems.
Product Parameter
|
Parameter |
Details |
|
Model Number |
ZY-PGZSV40-CE18 |
|
Brand Name |
OEM ODM |
|
Place of Origin |
Guangdong, China |
|
Input Voltage |
220-240V AC |
|
Output Voltage |
42-60V DC |
|
Output Power |
25-40W |
|
Output Current |
250-660mA |
|
Output Type |
Single |
|
Output Frequency |
47-63Hz |
|
Conversion Efficiency |
89% |
|
Power Factor (PFC) |
0.95 |
|
Case Material |
Plastic |
|
Product Weight |
0.2kg |
|
Warranty Period |
5-Year |
|
Safety Certification |
CE/CB/TUV/SAA/CCC |
|
Core Protection |
Lightning Resistance |
|
Primary Application |
LED Lighting / LED Driver |
|
Supporting Services |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad, etc. |
|
|
|
Item |
|
|
|
|
|
Output |
Output Voltage |
10~42VDC |
|
|
|
|
Output Current |
2×(150~450)mA |
|
|
|
|
Output Power |
Max. 12W |
|
|
|
|
Max Output Voltage |
48VDC |
|
|
|
|
Dimming Range |
0~100% |
|
|
|
|
PWM Frequency |
4KHz |
|
|
|
|
Current Accuracy |
±5% |
|
|
|
Input |
Input Voltage Range |
100~240VAC |
|
|
|
|
Frequency Range |
50/60Hz |
|
|
|
|
Efficiency |
80% |
|
|
|
|
Input Current |
0.35A Max. |
|
|
|
|
Anti Surge |
L-N: 1.2KV |
|
|
|
|
Startup time |
1S/230VAC |
|
|
|
|
Inrush Current |
Cold start 14.5A at 230VAC |
|
|
|
|
Leakage Current |
< 0.5mA/230VAC |
|
|
|
|
No Load Power |
<2W |
|
|
|
Protection |
Overload |
Hiccup,recovers automatically after fault condition is removed |
|
|
|
|
Short circuit |
Hiccup,recovers automatically after fault condition is removed |
|
|
|
Environment |
Working Temperature |
-20℃~50℃ |
|
|
|
|
Tcase Max |
80℃ |
|
|
|
|
Working Humidity |
20%~90%RH, non-condensing |
|
|
|
|
Storage Temp./Humidity |
-40℃~80℃, 10%~95%RH |
|
|
|
|
Temperature Coefficient |
±0.03%/℃ |0-50%| |
|
|
|
|
Vibration Resistance |
10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min |
|
|
|
|
IP Rating |
IP20 |
|
|
|
Safety&EMC |
Security Specifications |
IEC/EN61347-1, IEC/EN61347-2-13 |
|
|
|
|
Withstand Voltage |
I/P-O/P: 3750VAC |
|
|
|
|
Insulation Resistance |
I/P-O/P: 100M/500VDC/25℃/70%RHΩ |
|
|
|
|
EMC Emission |
EN61000-3-2 Class C, IEC61000-3-3 |
|
|
|
|
EMC Immunity |
EN61000-4-2.3.4.5.6.8.11, EN61547 |
|
|
|
|
Certications |
CE |
Quick charger Features:
1. Ultra-wide DC 25V-80V input voltage, highly compatible with most DC LED lighting devices;
2. Dual current output modes with 300MA and 500MA precision constant current options for diverse LED lights;
3. High-precision constant current control ensures stable current output without fluctuation, eliminating flicker and uneven brightness;
4. High conversion efficiency and low power loss, saving energy and reducing long-term operating costs;
5. Built-in multi-protection system with over-voltage, over-current, over-heat and short-circuit automatic protection;
6. Industrial-grade circuit design with strong anti-interference performance for complex DC working conditions;
7. Silent operation with no electromagnetic interference, suitable for indoor and outdoor lighting scenarios;
8. Premium components with high temperature and aging resistance, supporting long-term continuous operation;
9. Compact size and simple wiring, flexible for embedded and external installation;
10. Wide application range, compatible with LED strips, panel lights, landscape lights and industrial lighting
Our main customer
Hot Tags: DC25V-80V 300MA 500MA Constant Current Led Driver, China, Manufactures, Suppliers, Factory, In Stock, Bulk, Quality, Classy, CE
