A 12W constant current driver is an electronic device used to regulate and supply a constant current to an electrical load, such as an LED (Light Emitting Diode). It ensures that the load receives a steady and consistent current, regardless of changes in input voltage or load impedance. This type of driver is commonly used in LED lighting applications to maintain stable brightness and extend the lifespan of the LEDs. By providing a constant current, it helps prevent overcurrent or fluctuations that can damage the LED. Constant current drivers are essential for reliable and efficient operation of LED systems.
Starwell 12W constant current led driver Parameter (Specification)
item |
value |
Warranty(Year) |
5-Year |
Lighting solutions service |
Lighting and circuitry design, Project Installation |
Place of Origin |
China |
Brand Name |
STARWELL |
Model Number |
ZY-PGQXV12-ZA12(4-12W) |
Output Power |
7-12W |
Output Type |
Single/Wide |
Output Voltage |
9-40V |
Input Voltage |
220-240V/100-240V |
Output Frequency |
50/60Hz |
output Current |
250-300mA |
Product Name |
LED Panel/Down/Spot/grille Light Power Supply |
PFC |
0.9 |
Shell |
UL94-V0 Resistant Shell |
L*W*H |
95*36*24cm |
Efficiency |
80%(230Vac) |
Lightning protection |
500V |
THD |
<15% |
Certification |
CE/CB/CCC/TUV/SAA |
Starwell 12W constant current led driver Feature And Application
The 12W constant current driver is an essential component used in various lighting applications, particularly for LED (Light Emitting Diode) systems. It is designed to supply a stable and consistent current of 12 watts to ensure optimal performance and longevity of the LEDs. This driver is specifically tailored to meet the power requirements of 12W LED modules or fixtures.
With its compact size and efficient design, the 12W constant current driver finds applications in a wide range of settings. It is commonly used in residential and commercial lighting installations, architectural lighting, display lighting, and even in automotive lighting systems. The driver's ability to deliver a constant current helps maintain uniform brightness, prevents overcurrent, and protects the LEDs from voltage fluctuations.
Whether it's illuminating indoor spaces, accentuating architectural features, or enhancing the visibility of signage, the 12W constant current driver provides reliable and efficient power management for LED lighting solutions. Its versatility and reliability make it an indispensable component for achieving optimal lighting performance in various applications.
MODEL LIST:
(MODEL NO.) | POWER | INPUT AC | OUTPUT-DC | OUTPUT Current (mA) | POWER FACTOR | DIM(LxWxH) | Certificates |
ZY-PGZNLE7-ZD7 | 3-7W |
100-120VAC or 200-240VAC |
9-24V | 175-300 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA |
ZY-PGZNLE7-ZD12 | 3-7W | 25-40V | 75-175 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA | |

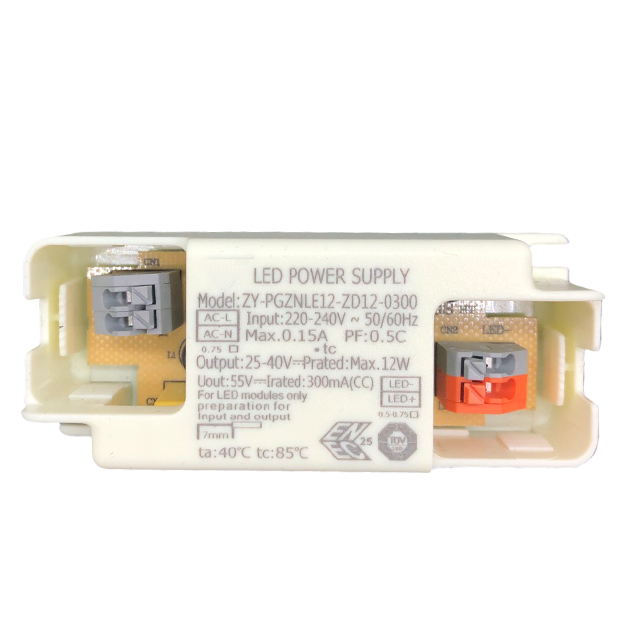

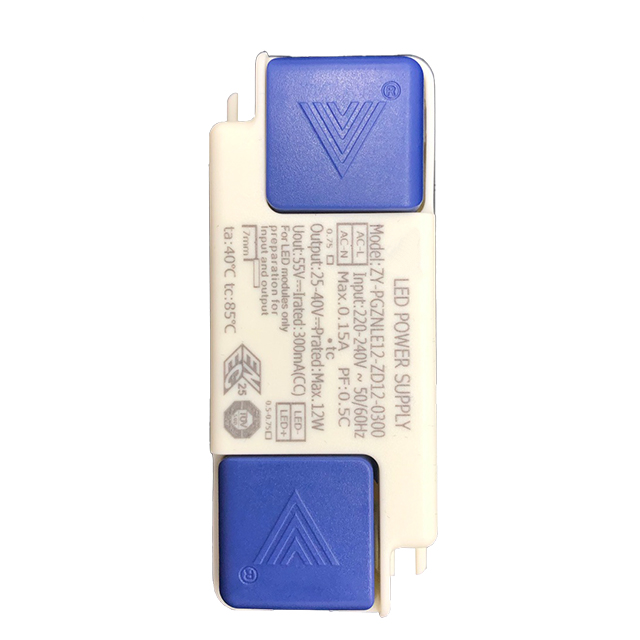

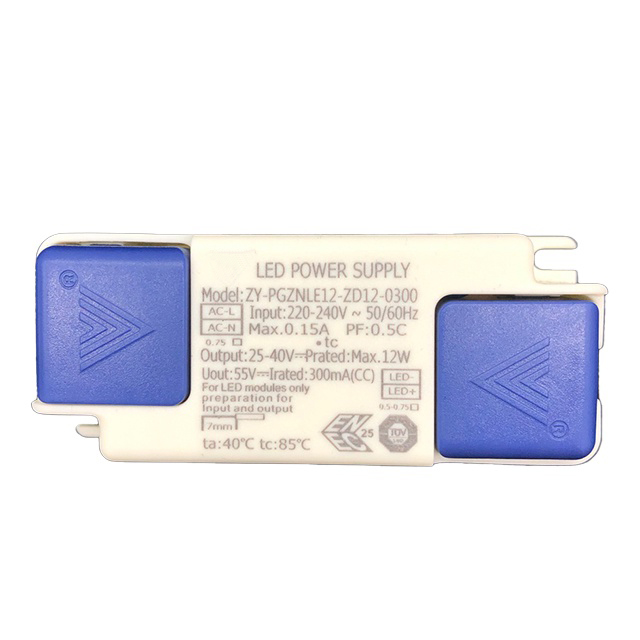

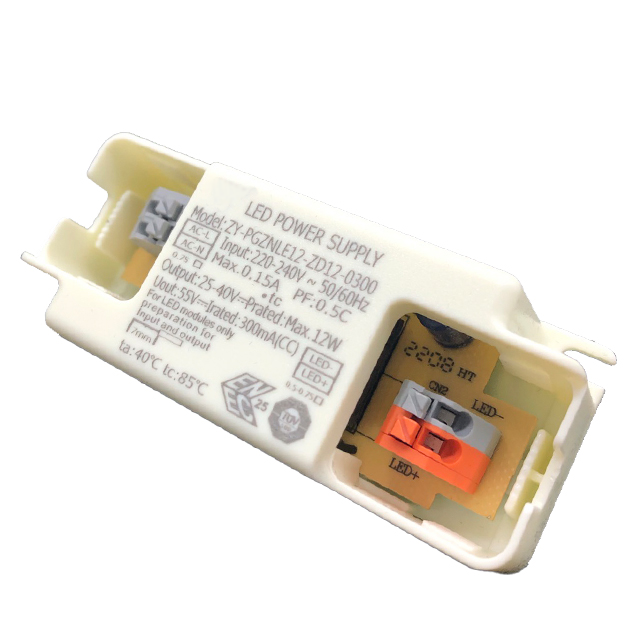

ZY-PGZNLE12-ZD12 | 8-12W | 25-45V | 200-300 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA | |
ZY-PGZNLE15-ZD15 | 8-12W | 25-45V | 175-330 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA | |
ZY-PGZNLE15-ZD12 | 10-15W | 25-40V | 325-375 | 0.5 | 79*33*24 | CE/CB/ENEC/UKCA |
