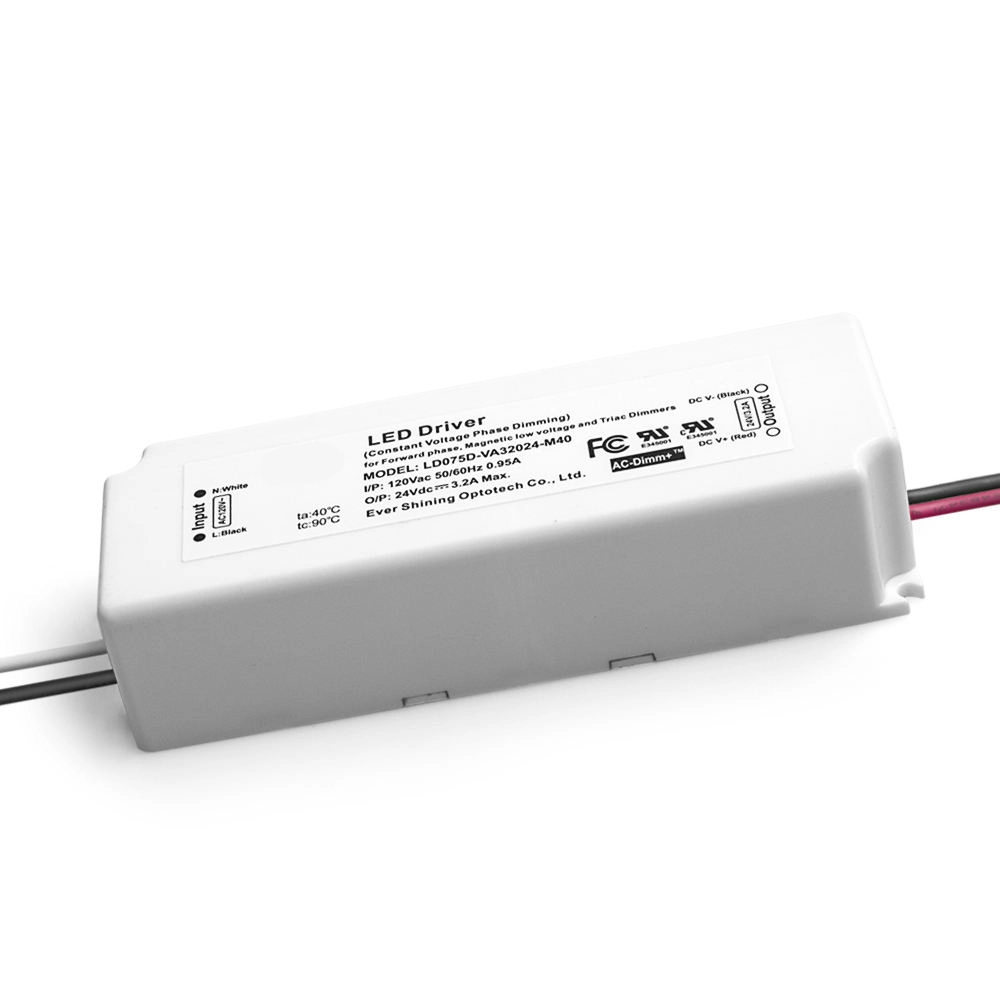

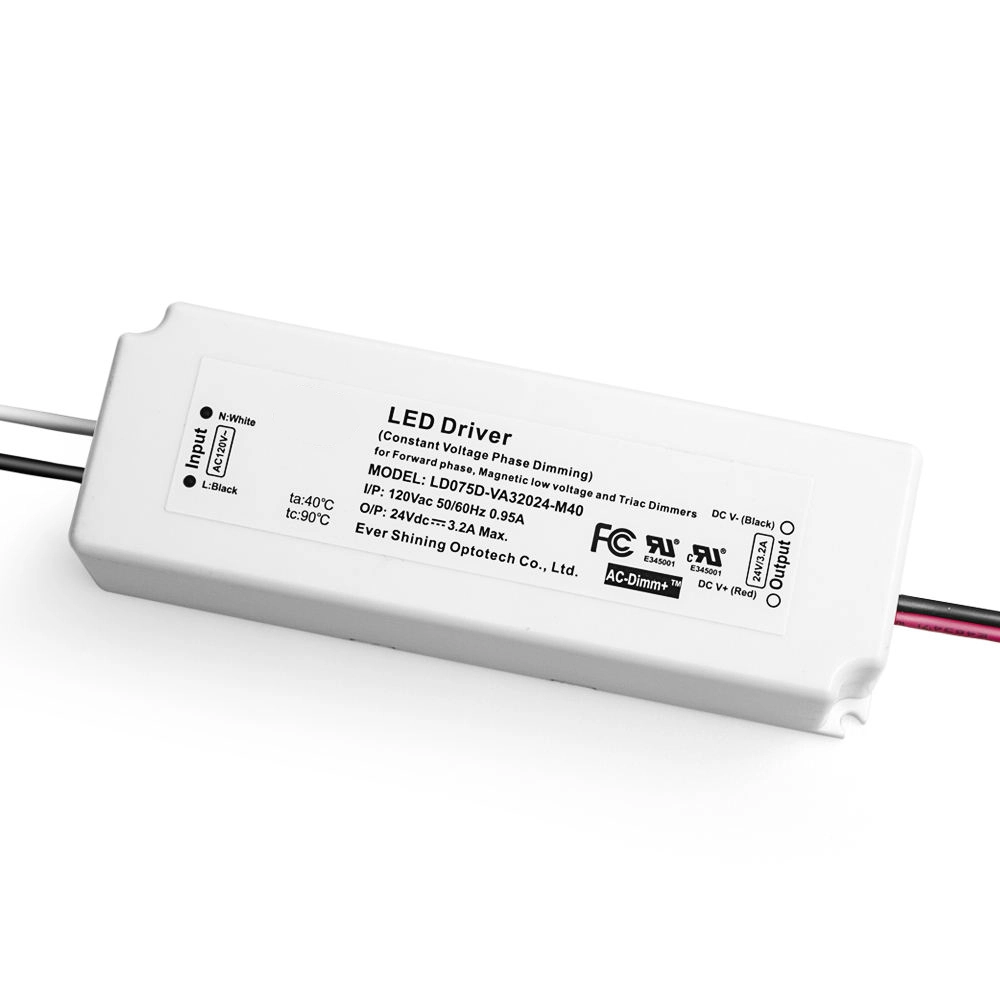

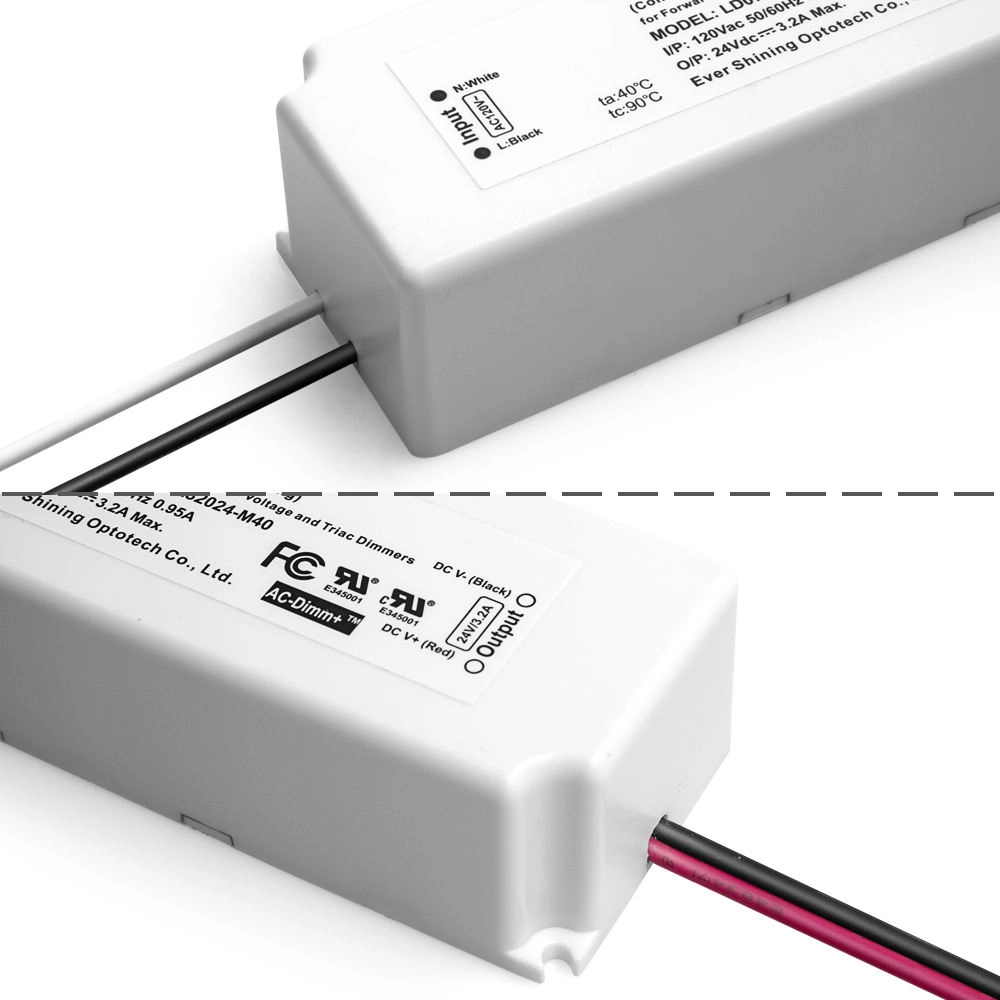

75W Constant Voltage Triac Dimming Led Driver

With years of experience in production 75W Constant Voltage Triac Dimming Led Driver, Starwell can supply a wide range of Led Driver.This high quality 75W Constant Voltage Triac Dimming Led Driver provides a stable DC 12V/24V output and is designed for seamless integration with standard TRIAC/SCR wall dimmers. It features full-range smooth dimming from 100% down to 0%, high PF >0.9, and efficiency >85%. Equipped with over-voltage, over-current, short-circuit, and over-temperature protection, it ensures safe and reliable operation for LED strip lights, module lighting, and signage applications. We mainly export to Brazil, Turkey, and Vietnam, offering full customization, design customization, and sample customization with a customer satisfaction rate of 98.1%.

Send Inquiry

Product Details

Product Specification

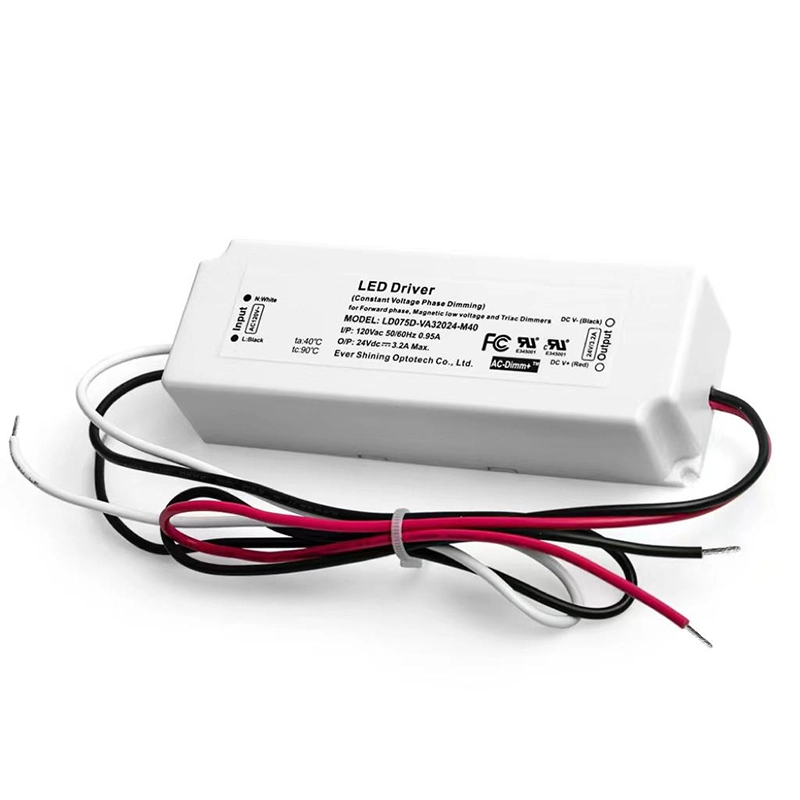

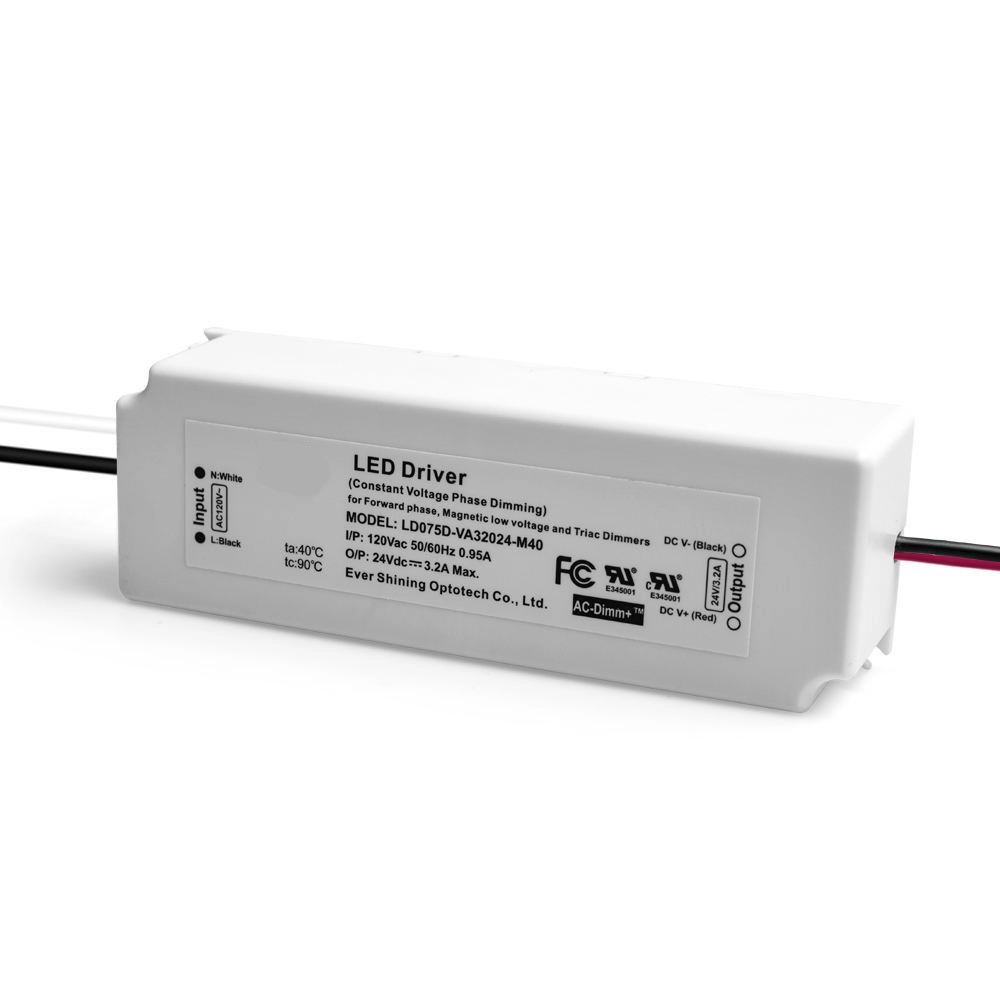

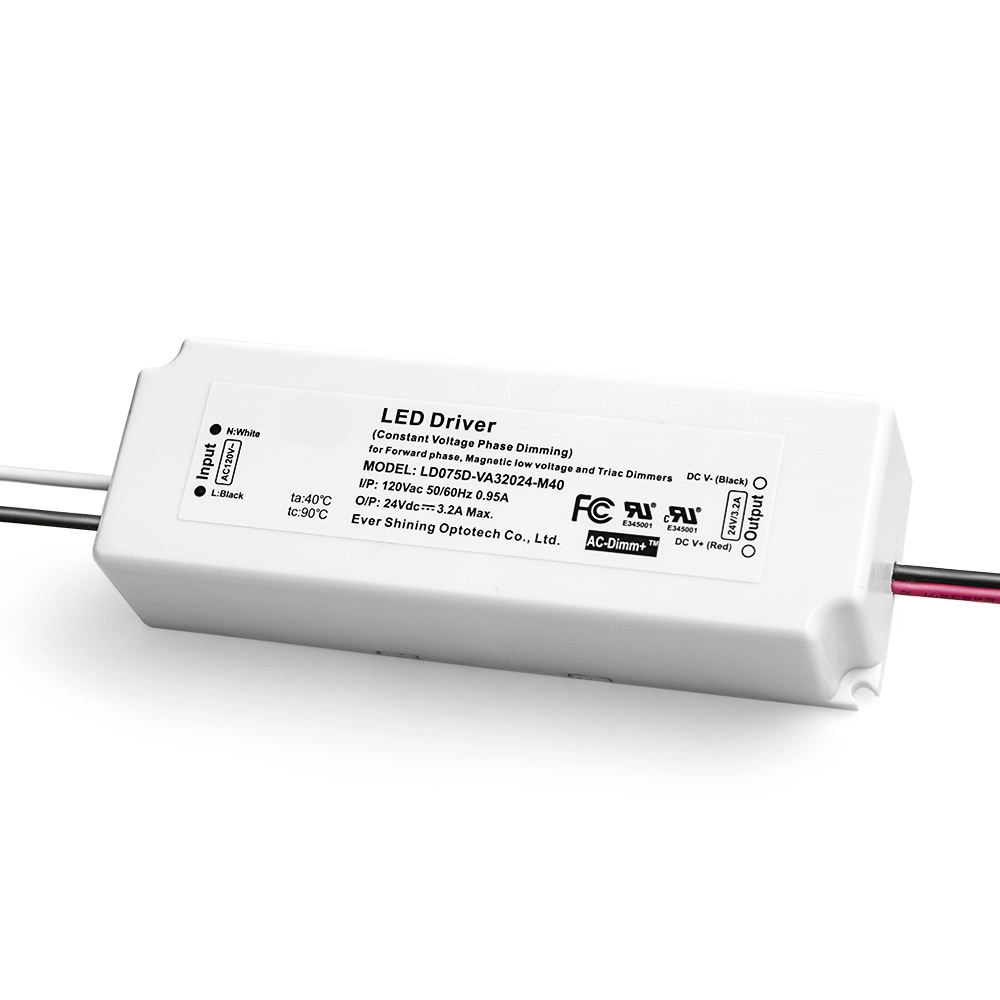

Model No.		LD075D-VA32024-M40
Output	DC Voltage Range	24V
	Rated Current	0~3200mA
	Rated Max. Power	75W
	Dimming Range	5%-100%
	Voltage Tolerance	5%
	Ripple & Noise (Max.) note.2	2.6 Vp-p
	Efficiency note.1 full load	>83%
	Set up Time (Max)	0.5S / 120Vac at full load
Input	Rated Voltage	108 - 132VAC
	Frequency Range	50/60Hz
	AC Current (Max.)	1.3A at 120Vac
	Power Factor	> 0.5 at 120Vac with full load.
	Inrush Current (Max.)	≤ 60A at 120Vac
	Leakage Current	< 1mA / 120Vac
Others	Dimension (LWH)	137.5 * 47 * 32 mm
Others	Packing (LWH) / Carton	340 * 305 * 200 mm; 50pcs/ 19 Kg

As the professional manufacturer, Starwell would like to provide you high quality 75W Constant Voltage Triac Dimming Led Driver, which is a universal 75W TRIAC Dimmable Power Supply for LED Lighting. Enjoy effortless lighting control by pairing this constant voltage driver with the TRIAC dimmers you already have at home. It delivers flicker-free, smooth dimming performance, eliminating compatibility issues. 75w led driver is ideal for creating ambiance with dimmable LED strip lights, cabinet lighting, cove lighting, and low-voltage decorative fixtures.

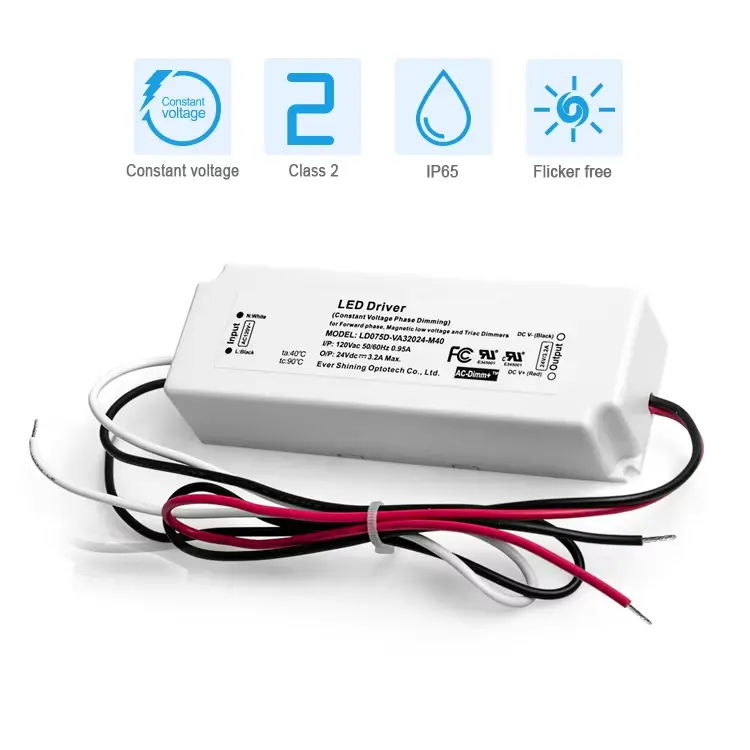

75W Constant Voltage LED Driver with TRIAC Dimming • Compatibility: Works with most standard TRIAC/incandescent-style dimmers. • Stable Output: Constant Voltage (CV) for 12V or 24V LED systems. • Smooth Control: Enables full-range, flicker-free dimming. • Robust Protection: Built-in safeguards against electrical faults. • Typical Use: Perfect for dimmable LED strips, modules, and track lights.

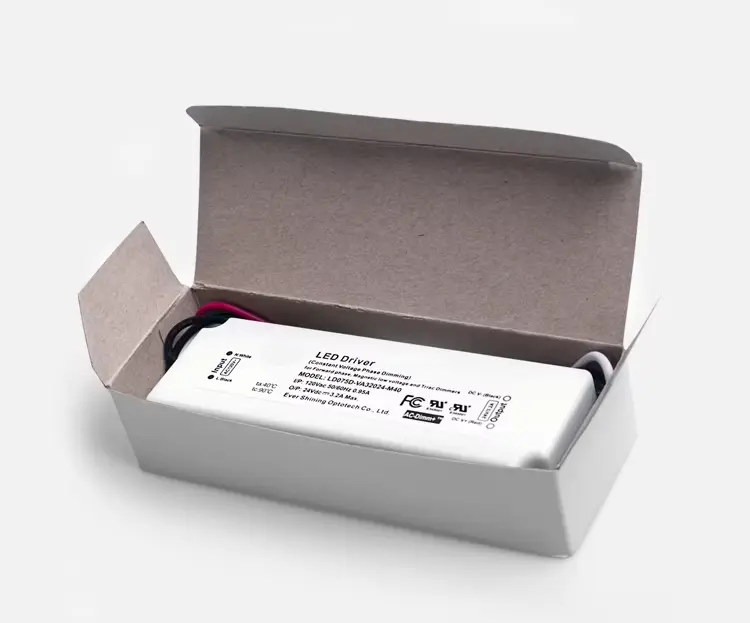

Packing and Shipping:
