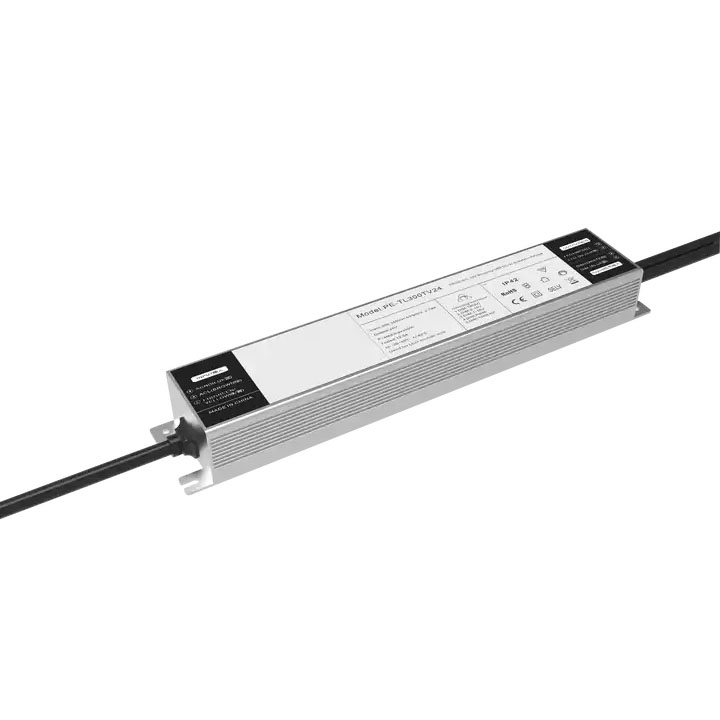

150W Constant Voltage Triac Dimmable LED Driver

Being a proficient manufacturer, STARWELL aims to offer you 150W Constant Voltage Triac Dimmable LED Driver. We promise to provide you with the best after-sale support and prompt delivery.

Send Inquiry

DATASHEET

Product Details

STARWELL is one of leading China 150W Constant Voltage Triac Dimmable LED Driver manufacturers, suppliers and exporters.

PE-TL150TV adopts CPU control and designs a variety of control modes. The dimming is slow on and off. The raw materials used are first-line brands and imported chip ultra deep dimming design,It matches a variety of intelligent dimming systems and dimmers on the market. Aluminum alloy shell, rapid heat dissipation, makes the thermal balance of components more stable.


150W Constant Voltage Triac Dimmable LED Driver Features:

1. Constant voltage triac dimming driver dimming range 0-100%

2. Support leading edge dimmer and leading edge dimming system

3. Support 0-10V / 1-10V / 10V PWM / 100k potentiometer dimming

4. No stroboscopic dimming, super compatible dimming power supply

5. Protection type: short circuit / over current / over voltage

6. Aluminum alloy shell, fast heat dissipation

7. Unique design, slow on and slow off function

8. Suitable for constant voltage LED strip light and other applications

9. Meet SELV safety extra low voltage standard

10. 5years warranty

11. Size: 230*47.5*32mm


150W Constant Voltage Triac Dimmable LED Driver Model list:

Triac & 0/1-10V 2 in 1 constant voltage dimming

Series Model Input Power PF Output Voltage Output Current
PE702
20W
PE702TV12 AC200V-250V 20W 0.6PF 12V 1670mA
PE702TV24 24V 830mA
PE-L80TV
80W
PE-L80TV24 AC200V-250V 80W 0.6PF 24V 3.33A
PE-TL60TV
60W
PE-TL60TV24 AC200V-250V 60W 0.6PF 24V 2.5A
PE-TL60TV12 AC200V-250V 12V 5A
PE-TL100TV
100W
PE-TL100TV24 AC200V-250V 100W 0.6PF 24V 4.2A
PE-TL100TV12 AC200V-250V 12V 8.3A
PE-TL150TV
150W
PE-TL150TV24 AC200V-250V 150W 0.6PF 24V 6.25A
PE-TL120TV12 AC200V-250V 120W 12V 10A
PE-TL250TV
250W
PE-TL250TV24 AC200V-250V 250W 0.6PF 24V 10.5A
PE-TL300TV
300W
PE-TL300TV24 AC200V-250V 300W 0.6PF 24V 12.5A


150W Constant Voltage Triac Dimmable LED Driver Application:

1. Constant voltage lamp strip, hard lamp strip

2. Support leading edge system dimming

3. Villa, high-end hotel and other applications

4. Ultra thin light box


150W Constant Voltage Triac Dimmable LED Driver Specification:


Model PE-TL150TV24 PE-TL150TV12
OUTPUT Output Voltage 24Vdc 12Vdc
Output Current 6.25A Max 10A Max
Max Output Voltage 24Vdc ±0.25v 12Vdc ±0.25v
Output Power 150W Max 120W Max
Strobe Level No flicker
Dimming Range 0~100%,
PWM Dimming Frequency >3600K
INPUT Dimming Interface Triac,0-10V/1-10V/10V PWM/100KResistor DIM Signal control current < 0.1mA
Input Voltage Range 200-250Vac 50/60Hz
Power Factor 0.6
Input Current <1.5A
Efficiency(typ.) 89.6% 88%
Inrush Current(typ.) Cold start80A/376us
Anti Surge L-N: 2kV
Leakage Current <0.5mA/230Vac
ENVIRONMENT Working Temperature ta: 45°C tc: 85 °C
Working Humidity 20 ~ 95%RH, non-condensing
Storage Temp., Humidity -40 ~ 80°C , 10~95%RH
Waterproof grade Ip42
PROTECTION Over Load Protection Shut down the output when rated power≥102%, auto recovers.
Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
Non-load Protection output Constant Voltage.
SAFETY Withstand Voltage I/P-O/P: 3750Vac
Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard IEEE 1789
OTHERS Dimension 230(255)*47.5*32mm(L×W×H)
Packing 288×35×60mm(L×W×H)
Weight(G.W.) 580±10g
EXPLAIN During use, please pay attention to the input and output wiring, and do not reverse the connection. It is forbidden to connect the signal interface with a voltage higher than 15V, otherwise the power supply will be damaged During the use of the power supply, when the load is close to full load, the temperature of the power supply housing is slightly higher. Because of the high heat dissipation efficiency of aluminum, the internal temperature can be ensured Increase service life



Dimensions:

Wiring diagram:
