China 12V 24V Triac Constant Voltage Dimmable LED Driver Suppliers, Manufacturers - Factory Direct Price

Product Details

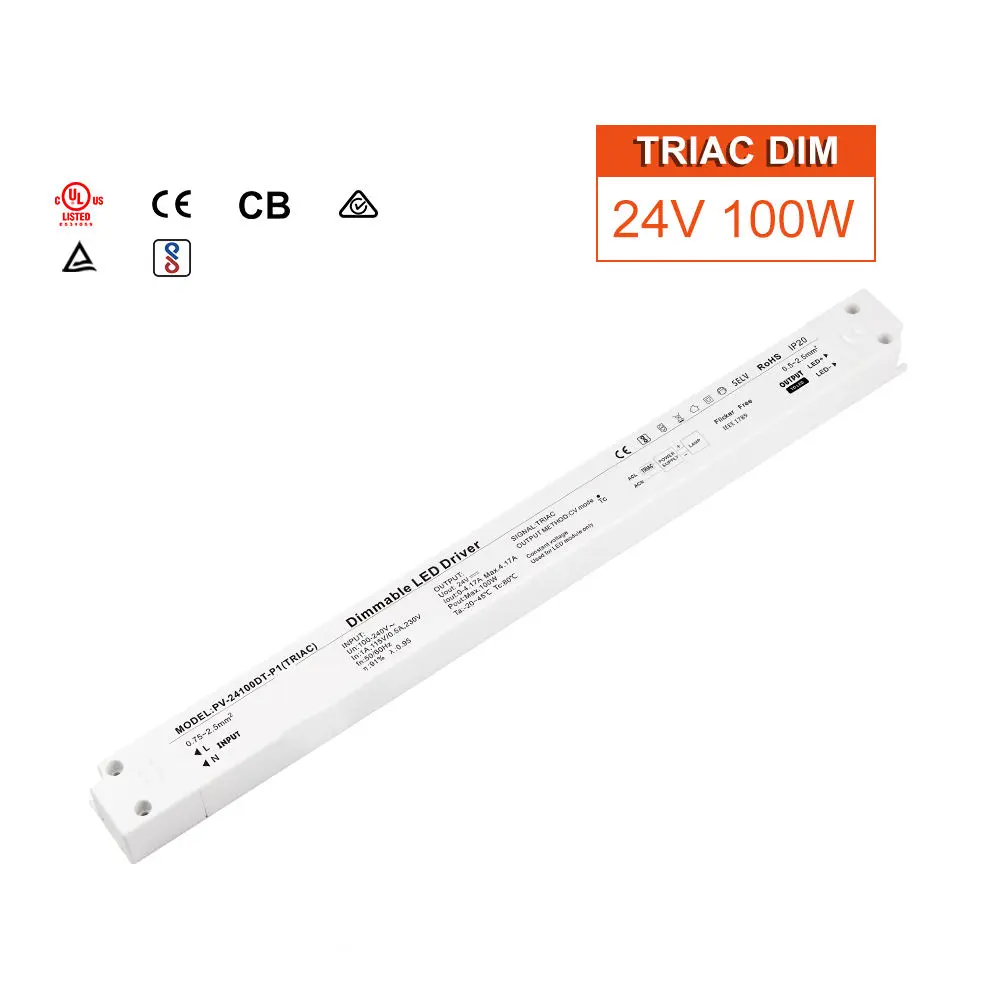

As the professional manufacturer, Starwell would like to provide you high quality 12V 24V Triac Constant Voltage Dimmable LED Driver, which are certified to international standards such as CE /ENEC/SAA/UL/ROHS, this driver meets essential safety and electromagnetic compatibility requirements. It is the dependable choice for installers and integrators seeking a professional-grade, dimmable constant voltage solution for residential and commercial lighting projects.

Features:

1. Dimmable type: TRlAC Dimming

2. Constant Voltage design (CV Mode)

3. Beautiful design, natural and smooth dlmming, Flicker-Free

4. 100% Full Load Aging Test

5. Working temperature: -25°C-+50*C

6. Protection grade: IP20

7. Short circuit protection: remove output, turn-off power supply 15 seconds, then open power supply again, power supply recover

8. Safety standards: EN61347-1，N61347-2-13No minimum loading requirements

9. 3-5 Year warranty

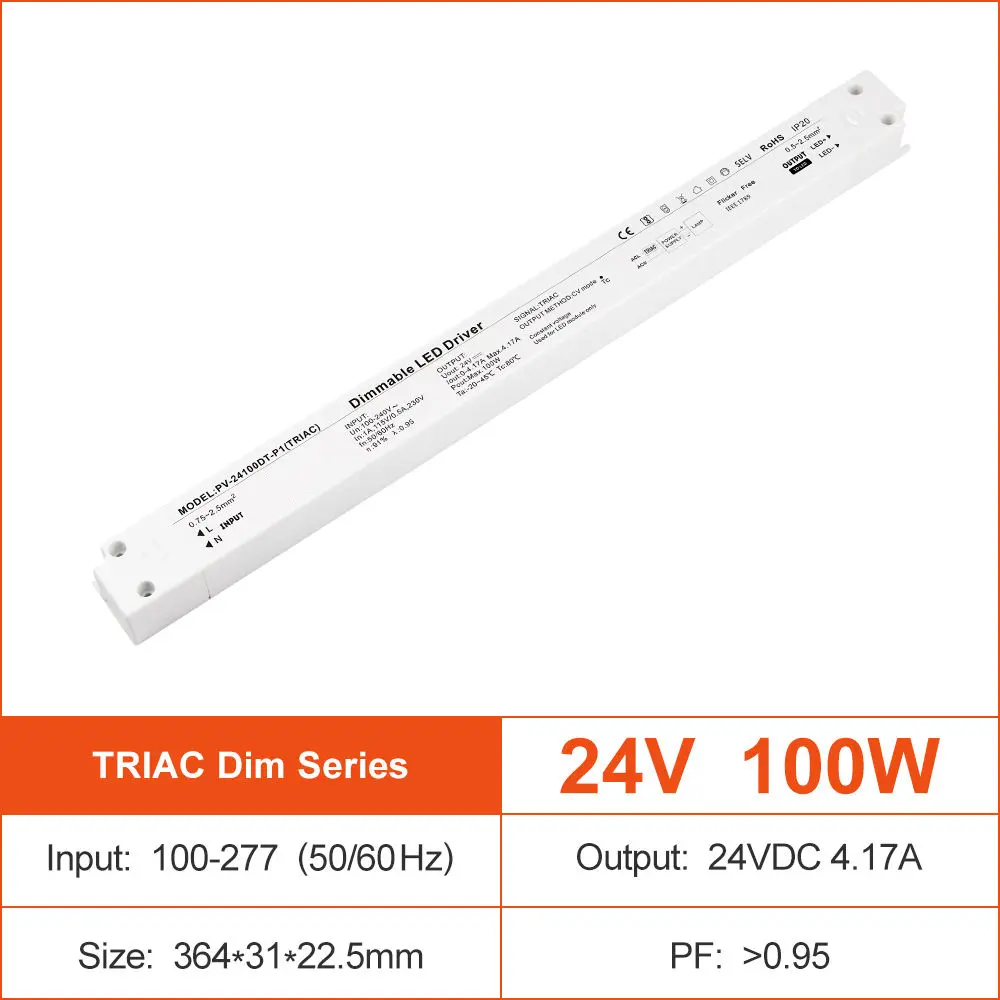

STARWELL factory’s high quality 12V 24V Triac Constant Voltage Dimmable LED Driver is engineered to deliver stable, high-performance power for a wide spectrum of professional and commercial lighting applications. Available in a versatile 20-150W power range with 12V or 24V DC output, this driver seamlessly bridges advanced dimming control with good reliability.

Advanced Performance for Demanding Applications This 24V dimmable led driver is built around technical specifications. It features universal AC input (100-250V), ensuring compatibility with power grids worldwide. With high efficiency of up to 90% and a power factor correction (PFC) often exceeding 0.95, it minimizes energy waste and reduces the load on your electrical system. The core of its functionality is the advanced TRIAC (phase-cut) dimming technology, which enables smooth, flicker-free dimming from 0% to 100% when paired with standard wall dimmers, allowing perfect ambiance creation. For durability in various environments, it is offered in enclosures ranging from standard IP20 to robust IP67-rated aluminum housing, protecting against dust and moisture for both indoor and outdoor use.

STARWELL prioritizes safety and global market access. This product series carries a comprehensive suite of international certifications, including CE, UL, ENEC, SAA, and RoHS, guaranteeing compliance with the strictest safety, quality, and environmental standards. And 3-5 years warranty.

Ideal Application Scenarios This plastic case dimmable driver is the ideal power solution for architects, electricians, and lighting designers. It is perfectly suited for:

Dimmable LED Strip Lighting: Creating dynamic accent and ambient lighting in coves, shelves, and retail displays.

Commercial & Architectural Lighting: Powering sophisticated lighting systems in offices, hotels, museums, and building facades.

Outdoor & Landscape Lighting: Providing reliable performance for garden lights, pathway illumination, and waterproof signage.

Choose the STARWELL TRIAC Dimmable LED Driver for a powerful, certified, and versatile foundation that brings your professional lighting visions to life with flawless control and dependable operation.

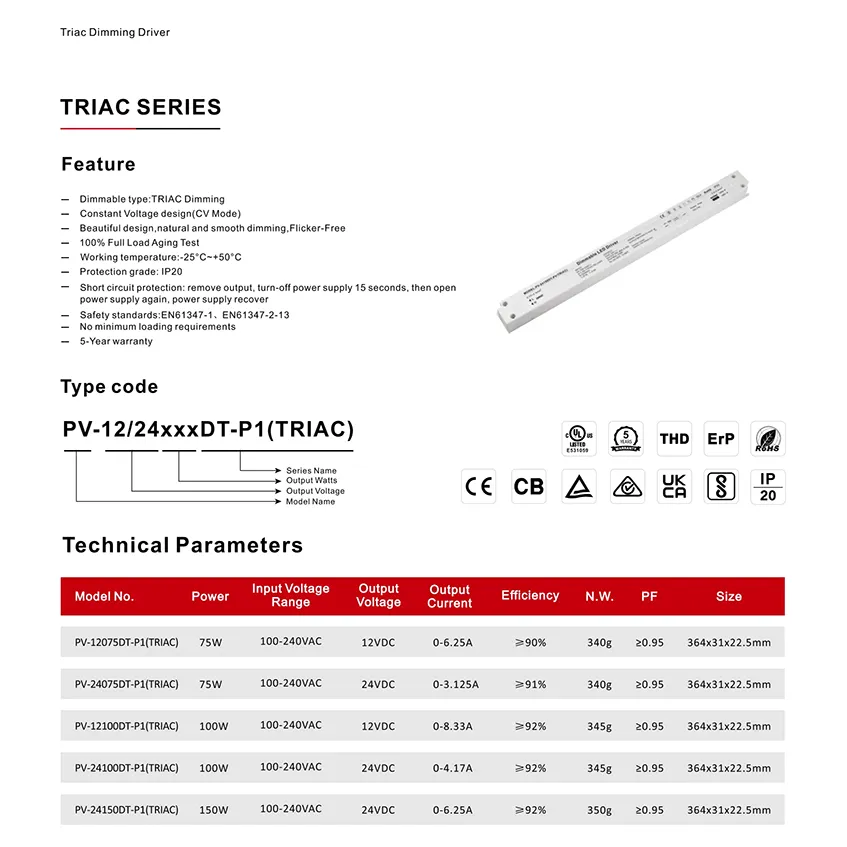

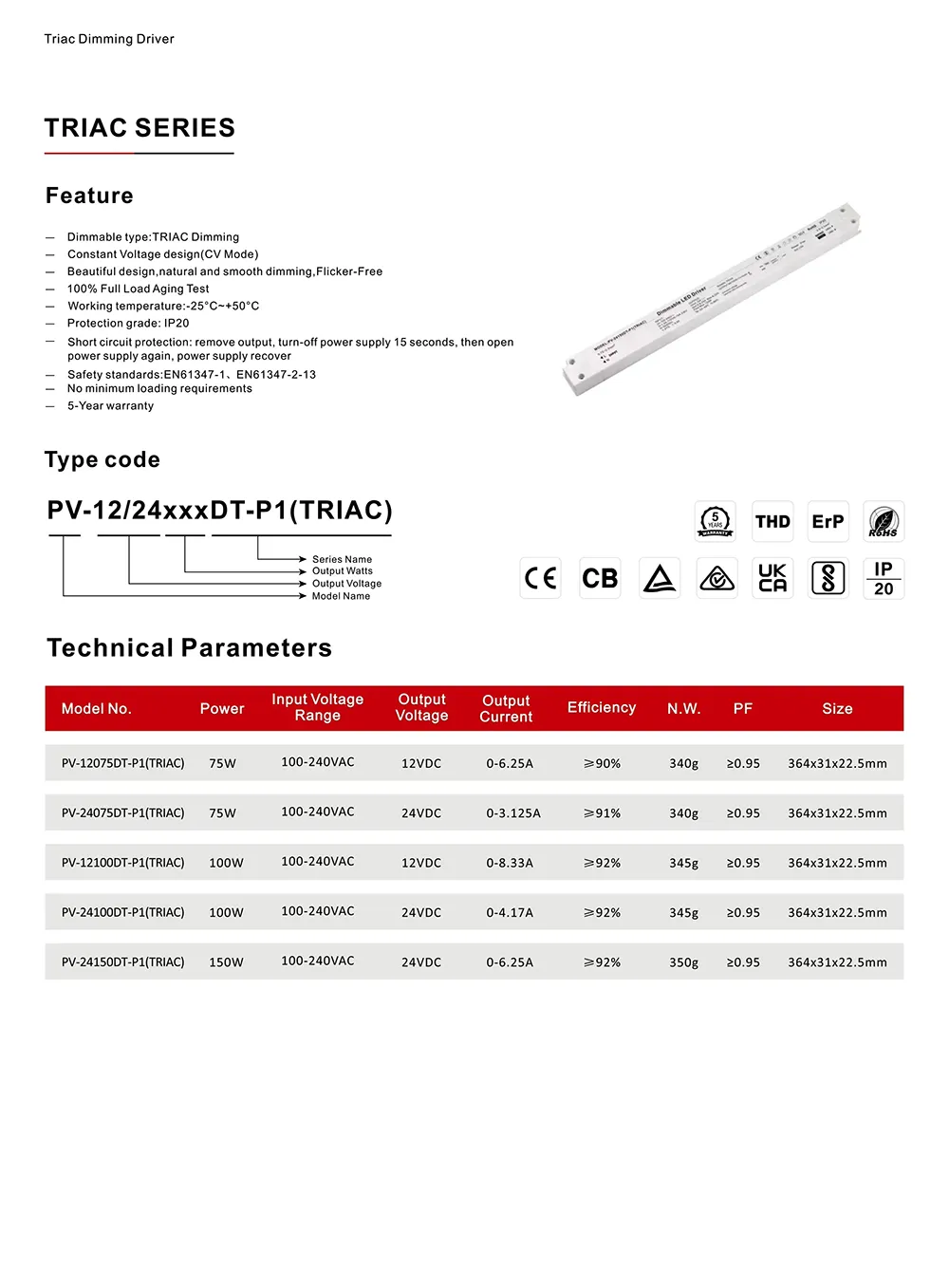

Starwell Constant Voltage Triac dimmable Led Driver Specification:

Model No.：		PV-24150DT-P1(TRIAC)
Output	Rated Output Voltage	24V
	Output current Range	0-6.25A
	Rated Output Power	150W
	Output Voltage Precision	±3%
	Load Regulation	±2%
Input	Input Voltage Range	220-240VAC
	Input Frequency Range	50-60HZ
	Power Efficiency	>91%
	PF	PF≥0.99/115Vac, PF≥0.95/230Vac, PF≥0.92/264Vac (Full Load)
	THD	115Vac@THD＜10%, 230Vac@THD＜20% (Full Load)
	Leak Current	＜0.7mA/230VAC
Protection	Overload Protection	When the load current exceeds 110-150% of the output current, the power supply will enter protection state. Protection Mode: Hiccup Mode.
Protection	Short Circuit Protection	Protection mode: Hiccup Mode. When the short-circuit fault is removed, the power supply will automatically resume work.
Working Environment Protection	Working Temperature	-20℃~50℃
	Storage Temperature	-40℃~80℃
	Ingress Protection Rating	90%RH non condensing, refer to IP20
	Shockproof Character	10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
	Temperature Coefficient	±0.03%℃ (0-50℃)
Security Features	Security Standard	IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1
	Withstand Voltage	I/P-O/P:3.75KVAC
	Insulation Resistance	I/P-O/P:>100M Ohms/500VDC/25℃/70% RH

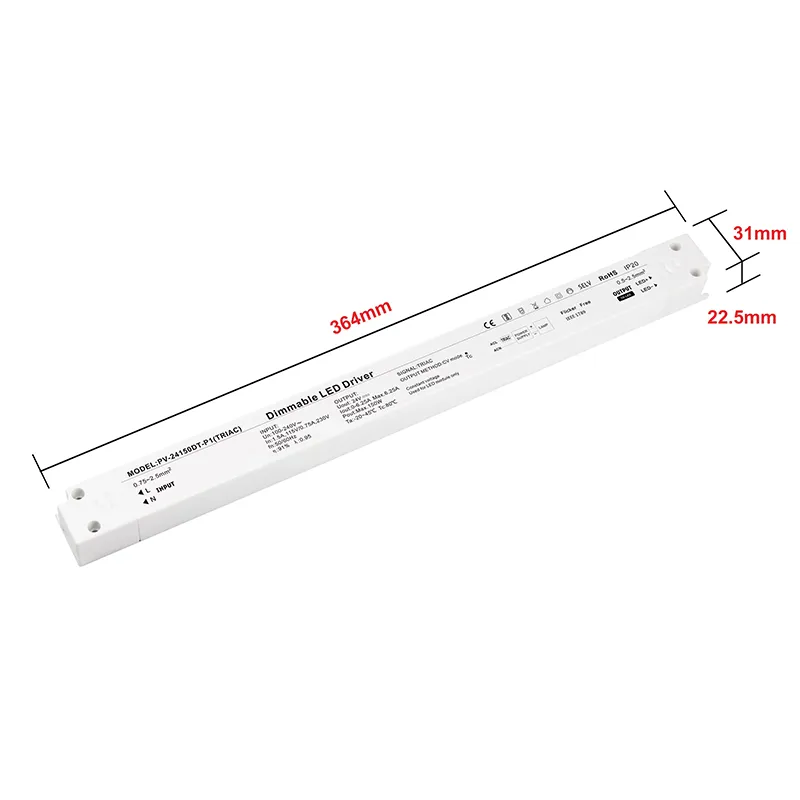

Others	Outter Size	3643122.5mm(LWH)
Others	Weight/PCS	320g

FAQ:

Q1: Are you a manufacturer ? If yes, in which city ?

A1: Yes, we are a professional manufacturer located in Shenzhen. Welcome to visit us. Please kindly inform us of your schedule before your arrival, and we will prepare to pick you up.

Q2. What is the warranty for your LED power supplies ?

A2: We offer LED power supplies with warranties of 2 years, 3 years, and 5 years to accommodate various market demands.

Q3. Do you offer free samples ?

A3: Yes, free samples are available, but the buyer is responsible for the shipping costs.

Q4. Does your LED power supplies are original?

A4: Yes, all of our LED power supplies are 100% brand new originals.

Q5. What is your delivery date?

A5: The delivery date for our products is typically between 3 to 15 days after payment receipt, depending on your order quantity.

Q6. Can you help me make my own design? How about the sample fee and sample time?

A6: Certainly, we have a professional development team dedicated to designing new projects. We offer OEM and ODM services to many customers. You can share your ideas or provide us with drawings, and we will develop it accordingly. Regarding samples, the lead time is typically around 15 to 30 days. The sample fee is determined based on the material and size of the product. If the sample meets your satisfaction, the sample fee can be refunded after regular mass orders.
