30W Constant Voltage Triac Dimming LED Driver

The Starwell factory’s durable 30W constant voltage triac dimming LED driver is a high-performance power solution specifically designed for LED lighting systems. This driver features a stable constant voltage output mode, ensuring that the connected LED strips or modules operate stably and lastingly at their rated power. Its key feature is compatibility with leading-edge and trailing-edge phase-cut (Triac) dimming systems, allowing seamless integration with most traditional triac dimming switches on the market for smooth and flicker-free brightness adjustment. The product boasts a wide input voltage range, high power factor, and multiple safety protection functions, making it suitable for commercial lighting, home decoration, and various low-voltage LED lighting scenarios that require dimming.

Send Inquiry

Product Details

Professional dimming solution: 30W constant voltage triac/0-10V dual-mode dimmable LED driver

High quality 30W constant voltage triac dimming led driver is offered by China manufacturer Starwell, which is a high-performance, multi-purpose 30W constant voltage triac dimming LED driver, specifically designed for LED lighting systems that require precise light control. It is compatible with both the traditional leading-edge phase-cut (Triac) dimming and the advanced 0-10V analog dimming protocols, functioning as a 30W Triac 0-10V Dimmable LED Driver, providing users with installation flexibility and scene adaptability.

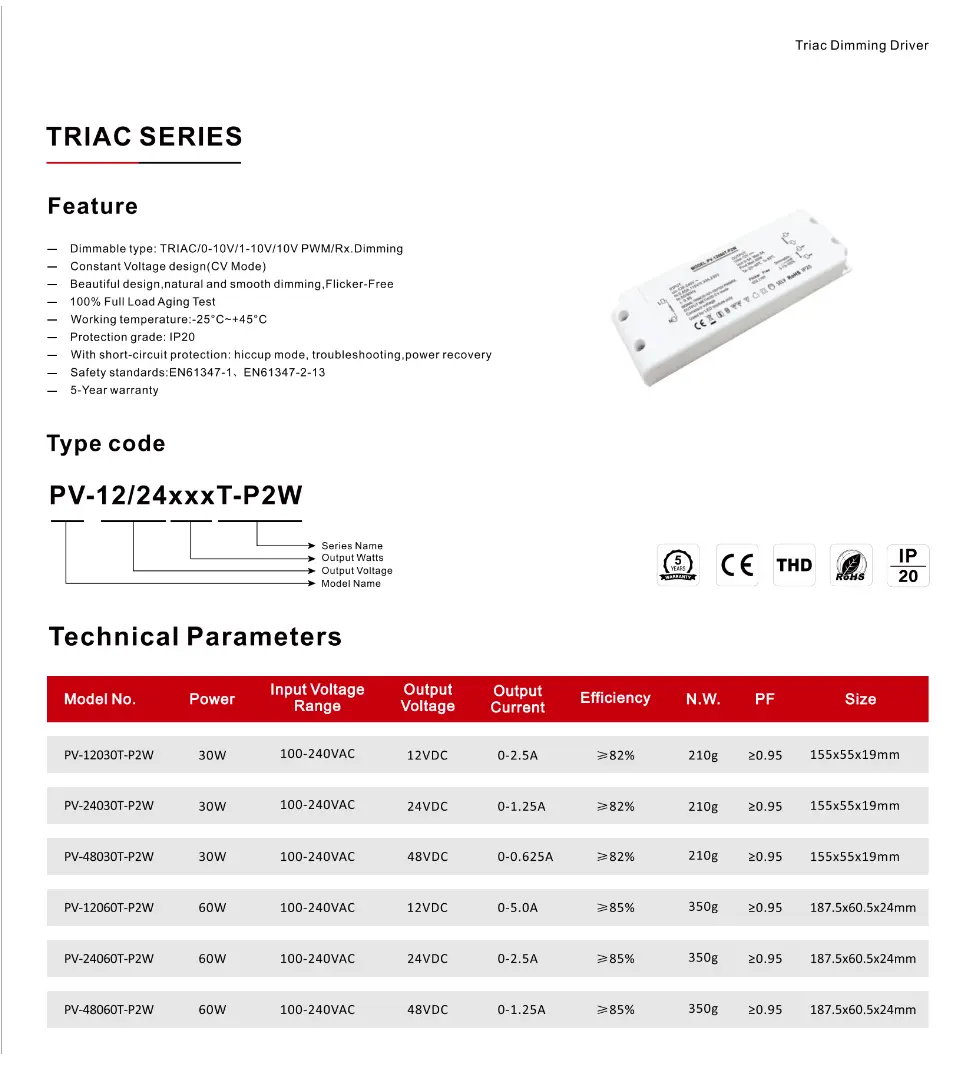

Features:
Dimmable type: TRlAC/0-10V/1-10V/10VPWM/Rx.Dimming

Constant Voltage design(CV Mode)

Beautiful design,natural and smooth dimming,Flicker-Free

100% Full Load Aging Test

Working temperature:-25°C~+45°C

Protection grade: lP20

With short-circuit protection: hiccup mode,troubleshooting,power recovery
Safety standards:EN61347-1、EN61347-2-13

5-Year warranty

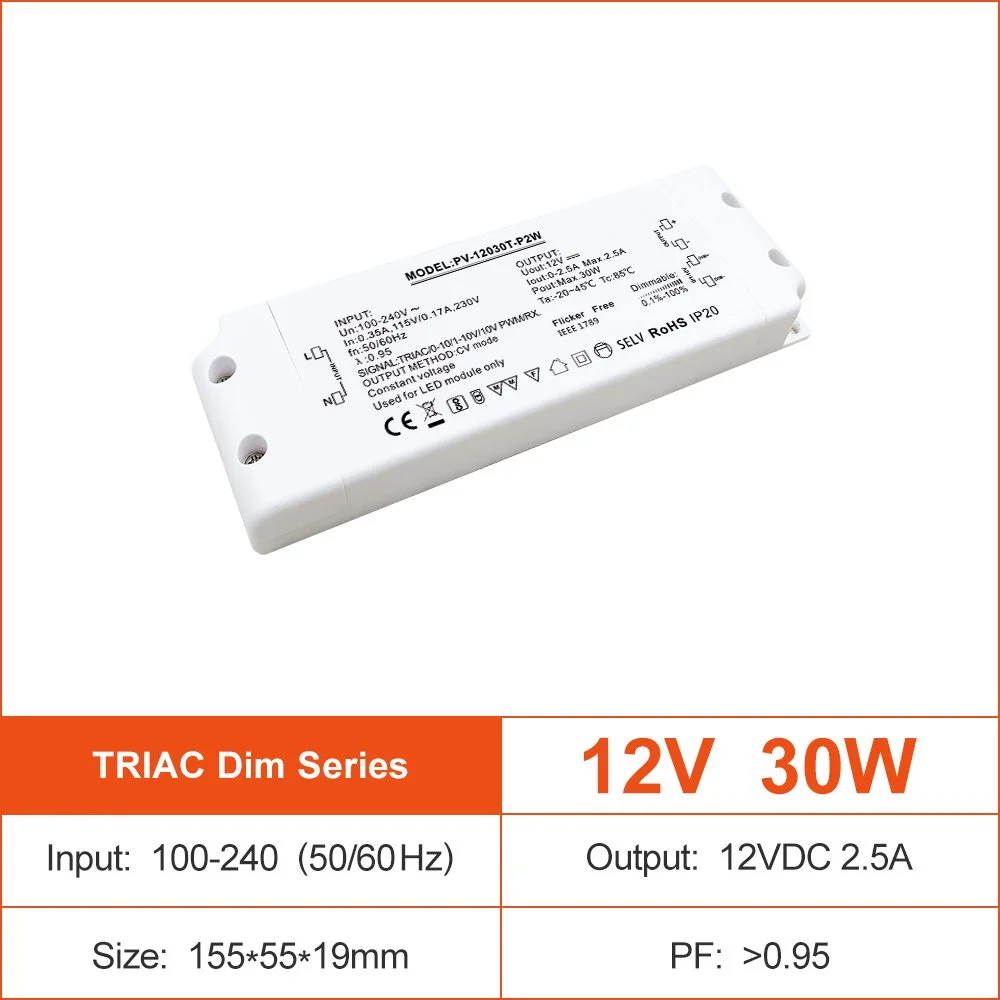

As a stable Constant Voltage Power Supply Triac dimming led driver, it provides a constant 12V DC voltage output. This 12V 30W triac dimmable power supply adopts high-quality components and advanced circuit design, ensuring stable output voltage throughout the full dimming range and fundamentally eliminating the flickering of lights. It is a truly flicker-free triac dimming led driver for indoor use. Its non-flickering feature not only creates a comfortable and healthy visual environment but also effectively protects sensitive LED light sources and modules, extending the overall lifespan of the lighting fixtures.
This high quality 30W Triac 0-10V Dimmable LED Driver has an extremely wide range of applications. As a high-performance flicker-free LED dimming driver, it is perfectly compatible with various 12V low-voltage LED strips, LED modules, panel lights, and commercial display lighting. Whether it is creating an atmosphere in a home living room or highlighting key areas in a store window, it can achieve smooth, quiet, and stepless brightness adjustment. Its stable 12V 30W triac dimmable power supply feature ensures continuous and stable operation even under high-power loads.
TRIAC 0-10V dimmable 30W constant voltage power supply, Starwell offers a 5-year warranty for long-term quality assurance. Its core components are all made to industrial standards, featuring excellent surge resistance, high-temperature endurance, and long-term operational reliability. This 30W constant voltage TRIAC dimming LED driver, which integrates dual-mode dimming, constant voltage output, flicker-free technology, and long lifespan, is an excellent choice for those seeking high-quality lighting effects. Welcome to inquire.

Specification

Output	Output Voltage	12V DC
	Output Current	2.5 A
	Output Power	Max. 30W
	Dimming Range	0~100%, dimming depth:0.1%
	Ripple & Noise	＜5%(Maximum current non dimming state)
	PWM Frequency	4KHz
	Current Accuracy	± 5%
Input	Input Voltage Range	100~240VAC
	Efciency(TYP)	>95% (at full load)
	Input Current	≤0.22A/230AC
	Power Factor	>0.95/230VAC (at full load)
	THD	＜10% / 230VAC (at full load)
	Anti Surge	L-N:1.2KV
	Inrush Current	Cold start 9.7A, 200us duration(50% Ipeak) / 230VAC
	Leakage Current	< 0.5mA/230VAC
	Standby Power/No Load Power	<1W(PUSH dimming off)
Protection	Over Load Power	Current decrease or Hiccup, recovers automatically after fault condition is removed
	Short Circuit	Output shutdown in case of short-circuit, automatic recovery when short-circuit is removed.
	Over Temperature	Reduce the output current or turn off the output when the PCB temperature >110 ℃,<90 ℃automatically restore the output.
Environment	Woking Temperature	-20℃~45℃
	T-case Max	90℃
	Working Humidity	20%~90%RH,non-condensing
	Storage Temperature/Humidity	-40°℃~80℃,10%~95%RH
	Temperature Coefficient	±0.03%/℃(0-50%)
	Vibration Resistance	10-500Hz, 2G,6min/cycle,X,Y, Z axes/2min
	IP Rating	IP20
Safety& EMC	Security Specifications	IEC/EN61347-1, IEC/EN61347-2-13
	Withstand Voltage	I/P-O/P: 3750VAC
	Insulation Resistance	I/P-O/P: 100MΩ/500VDC/25℃/70％RH
	EMC Emission	EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2.3.4.5.6.8.11, EN61547
	Certications	CE
