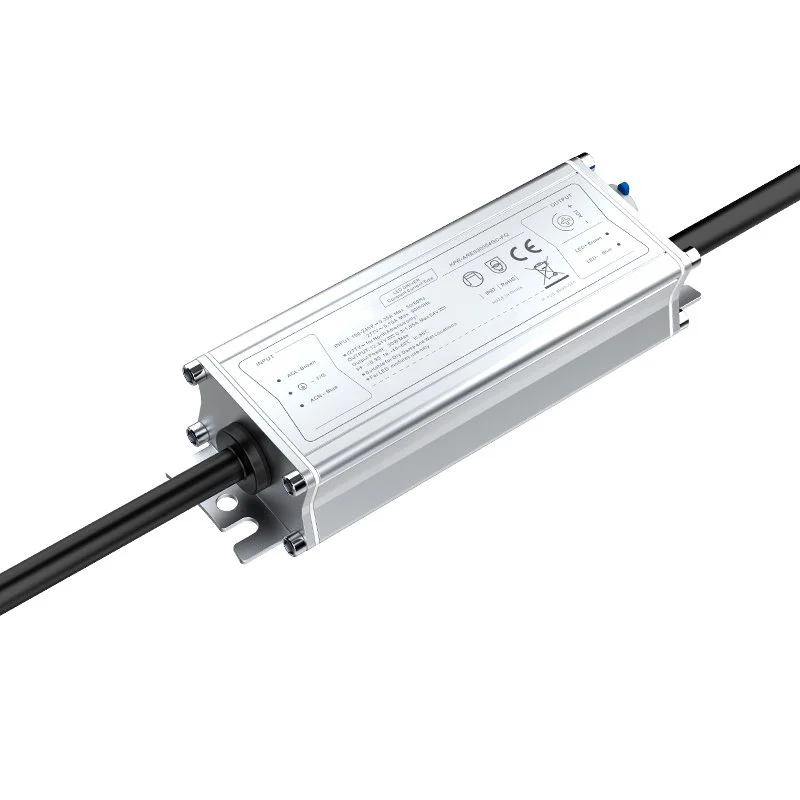

30W Constant Current LED Driver

Buy durable 30W Constant Current LED Driver from leading China manufacturer Starwell. It is specially designed for fixed lighting applications that do not require brightness adjustment. The driver operates in constant current mode, with the output current preset at factory (common options include 350mA/500mA/700mA/1050mA), with an accuracy control within ±5%. This ensures stable and consistent light flux of the LED lamps. It does not include any dimming interfaces (0-10V, PWM or resistance dimming are not supported), and the circuit is simple and reliable, effectively reducing the failure rate. It is suitable for cost-sensitive commercial or outdoor projects that do not require dimming.

Send Inquiry

Product Details

In terms of electrical performance, Starwell factory’s 30W Constant Current LED Driver supports a wide AC input range of 90-305V, compatible with global power grids; the conversion efficiency is over 87%, and it is combined with active power factor correction (PF > 0.95), saving energy and reducing power consumption.

It has built-in overload, short circuit, over-temperature and open circuit protection, extending the lifespan of the lamps. The casing is made of aluminum material and is combined with thermal conductive encapsulation adhesive, providing excellent heat dissipation, with a protection level of IP67, dustproof and waterproof, and can be directly used in outdoor spotlights, wall wash lights, tunnel lights and billboard lighting and other scenarios.

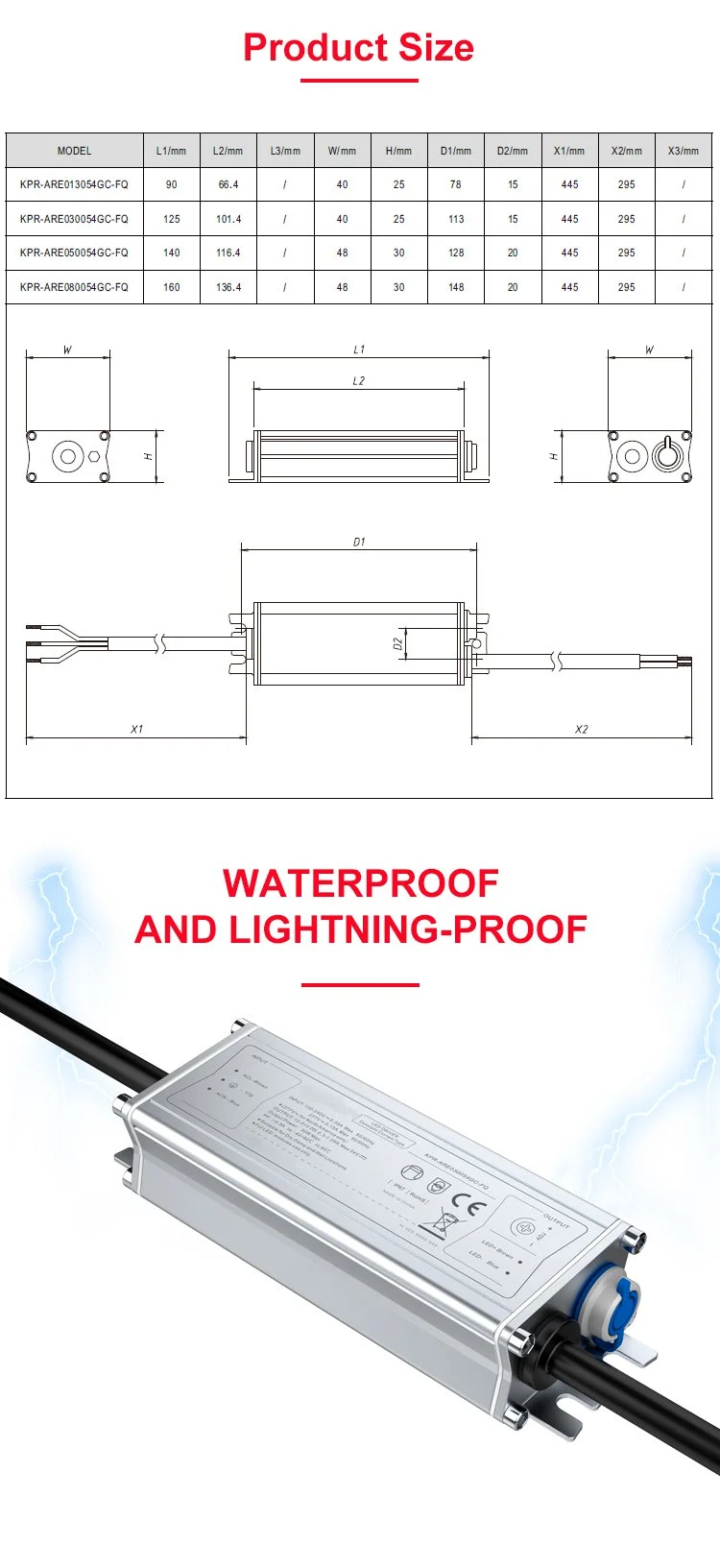

The product is compact in size, comes with waterproof cable connectors, is easy to install, and undergoes 100% full-load aging tests before leaving the factory, ensuring reliable quality.

30W Constant Current LED Driver

Features Wide input range 100~277VAC

Full power output at 70~100% Constant power mode operation

Metal case with IP67,suitable for outdoor application

Protection functions: OVP/SCP/OCP/OTP

Life time >50,000 hrs.and 5 years warranty

This 30W Constant Current LED Driver is an IP67-rated waterproof non-dimming switch power supply specifically designed for commercial and industrial lighting scenarios that require stable light output without the need for brightness adjustment. The output current can be flexibly adjusted within the range of 300mA to 1050mA through the built-in dip switch or potentiometer (or preset fixed values by factory), suitable for different numbers of LED modules in series. The constant current accuracy is controlled within ±5%, ensuring consistent light efficiency and lamp lifespan. The driver supports an ultra-wide AC input of 100-277V, covering the mainstream grid voltages worldwide. It can operate stably even in remote areas with large voltage fluctuations.

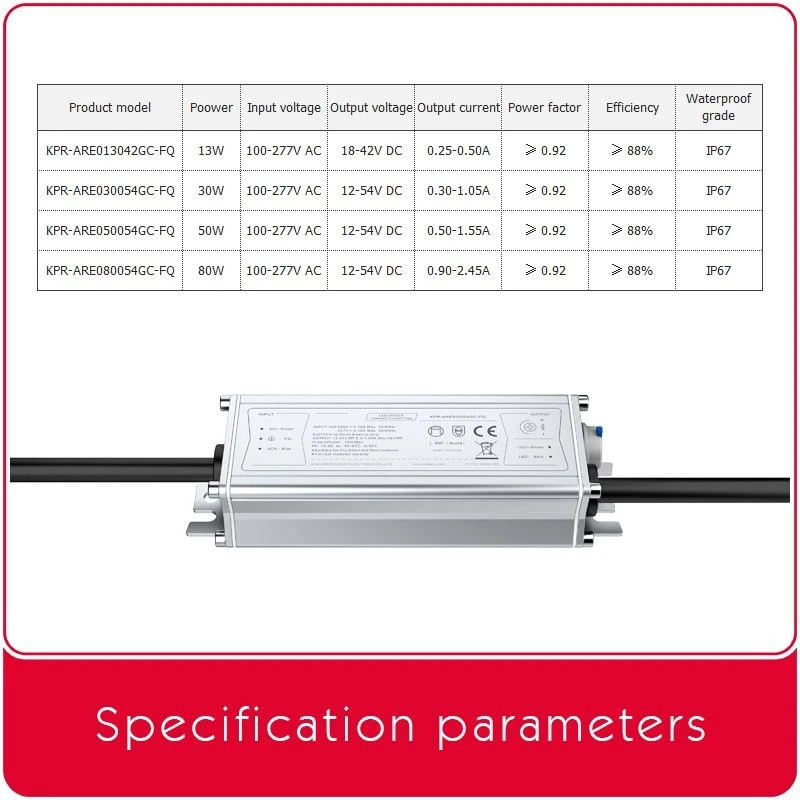

Specifications

INPUT	Input Voltage	100-277VAC
	Input frequency	50/60Hz
	Power Factor	>0.92
OUTPUT	DC Voltage	12~54VDC
	Rated Current	300-1050mA
	Rated Power	30W
	SETUP Rise Time	<0.5s
PROTECTION	Short circiut	Recovers automatically after fault condition is removed
	Overload	Overload protected @110-130% above peak rating
	Over Temperature	Shut down o/p voltage . re-power on to recover
	IP Code	IP67
ENVIRONMENT	Working TEMP.	-30-+50℃ (refer to output load derating curve)
ENVIRONMENT	Storage TEMP.	-40-+80℃
Safety & EMC	Safety Standards
Safety & EMC	EMC Test Stardands	CE

In terms of electrical performance, the product has a conversion efficiency of over 87%, and the power factor correction is better than 0.92, significantly reducing reactive power loss and meeting green and energy-saving standards. It is equipped with a comprehensive protection circuit, including overload protection, short circuit protection, over-temperature protection, and output open-circuit protection. Once the fault is resolved, it automatically recovers to ensure the long-term safe operation of the driver and the lamps in harsh environments.

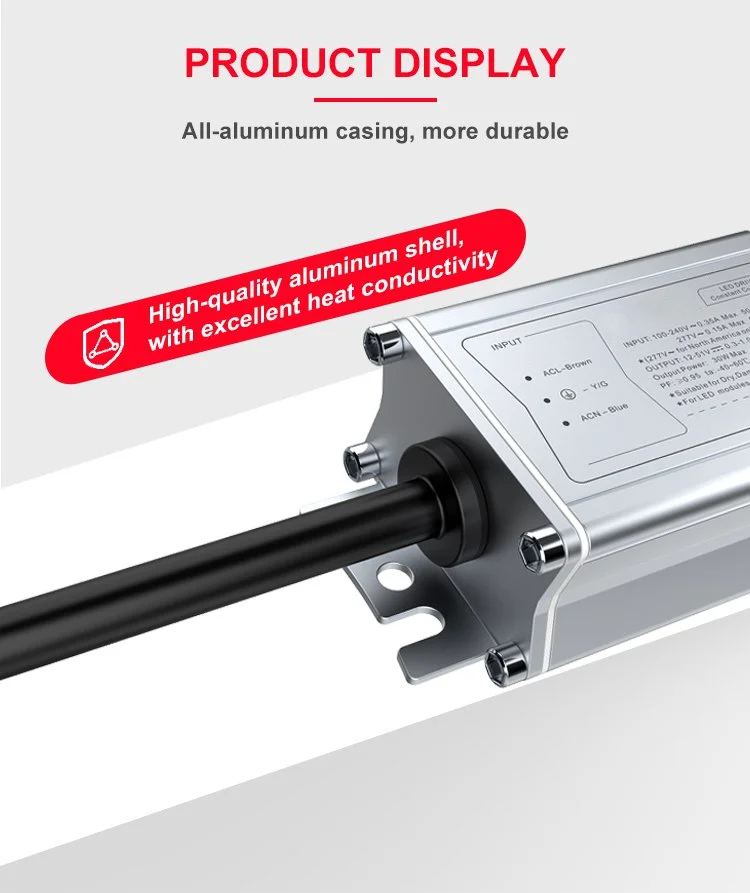

The shell is made of high-strength aluminum alloy profiles, filled with internal heat-conducting sealant. This design not only achieves excellent heat dissipation performance but also reaches the IP67 protection level - completely dust-proof and capable of short-term immersion in 1-meter water depth, unaffected by heavy rain, rinsing, or high humidity condensation environments. The compact body design is paired with waterproof cable connectors, making installation convenient and allowing for direct fixation on the lamp body or independent brackets.

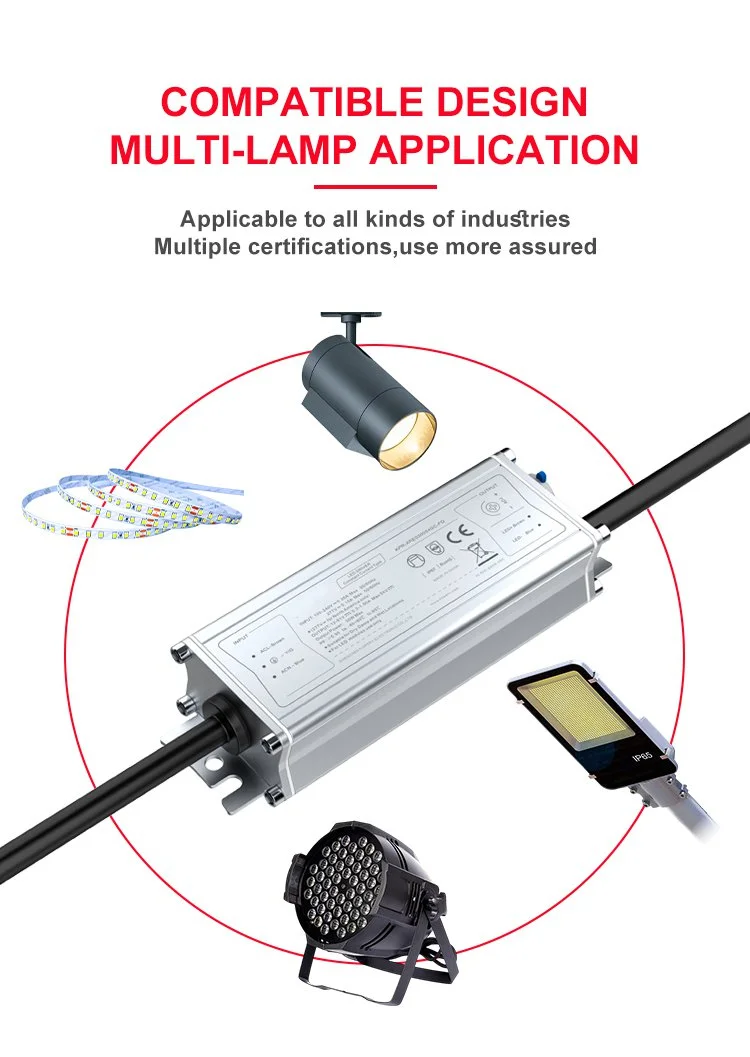

This drive unit does not incorporate any dimming interfaces (such as 0-10V, PWM, DALI, etc.). It is purely used as a constant current switching power supply, simplifying the circuit structure and reducing the failure rate. It is particularly suitable for fixed brightness lighting projects that are cost-sensitive and do not require dimming. It is widely used in commercial lighting (such as downlights, grille lights), industrial high-gantry lights, parking lot lighting, retail display track lights, advertising light boxes, and outdoor spotlights, etc. The product has passed CE and RoHS certifications, and undergoes 100% full-load aging tests before leaving the factory. It is of reliable quality and is an ideal choice for 30W-level outdoor constant current drives.
