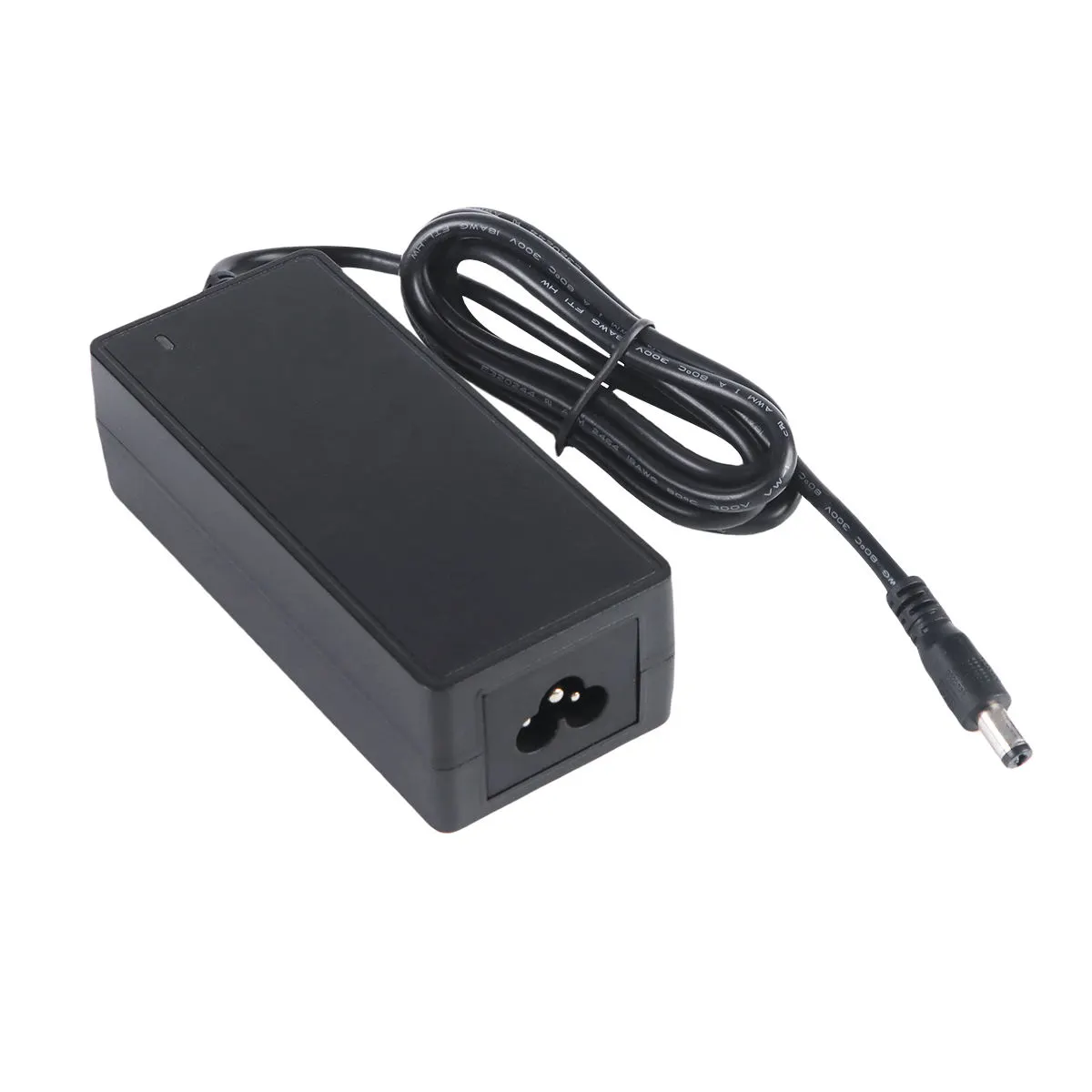

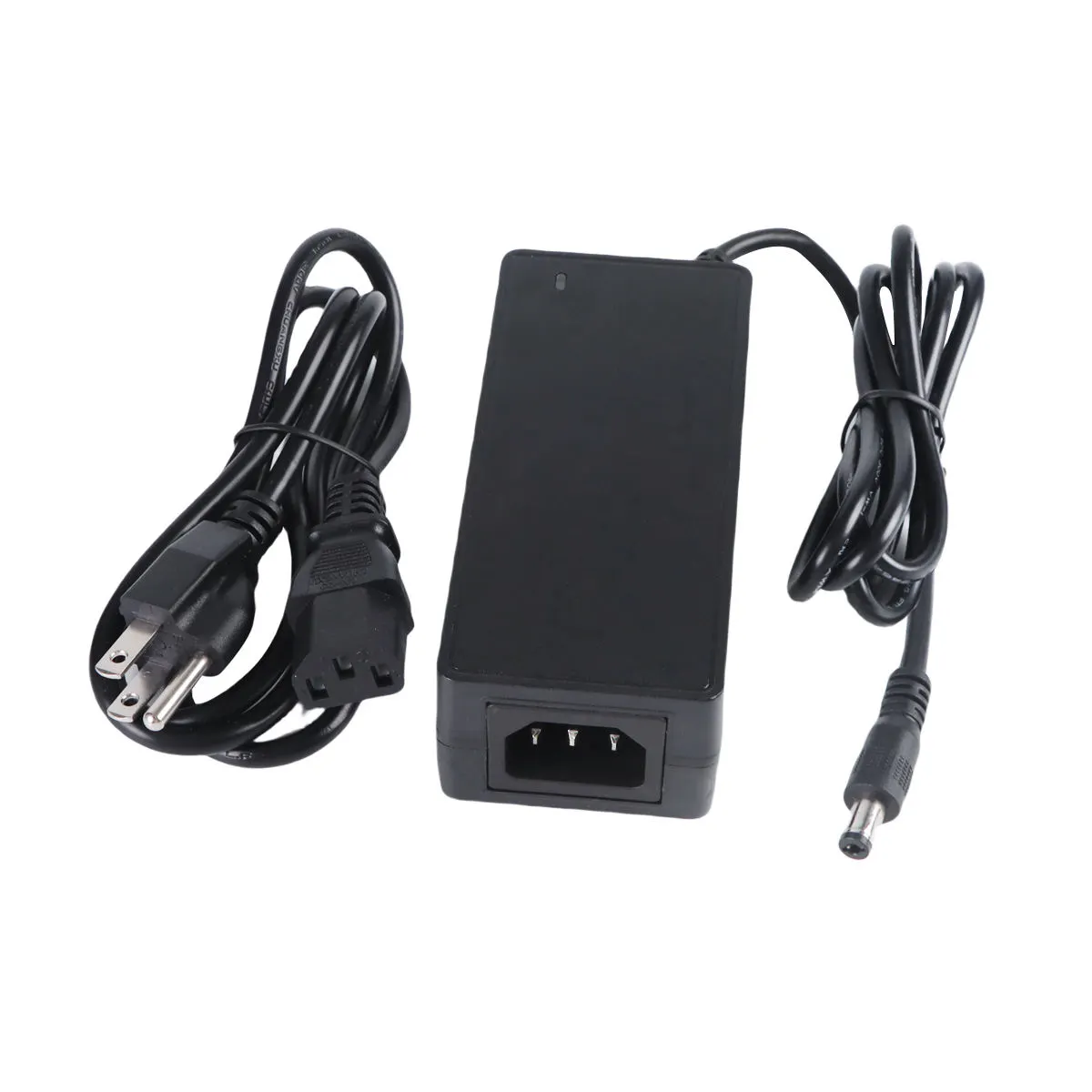

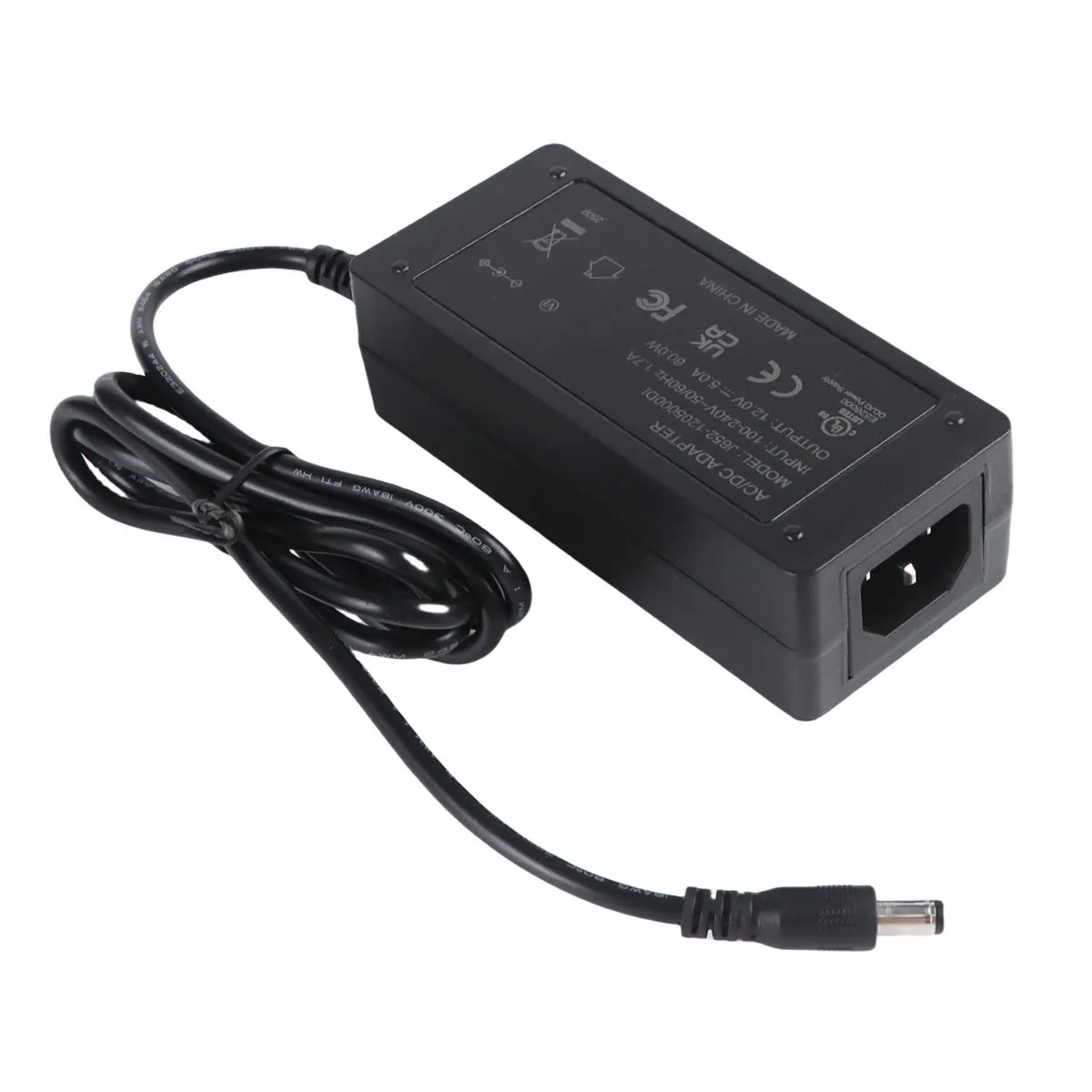

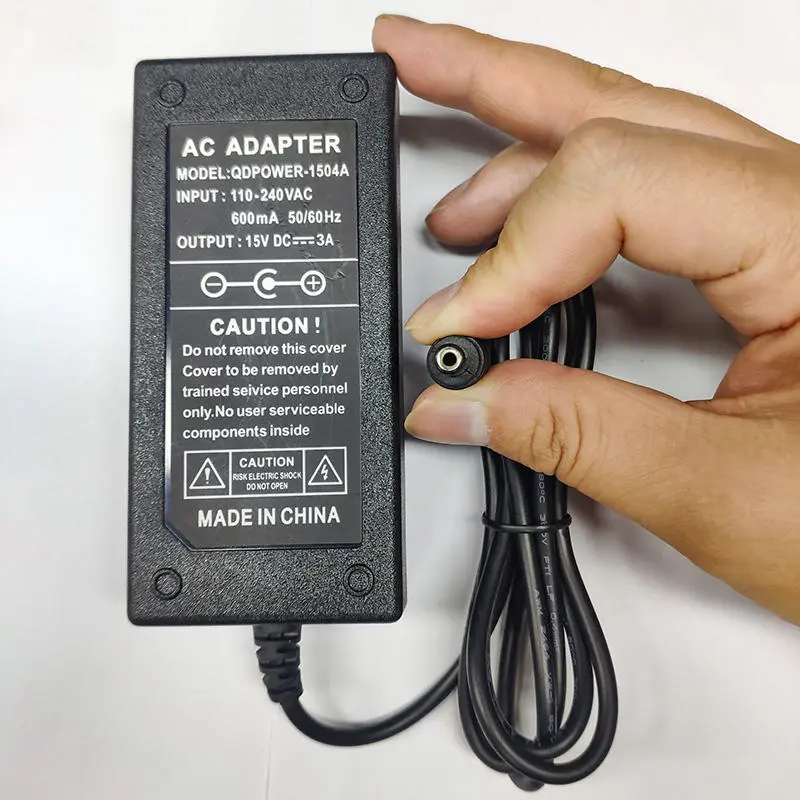

15V 3A Desktop AC DC Charger Power Adapter

ShenzhenStarwell TechnologyCo.,Ltd. is both a manufacturer and trader, excelling in quality control and offering full customization, design customization, and sample customization, primarily exporting to India, Argentina, and Germany with a positive review rate of 100.0%.Our customized OEM ODM 15V 3A Desktop AC DC Charger Power Adapter is a dedicated and reliable power supply center designed for specific medium power devices. Its desktop design ensures good heat dissipation and stability, making it suitable for fixed position devices that require continuous and reliable power supply. Before use, it is necessary to double check the voltage, current, power, and interface polarity requirements on the equipment label.

Send Inquiry

Product Details

Product Specification

item	value
Output Type	DC
Place of Origin	China
	Guangdong
Brand Name	Starwell
Model Number	SW-1503

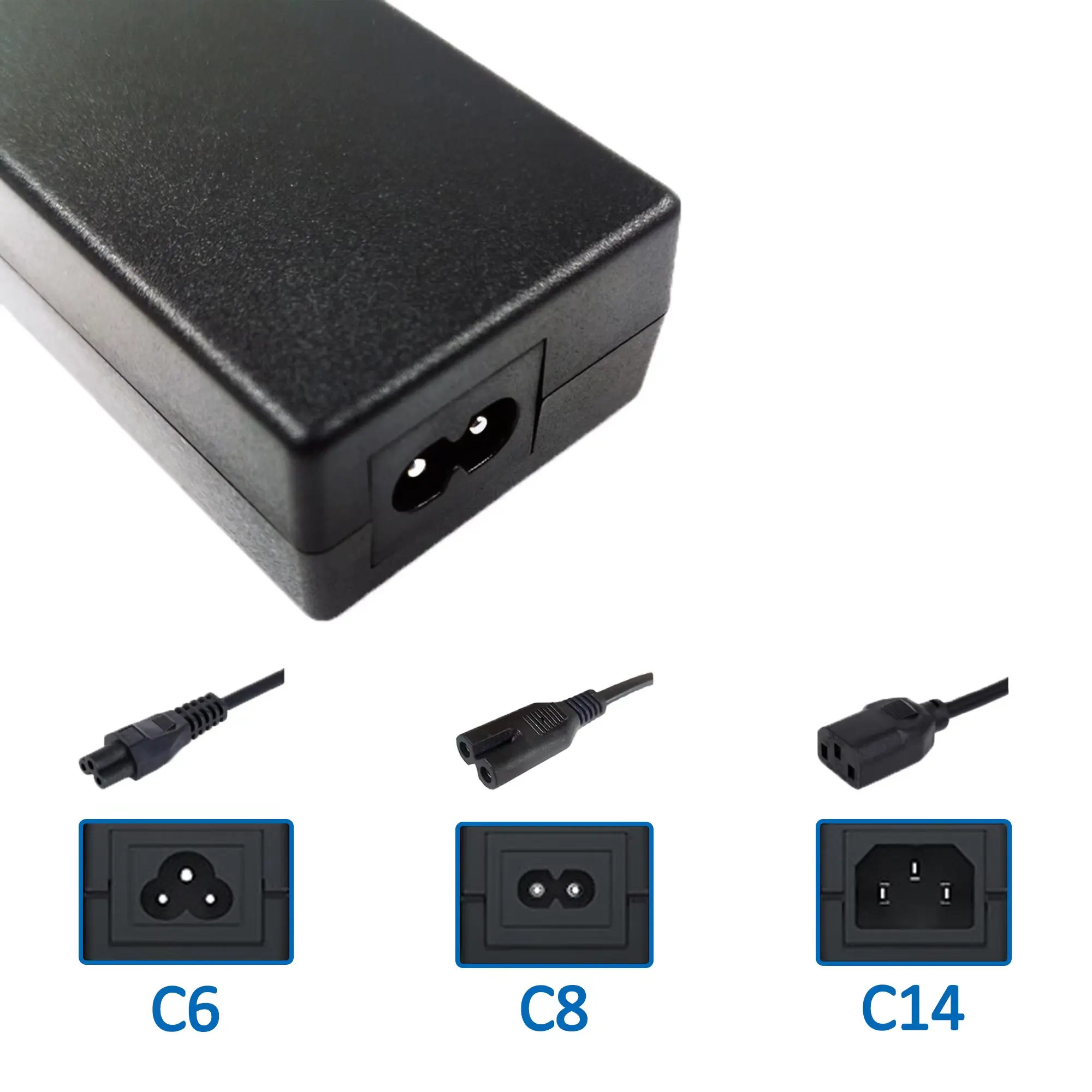

Connection	Desktop

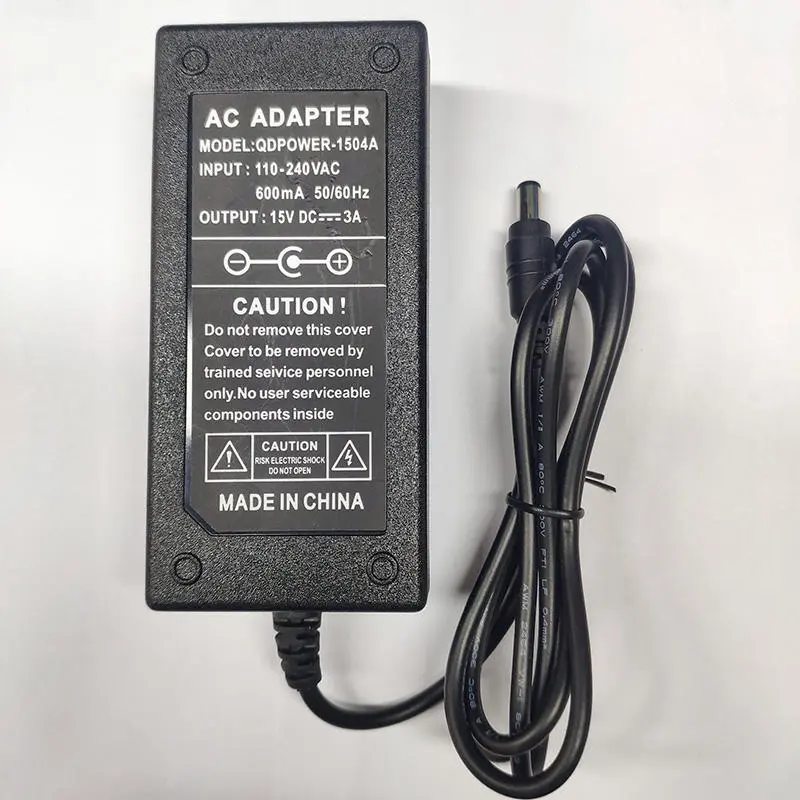

Product Name	Power Adapter 15V 3A
Output voltage	15V
Output current	3A
Output power	45W
Protection	OVP UVP OCP SCP
Material	PC+ABS
DC connector	5.52.1 5.52.5.etc (optional)
DC Cable	1 meter
Color	Black
Warranty	3year

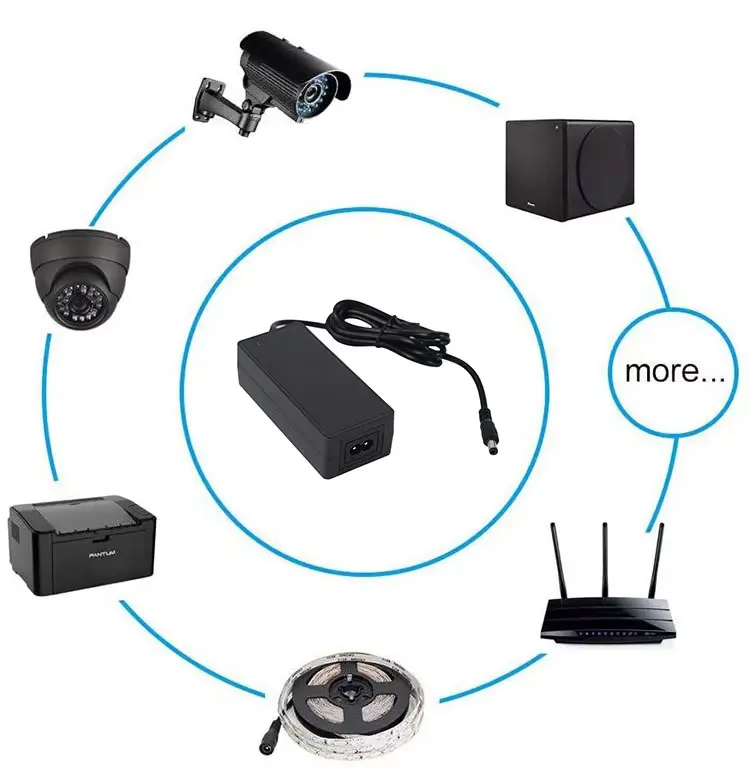

Main application devices:

Starwell customized OEM ODM 15V 3A Desktop AC DC Charger Power Adapter is commonly used for desktop electronic devices that require moderate power, such as:

liquid crystal display

External hard drive enclosure (multi bay)

Network devices (routers, switches, NAS)

Audio amplifier, active speaker

Some small desktop devices and industrial control equipment

Charging lead-acid batteries (requires support)

Some high-end gaming peripherals or workstation accessories

DATA SHEET:

OUTPUT	DC VOLTAGE	15V
	OUTPUT POWER	45W
	RATED CURRENT	3A
	RIPPLE & NOISE(max.)	180mVp-p
	VOLTAGE ACCURACY	±5.0%
	LOAD REGULATION	±5.0%
	START,RISE TIME	1000ms, 30ms/230VAC 1000ms, 30ms/115VAC
	HOLD UP TIME	30ms/230VAC 12ms/115VAC
	DC OUTPUT CONNECTOR	5.52.110MM DC Plug
INPUT	VOLTAGE RANGE	180-240VAC
	AC CURRENT(Typ.)	0.4A/ 230Vac 0.7A/115Vac
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	85%
	INRUSH CURRENT(Typ.)	COLD START 25A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<0.75mA/240VAC
PROTECTION	OVER LOAD	110%~130% of rated power; enter into hiccup mode,self-recovered when the false condition is removed
	OVER VOLTAGE	Voltage of 105%~120% of rated V,hiccup mode kicks in,self-recovery
	SHORT CIRCUIT
ENVIRONMENT	WORKING TEMP.	-10℃ ~ +50℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
SAFTY & EMC	WITHSTAND VOLTAGE	3KV,10mA,60S
