48W Desktop Power Adapter

STARWELL is a reputable Chinese factory and supplier with years of experience specializing in 48W desktop power adapter production.

Features:
Universal input: 100-240VAC 50-60Hz
Output Power: 48W
Inlet Type: C8, C6, C14 optional
Output: 5V6A, 9V5A, 12V4A, 24V2A, 48V1A
Certificates: CCC,UL, cUL, CE, FCC, RCM, C-TICK, TUV, UKCA, KC, and BIS
Safety Standard: IEC62368, IEC60601, IEC1310, IEC61558, IEC60335, IEC61347
Warranty: 3 years

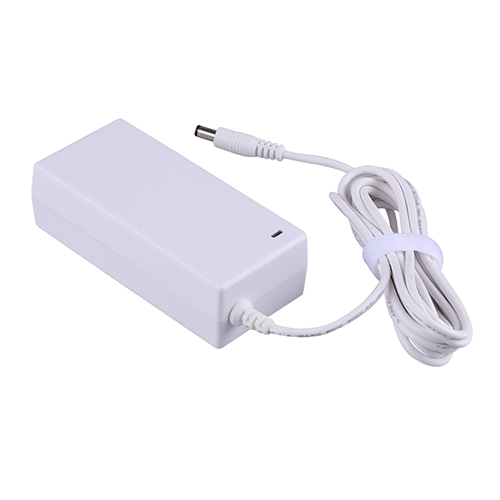

Color: black or white optional.
DC jack: 5.5*2.5mm, 5.5*2.1mm, 4.0*1.7mm, Mini 4pin, Molex connector...
Size: 111.0x51.5x33.5mm (LxWxH)

Send Inquiry

DATASHEET

Product Details

The 48W desktop power adapter manufactured by STARWELL, with the mentioned certifications and specifications:

The 48W desktop power adapter by STARWELL is a reliable and high-quality power supply solution. It is designed to meet international safety standards and provides efficient and stable power delivery.


Product Specifications:

· Power Output: 48W

· Manufacturer: STARWELL

· Safety Standards: The power adapter complies with the following safety standards:

· IEC62368: Audio/Video, Information, and Communication Technology Equipment

· IEC60601: Medical Electrical Equipment

· IEC61347: Lamp Controlgear

· IEC61558: Safety of Power Transformers, Power Supply Units, and Similar Devices

Quality Certifications:

· ISO9001 and ISO14001: The manufacturing facility has obtained ISO9001 certification for quality management systems and ISO14001 certification for environmental management systems. This ensures consistent product quality and environmental responsibility.

Safety Certifications:

· UL: Underwriters Laboratories (United States)

· CE: Conformité Européene (European Union)

· FCC: Federal Communications Commission (United States)

· TUV: Technischer Überwachungsverein (Germany)

· UKCA: UK Conformity Assessed (United Kingdom)

· RCM: Regulatory Compliance Mark (Australia and New Zealand)

Voltage and Current Options:

The power adapter offers the following output voltage and current options:

· 5V6A: 5 Volts, 6 Amps

· 9V5A: 9 Volts, 5 Amps

· 12V4A: 12 Volts, 4 Amps

· 24V2A: 24 Volts, 2 Amps

· 48V1A: 48 Volts, 1 Amp

Energy Efficiency:

The power adapter meets energy efficiency level 6 requirements, ensuring minimal energy waste and improved efficiency.

With its adherence to stringent safety standards, quality certifications, and a range of voltage options, the STARWELL 48W desktop power adapter offers a reliable and efficient power supply solution for various applications.


STARWELL 48W desktop power adapters Specification:

Product Name 48W desktop power adapter, 48W desktop AC/DC adapter, 48W desktop power adaptor
Type Desktop power adapter
Material PC Fireproof Material
Input 100-240VAC ± 10%; 50/60Hz; 0.8A Max
Output 5V 6A, 9V5A, 12V4A, 24V2A, 48V1A
Or consult us for specific voltage and current to see if it can be customized or not
Inlet C8/C6/C14 inlet or attached with AC power cord
Protection Over-temperature protection, over-charge, over-voltage, over-current, short circuit protection
Advantages Ultra-small size, light weight, streamline, fully sealed and easy to carry
Low-cost design, high reliability, ultrasonic lamination, fireproof housing
constant voltage mode, high precision, low noise
Certificates CCC/UL/CE/FCC/CB/KC/KCC/PSE/cUL/TUV/UKCA/NOM/RCM/EAC/ROHS/REACH
Energy efficiency ERP / CEC-VI standard CoC Tier 2
Safety standards IEC62368, IEC60335, IEC61558, IEC1310, IEC61347
Package Specialized shipping box for sample
PP bag package in outer carton with die cut cards protection for bulk order
custom available
Usage Intelligent home appliance medical beauty machines Consumer electronics Sports equipment
sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc. facial machines, hair removal device, etc. tablet, laptop, switch, set top box, electronic musical instrument, etc. massage gun, E-bike, scooter, etc.


MODEL LIST

48W DESKTOP POWER ADAPTER
POWER MODEL INPUT OUTPUT
VOLT
OUTPUT
CURRENT
Certificates inlet
48W Series SW-0009050-S10 100-240VAC 9V 5.0A UL,CE,FCC, RCM,KC, UKCA C8, C6, C14 or attached with ac cable
SW-00120400-S10 12V 4.0A
SW-00150300-S10 15V 3.0A
SW-00240200-S10 24V 2.0A
SW-00480100-S10 48V 1.0A
