What is the POE Injector?

POE power supply, also known as network power adapter, is a specially designed device that can transmit network signals and power required by devices through the same network cable. When in use, this device is connected to the power supply at one end and connected to a common network switch or router at the other end. It then cleverly integrates the power into the network data channel, allowing terminal devices such as network cameras, wireless WiFi transmitters or Internet phones to obtain network connection and working power at the same time with only this network cable. This method saves the trouble of pulling wires and installing sockets at the device location, making the device installation easier and less expensive.

POE injectors usually comply with the IEEE 802.3af, 802.3at, or 802.3bt standards. The 802.3af standard supports up to 15.4 watts per port, 802.3at (POE +) supports up to 30 watts per port, and 802.3bt (POE ++) supports up to 90 watts per port. They come in single - port and multi - port models, with some also having features like surge protection.In summary, POE injectors offer a cost - effective and flexible solution for powering network devices, especially in scenarios where non - PoE switches are in use or where power outlets are unavailable.

The Production Specification for 60W Desktop POE Injector?

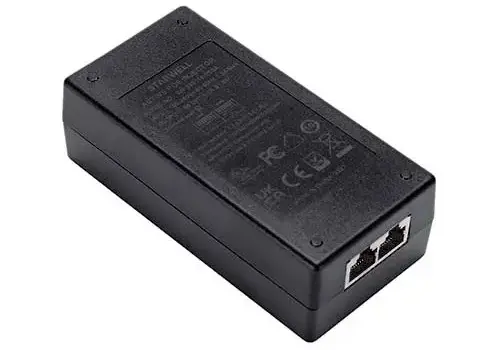

60W IEEE 802.3af/at/bt POE++ 1000M /2.5Gbps POE Injector
This POE injector is compliant with IEEE 802.3af and IEEE 802.3at IEEE802.3bt standard, POE++ standard with passive POE, provide DC power to POE devices, plug and play, easy for networking deployment and the output power consumption up to 60W. This POE can auto-start short-circuit function to cut off power supply when meet too high current or electricity interruption, to prevent equipment burnout and avoid networking failure caused by electricity interruption or installing error. This function make the POE can be widely applied to wireless network devices, Blue tooth, IP Phone which compliant with IEEE802.3af/at/bt. Matched with Ethernet/ Power separator to change the current networking into source LAN, easy management, strengthen controlling and decrease the maintenance cost

Key Feature

Delivers power and data through one Ethernet cable for easy network extension.
Compatible with IEEE 802.3af/at IEEE 802.3bt compliant powered devices.
POE Port Delivers power up to 100 meters.
Plug and Play, no configuration required.

Product Features

Power over Ethernet
Support IEEE802.3af/at IEEE802.3bt standard, automatically detect and identify powered devices compliant with the standard and provide power supply, single-port power supply up to 60W.

Power Supply Distance Extension
The power supply distance of standard CAT 5E and CAT 6E cable is up to 100m. It can supply power for the PD remotely, which expands the range of PoE applications, improves wiring efficency, and better for project installation works.

Extreme Speed Transmission
10/100/1000Mbps/2.5Gbps self-adaptive RJ45 port, extreme speed and high efficient data transmission, support link-speed forwarding and MDI / MDIX auto-flip function, plug and play.

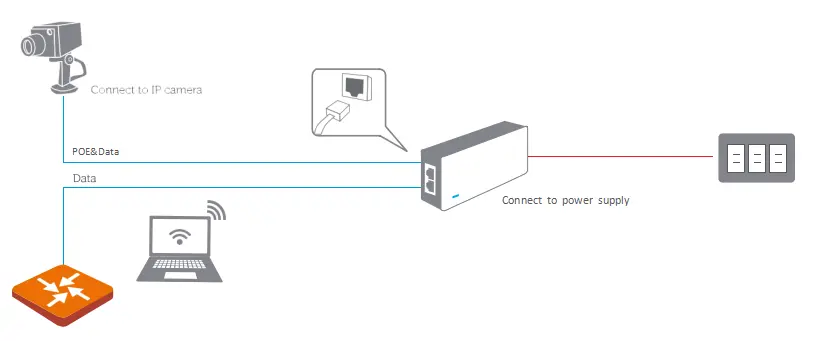

Product Application

Why choose Starwell?

Innovative Technology: Starwell devotes a lot of resources to research and development, and rely on their deep engineering accumulation to continuously create leading products with outstanding performance and complete functions.

High Quality: We carefully select sturdy and durable high-quality materials and strictly follow the almost demanding quality standards during the production process to ensure that each product can operate stably for a long time and become a trustworthy partner for users.

Sleek Design: Starwell is committed to creating an elegant and modern visual style, cleverly combining beautiful shapes with practical functions. The final product is not only reliable in performance, but also has a pleasing appearance and touch, bringing high-quality visual and usage experience.

Diverse Product Portfolio: Whether you are looking for basic appliances to enhance your daily convenience or you are eager to explore new and interesting technology products, you can find your favorite choice in Starwell's rich product family to fully meet your different imaginations of a better life.

Professional Customer Service: With a professional team that responds promptly and is willing to answer questions, whether it is detailed consultation before purchase or attentive maintenance after use, we are always by your side, ready to provide you with the support and help you need at any time.

Brand Reputation: As a leading brand in the industry, Starwell has built a strong reputation for innovation, quality, and customer satisfaction over the years. Customers can trust the Starwell brand.

Sustainability Focus: This sense of responsibility runs through every step of production and product design. We actively choose recyclable and environmentally friendly materials, and are committed to developing products that are both energy-saving and practical, striving to make the advancement of technology and the protection of our common home coexist harmoniously.

It is the combination of cutting-edge technology exploration, quality excellence, pleasing design, rich selection, sincere service, trustworthy reputation and green commitment that makes Starwell an ideal partner for many families. We are committed to providing electrical and electronic products that are both powerful and reliable and that you can choose with peace of mind, to jointly create a better life experience.
