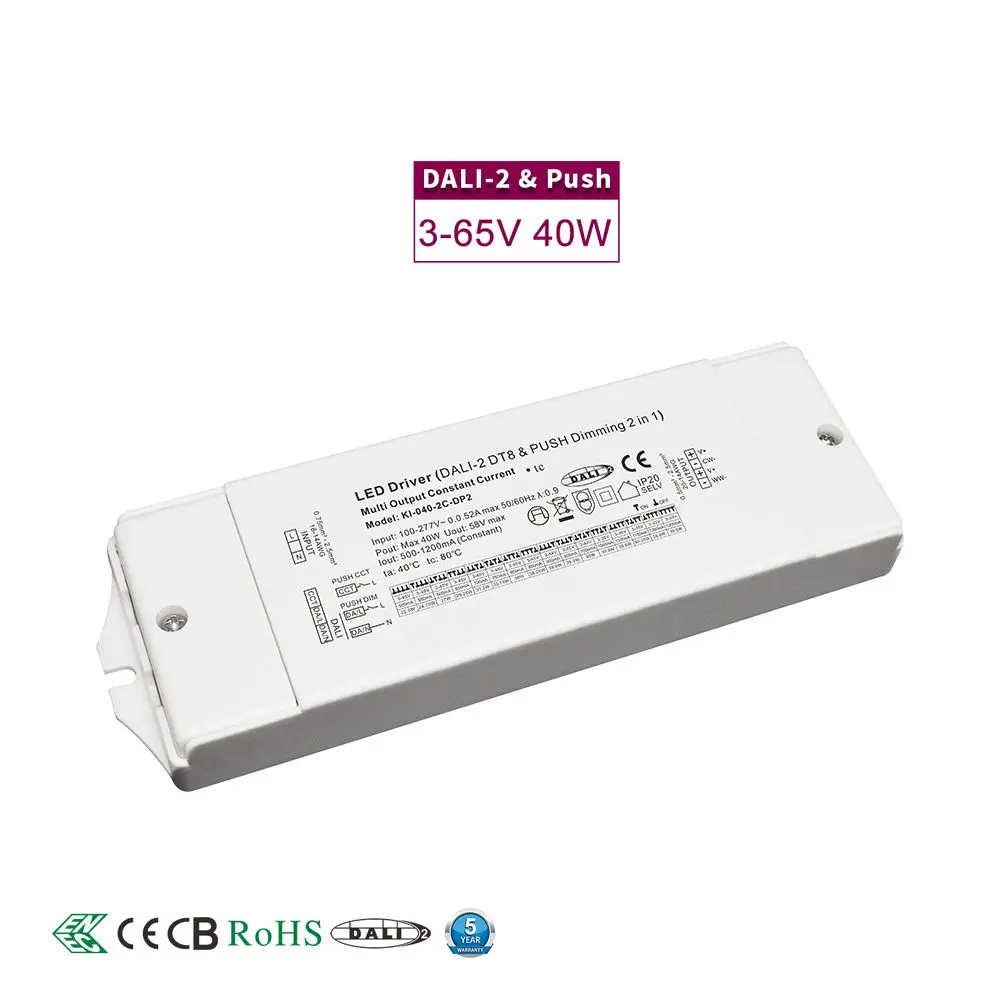

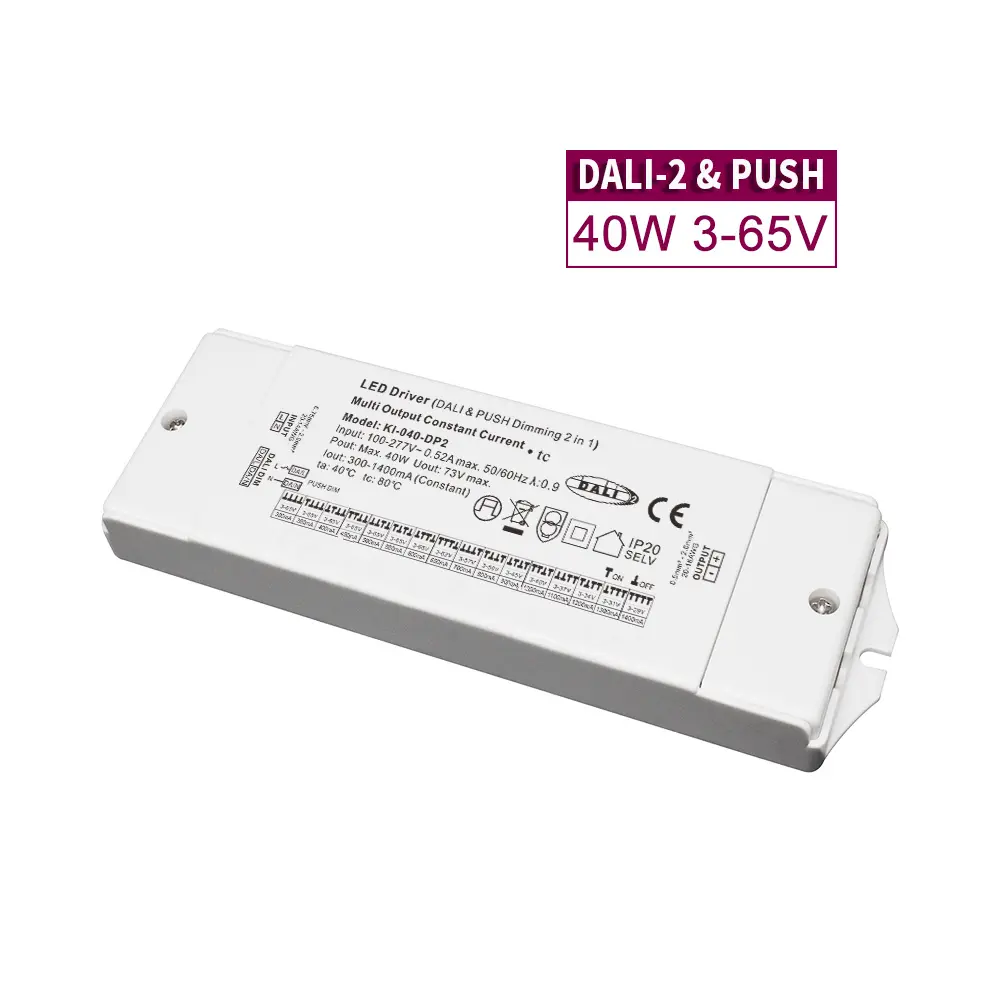

DALI Constant Current CCT Dimming Led Driver
  • DALI Constant Current CCT Dimming Led DriverDALI Constant Current CCT Dimming Led Driver
  • DALI Constant Current CCT Dimming Led DriverDALI Constant Current CCT Dimming Led Driver
  • DALI Constant Current CCT Dimming Led DriverDALI Constant Current CCT Dimming Led Driver
  • DALI Constant Current CCT Dimming Led DriverDALI Constant Current CCT Dimming Led Driver
  • DALI Constant Current CCT Dimming Led DriverDALI Constant Current CCT Dimming Led Driver

DALI Constant Current CCT Dimming Led Driver

As a professional led driver manufacturer and supplier in China, Starwell factory’s versatile DALI Constant Current CCT Dimming Led Driver seamlessly integrates DALI-2 DT8 protocol for advanced, standardized color tuning (CCT) and dimming, alongside user-friendly Push Dimming for maximum installation flexibility.
Features:
· Output constant current led driver for single color DT8
· Range AC input :100-277VAC
· Efficiency up to 86%
· Built-in active PFC function
· Protections: short circuit/over current/over temperature
· Full protection plastic housing easy installation
· IP20 design for indoor installation
· Cooling by free air convection
· Dimming curve: Logarithmic (default) and Linear
· Dimming function: DALI Dimming: DALI protocol IEC62386 PUSH dimming function
· Strong compatibility, flicker-free dimming
· Suitable for LED lighting and moving sign applications

Send Inquiry

DATASHEET

Product Details

High-Performance DALI Constant Current CCT Dimmable LED Driver for Professional Lighting

Introduce intelligence, efficiency, and flawless control to your lighting projects with Starwell advanced DALI Constant Current CCT Dimming Led Driver. Engineered for professional architects, lighting designers, and system integrators, this driver is the cornerstone for creating dynamic, energy-efficient, and reliable lighting systems in commercial, retail, hospitality, and architectural applications.

This driver delivers pure, stable constant current, specifically optimized for DT8 LED modules. It ensures consistent, flicker-free illumination, protecting your LED investment and guaranteeing visual comfort. With a universal 100-277VAC wide input range, it is perfect for global projects and simplifies inventory for both new installations and retrofits.


Unlock unparalleled flexibility and control. Choose the driver that bridges intelligent protocol and practical simplicity.

At the heart of its performance is high energy efficiency up to 86%, significantly reducing operational costs and heat generation. The integrated active PFC (Power Factor Correction) ensures compliance with harmonic standards and maximizes power quality from the grid. Built for unwavering reliability, it features robust protections against short circuit, over current, and over temperature (SCP/OCP/OTP). Its compact, full-protection plastic housing ensures safe and easy installation, while the IP20 rating and free air convection cooling make it ideal for a wide range of indoor installations.

Our driver excels in control flexibility. It seamlessly integrates into any DALI-2 ecosystem (IEC 62386 protocol), enabling advanced dimming, grouping, and scene setting for smart building management. For simpler setups, the integrated PUSH dimming function offers a convenient manual control option. Choose between logarithmic (default) for perfect human-centric dimming or linear curves to suit specific application needs. This combination ensures strong compatibility and supremely smooth, flicker-free dimming from 100% down to the lowest levels.

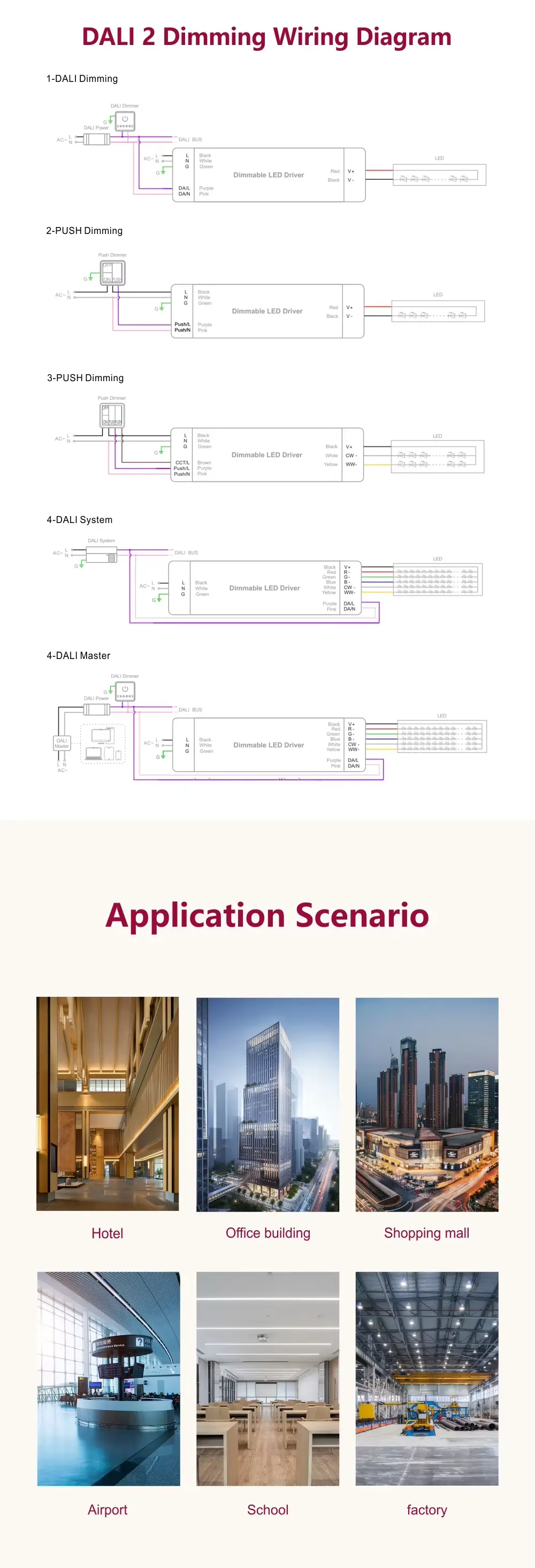

Application Scenarios

DALI Constant Current CCT Dimming Led Driver is suitable for high-end architectural, commercial, and hospitality projects, it empowers precise adjustment of light color temperature and intensity from a single driver. The DALI-2 DT8 ensures future-proof, interoperable control for sophisticated scenes and energy management, while the manual Push Dimming option simplifies setups where a dedicated control system isn't required.

Engineered for reliability and performance, it guarantees stable current output for consistent LED operation. Its 2-in-1 design streamlines inventory and adapts to diverse project needs—from automated smart buildings to simpler retrofit applications.


1. Commercial Offices & Retail: For adjustable ambient and accent lighting.

2. Hospitality: Creating mood and atmosphere in hotels and restaurants.

3. Architectural Facades & Cove Lighting: Precise dimming for dynamic effects.

4. Museums & Galleries: Flicker-free light for artifact and artwork display.

5. Moving Signs & Digital Signage: Providing reliable, constant current for vibrant LED arrays.


Empower your lighting designs with precision and intelligence. This DALI driver is the reliable, versatile, and smart choice for your next professional project.


Starwell DALI Constant Current DT8 Dimmable Led Driver Specification:

Model

KI-040-2C-DP2

Certificate

CE / SELV /Class 2 / Class P /Type HL / ROHS / REACH



Output

Rated current (A)

0.5

0.55

0.6

0.65

0.7

0.75

0.8

0.85

0.9

0.95

1.0

1.05

1.10

1.15

1.20

1.20

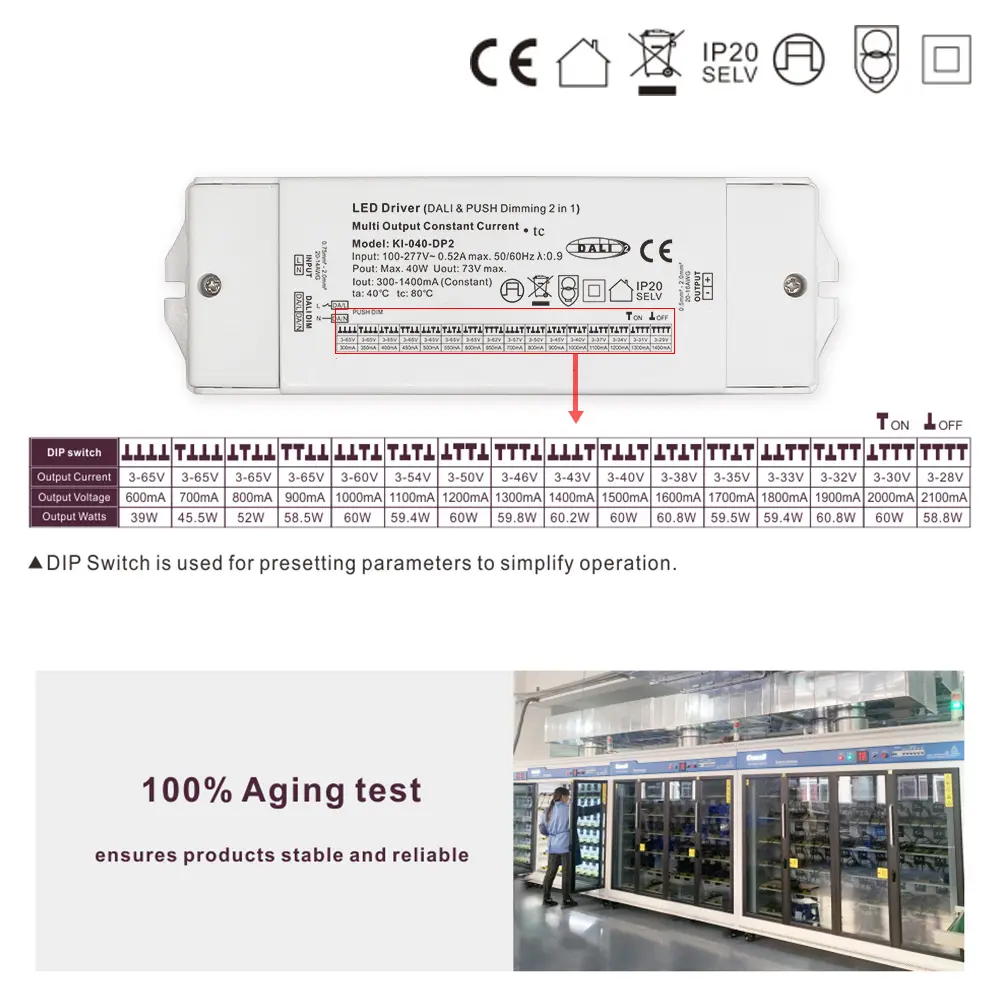

DIP Code

























DIP Code























Current Tolerance

±5%

DC Voltage (V)

6-42

6-40

6-38

6-36

6-35

6-33

6-33

No-load Voltage

55V (max)

Rated power

21.0

23.1

25.2

27.3

29.4

31.5

33.6

35.7

37.8

39.9

40.0

39.9

39.6

40.3

39.6

39.6






Input

Rated Voltage

100-277VAC

Rated Frequency

47-63HZ

Power Factor

0.97@120VAC 60Hz

0.93 @230VAC 50Hz

0.87 @277VAC 60Hz




THD(yp.)@full load

15.0%@120VAC 60Hz

22.0%@230VAC 50HZ

25.0%@277VAC 60HZ




Efficiency (Typ.)

83%@120VAC 60Hz

85% @230VAC 50Hz

85%@277VAC 60Hz




No load power

0.70W@120VAC 60Hz

0.7W@230VAC 50HZ

0.65W@277VAC 60HZ




Standby power (W)

0.49W @120VAC 60Hz

0.47W @230VAC 50Hz

0.48W @277VAC 60Hz




AC Current (Max.)

0.50A

Inrush Current

21.4A, 4.2us@50%Ipeak 120VAC

41.0A, 4.2us@50%Ipeak 230VAC

49.4A, 4.0us@50%Ipeak 277VAC

Leakage current

<0.50mA


Protection

Short Circuit

Constant current mode, recovers automatically after fault condition is removed

Over temperature

Ambient temp. over 50℃±5℃, output current will be reduced to 50%;

Ambient temp. over 60℃±5℃, output current will be reduced to 0%; ambient temp. reduce to

45℃±5℃, recovers automatically.



Environmen

Working TEMP.

-40-+55℃

Working Humidity

20-90%RH, non-condensing

Storage

TEMP.Humidity

-40-+80℃,10-95%RH

TEMP. coefficient

±0.03%/℃ (0-50℃)

Vibration

10-500Hz, 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes


Safety&EM

Safety standards

EN61347-1 EN61347-2-13(EU) UL8750 CAN/CSA-C22.2 No.250.13 (US)

Withstand voltage

I/P-O/P:3.75KVAC (EU)

I/P-O/P:1.8KVAC (US)





Isolation resistance

I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH

EMC Emission

EN55015 EN61000-3-2,3(EU)

EMC Immunity

EN61000-4-2,3,4,5,6,11 EN61547 FCC 47 CFR Part 15 ,Subpart B (US)

Others

Weight

0.225Kg

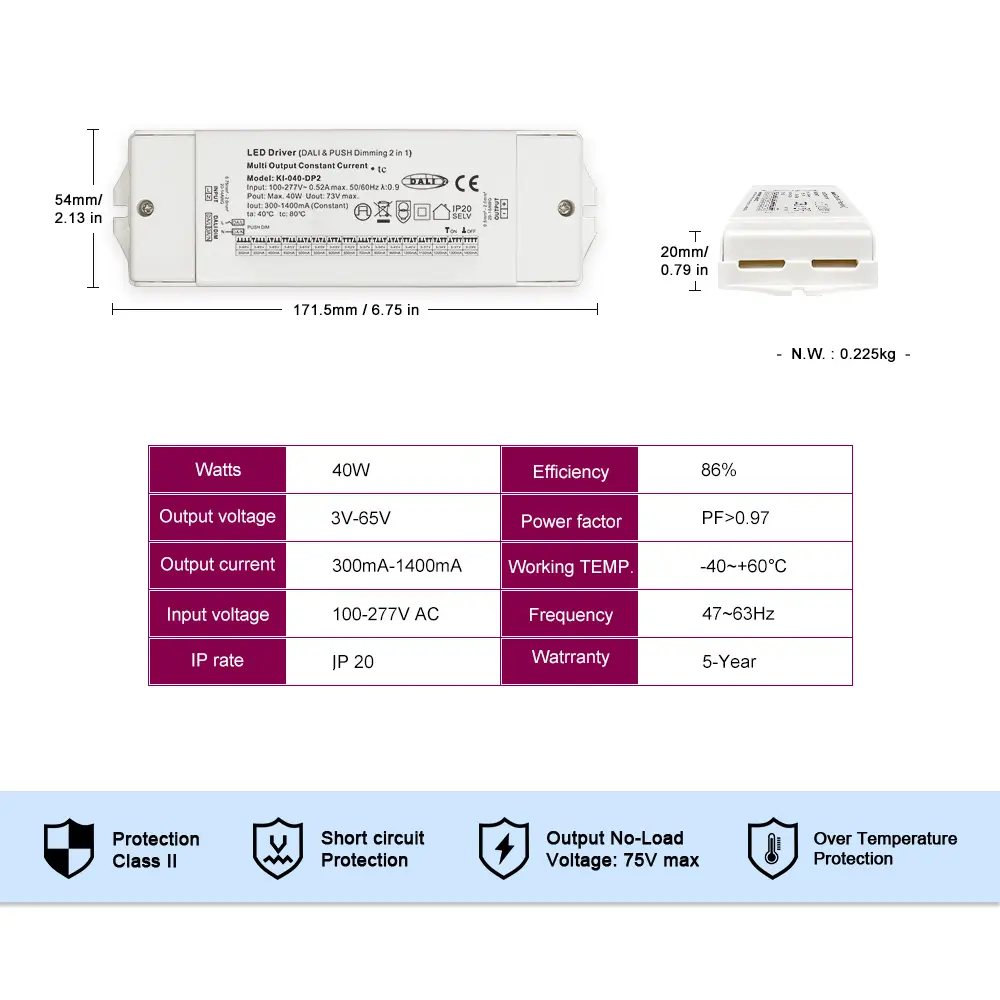

Size

171.5*54*20mm(L*W*H)

Packing

250*190*135mm 20PCS/CTN

FAQ:

1. What is the useful life of the power supply?

We offer a 5-year warranty on the power supply. During this period, if there is any quality problem, can be replaced free of charge.

2. Is there a minimum order quantity for bulk purchases?

There is no minimum order quantity.

3. Can you provide custom branding services?

Very good. We support personalization, including Logo, colour, pattern, size and more.

4. How long is the production cycle of the product?

Typically, if stock is available, the lead time is less than 7 days. Please consult the specific time.

5. Is the product certified?

Yes, our products have been CE, SAA, ROHS, UL, CB, TUV, CCC and other international certification.

6. Which logistics methods are used to ship?

We usually ship by UPS, FedEx, DHL and other international express. If you have special logistics needs, please inform in advance.

7. Can special product parameters be customized?

Very good. We support the customization of product parameters, you only need to inform the specific requirements in advance, we will evaluate and communicate with the engineer.

8. Plug Accessories Available?

Yes, we offer a variety of standard plugs, such as Australian plug, American plug, etc.
