China 60W DALI Constant Current Driver Suppliers, Manufacturers - Factory Direct Price

Product Details

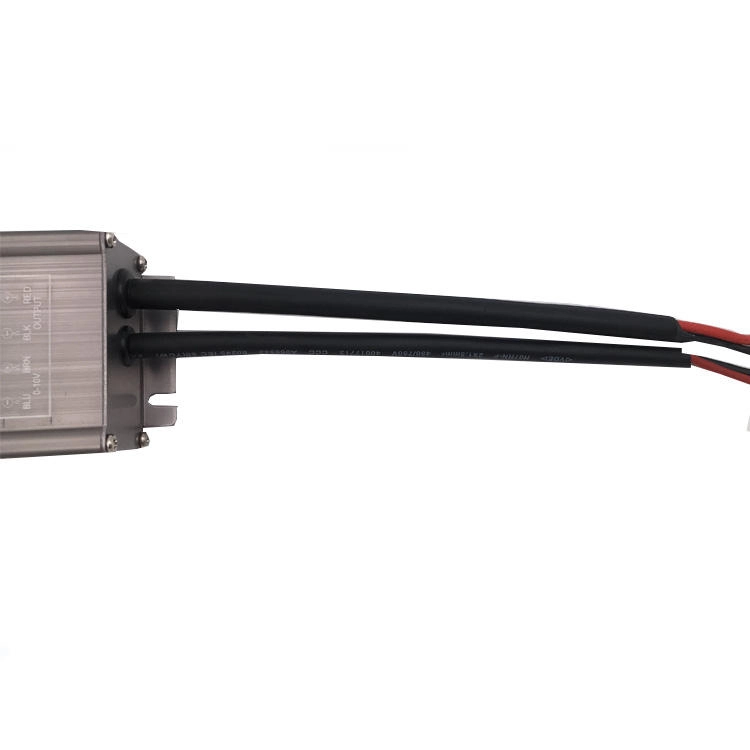

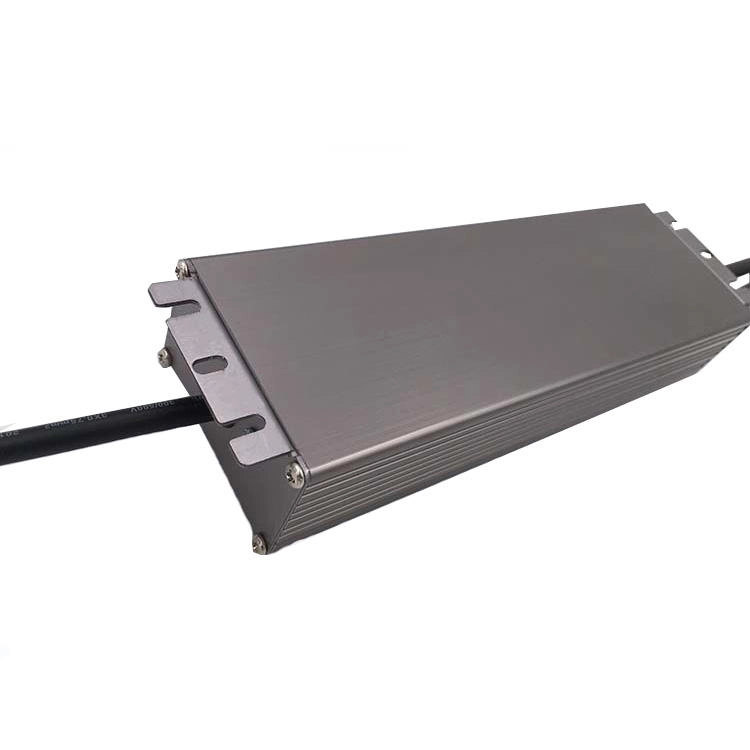

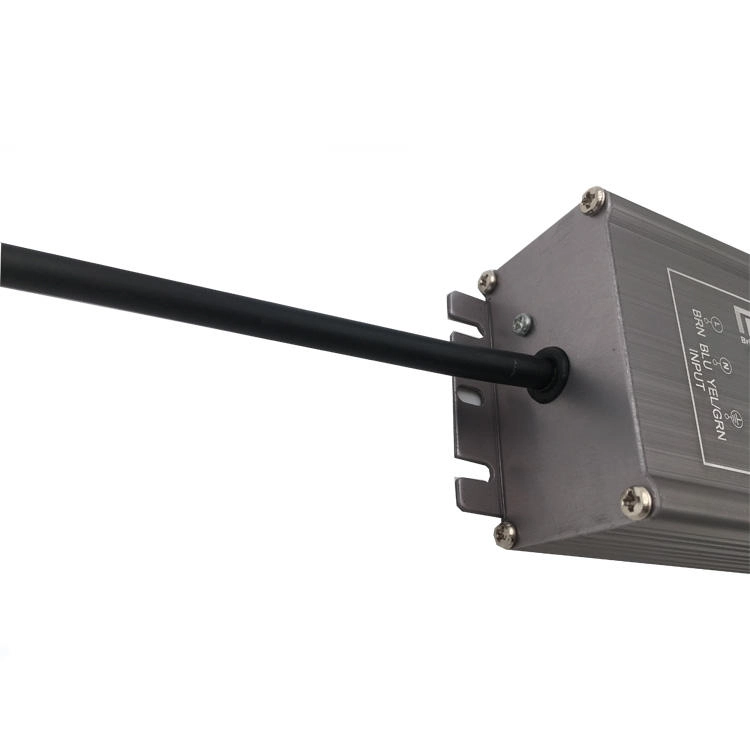

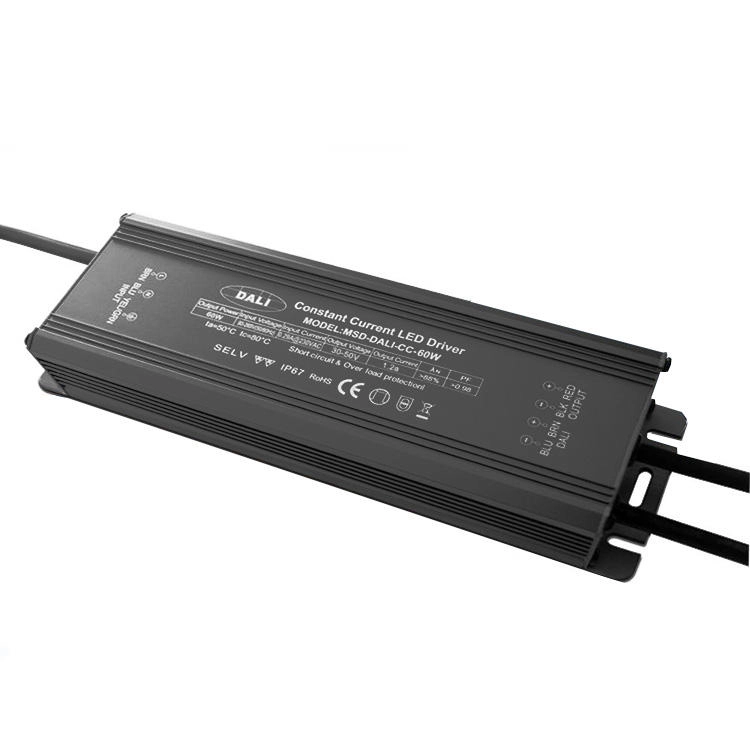

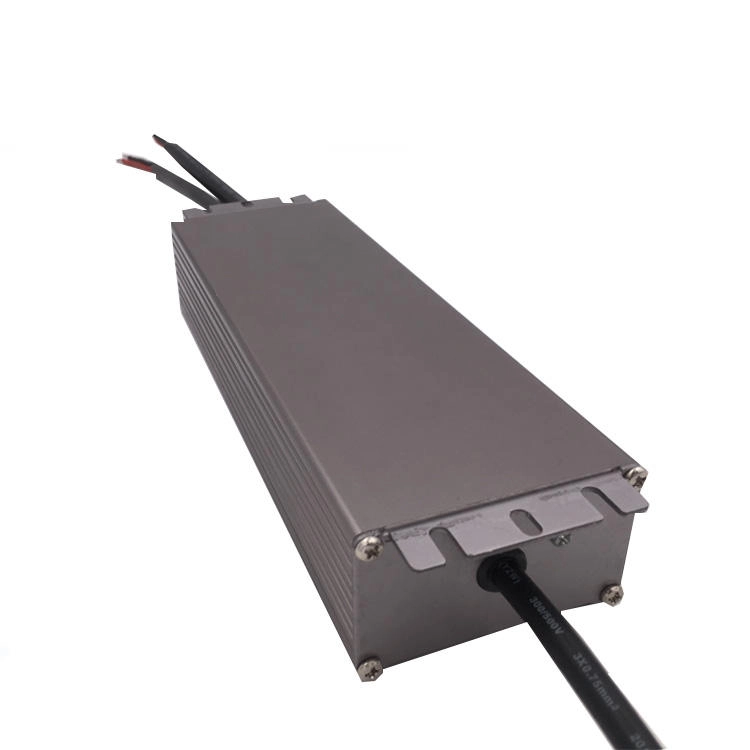

As the professional manufacturer, Starwell would like to provide you high quality 60W DALI Constant Current Driver , which integrates the internationally accepted DALI-2 Digital Addressable Lighting Interface Protocol and is designed for LED lighting systems requiring precise dimming and stable current. Whether it is a commercial space, office environment or high-end residential, it can provide constant light efficiency, smooth dimming and long life guarantee for your LED light strip, module or array.

Product Specification

Model	060D
Output Voltage	27-40V
Output Current	1-1.5A
Power	60W
Efficiency	89%@110VAC
	90%@220VAC
Frequency	50-60Hz
Power Factor	PF>0.85@110VAC PF>0.9@230VAC
Standby power	<1W
Protection	Short Circuit	Hit cup,recovers after resart
	Over voltage	Hit cup,recovers after fault condition is removed
	Over Load	Hic cup,recovers after fault condition is removed
	Over temperature	No Output ,recovers after temperature<110℃
Safety&EMC	Surge	L-N:2KV
	Withstand Voltage	I/P-O/P:3.75KVAC/1min/5mA;I/P-GND:2KVAC/1min/5mA
	Safety Standards	IEC/EN61347-1,IEC/EN61347-2-13
Environment	Working Temp	-25℃~45℃
	Storage Temp	-40℃~85℃
	Tc	85℃
	IP Rating	IP67
Others	Dimension	1545635MM
	Weight	0.8KG

Power & Output: 60-watt capacity with constant current regulation.

Control Interface: Fully DALI-2 compliant (IEC 62386 standard) for advanced digital control and interoperability.

Dimming Capability: Smooth, flicker-free dimming from 0% to 100% via DALI commands.

Programming & Addressing: Individually addressable via DALI for group, scene, and zone configuration within a networked lighting system.

Protections: Comprehensive safeguards including over-current, over-voltage, short-circuit, and over-temperature protection.

Efficiency: High power efficiency (>90% typical) with low standby power consumption.

Housing: Compact, robust casing suitable for enclosed luminaires or installation in electrical cabinets.

Compatibility: Designed for constant current LED modules, strips, and arrays requiring a regulated current supply.

Packing and Shipping:

To better ensure the safety of your goods,

professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ:

1.What is the lifespan of the power supply?
5-year warranty.During this term,you can get a new replacement if there are any questions about the quality.
2.What is the minimum quantity for mass purchase?
No MOQ.
3.Is it possible to customize this for my brand name?
Yes,we can provide personal customization (logo,color,graphic,dimensions...)for you.
4.What is the lead time for this product?
Usually,its lead time is within 7 days if it's stock.You can ask us for more details!
5.Do you have certifications for your products?
Yeah,we have CE,SAA,ROHS,UL,CB,TUV,ETL,CCC...certificates.
6.What is the shipping method?
Usually,we ship by UPS,Fedex,DHL...If you have any special requirements for logistics, please inform us in advance.
7. Can I customize special product parameters?
Of course.We can customize product parameters for you,and you can tell us about the paratemeters in advance so that we can discuss it with our engineer.
8.Can you provide me with plug?
Yes,we have AU plug,US plug...
