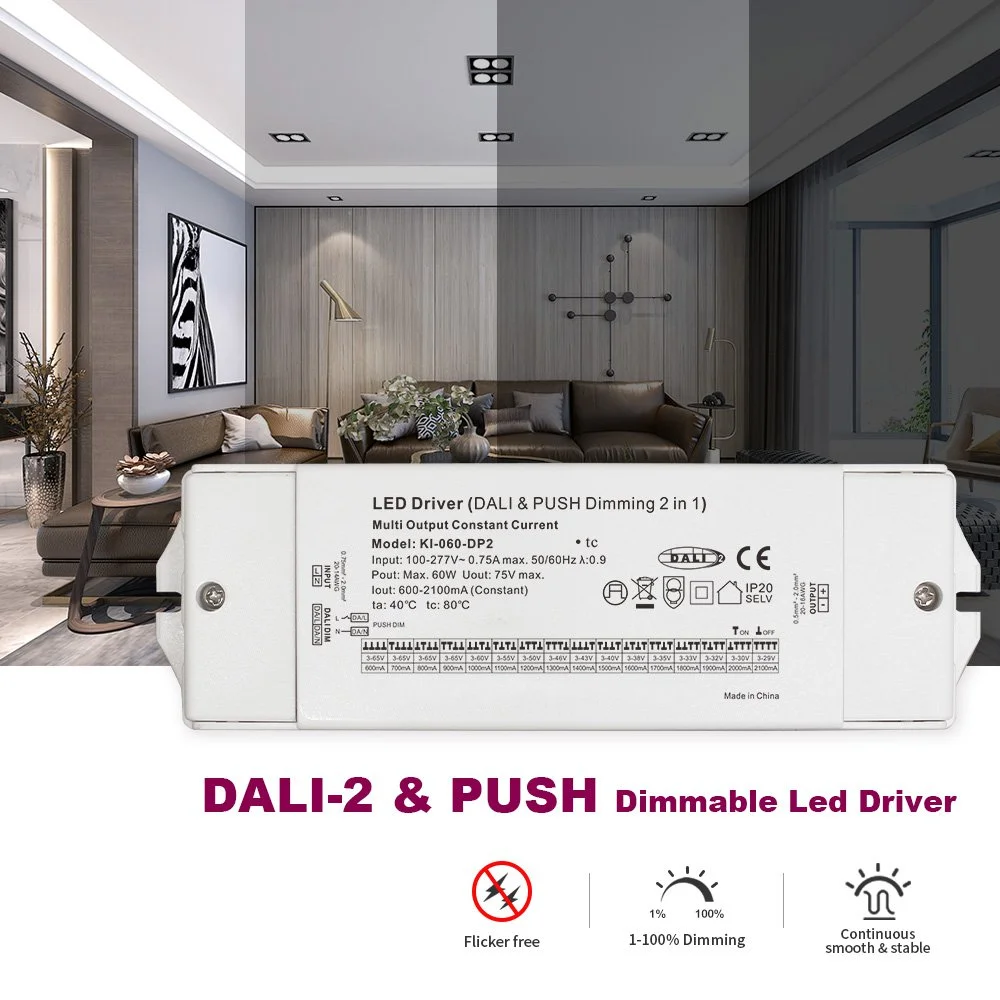

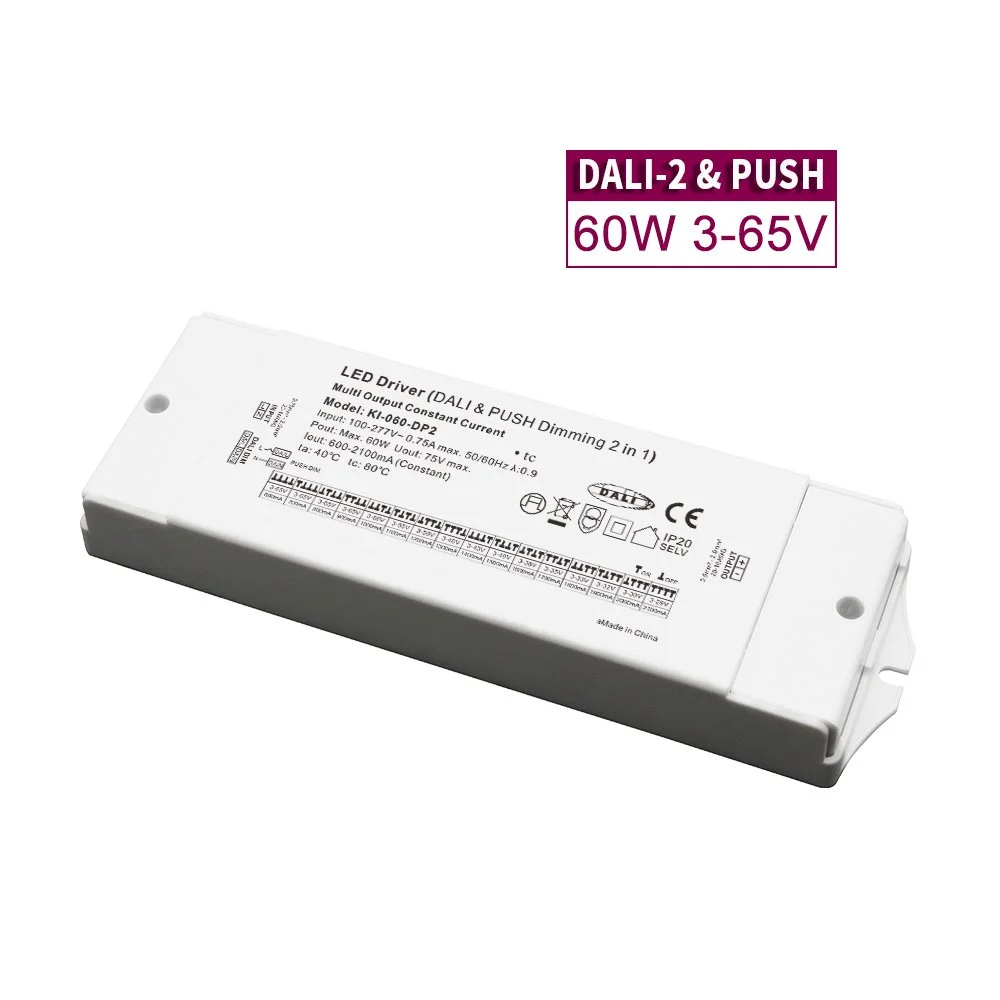

60W Constant Current DALI Dimming CCT LED Driver

Starwell factory’s high quality 60W Constant Current DALI Dimming CCT LED Driver is specially designed for high-end commercial and residential lighting. It adopts advanced constant current control technology to ensure stable current for LED beads during full power and dimming processes, effectively extending the lifespan of the lamps. It supports the DALI-2 standard digital dimming protocol, allowing for smooth stepless dimming and on/off control through a DALI control system, and can be easily integrated into smart lighting systems.

Features:
Output constant current led driver for single color DT8
·Range AC input :100-277VAC
·Efficiency up to 86%
·Built-in active PFC function
·Protections: short circuit/over current/over temperature
·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Dimming curve: Logarithmic (default) and Linear
·Dimming function: DALI Dimming: DALI protocol IEC62386 PUSH dimming function
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications

Send Inquiry

Product Details

As a professional led driver in China, Starwell factory’s durable 60W Constant Current DALI Dimming CCT LED Driver features color temperature adjustment, enabling users to linearly adjust the light color within the range of 2700K to 6500K to meet the atmosphere requirements of different scenarios. The product has strong compatibility and is suitable for various CCT dual-color temperature LED modules. 60W Constant Current DALI Dimming CCT LED Driver is equipped with multiple protections such as overvoltage, over-temperature, and short circuit, ensuring safety and reliability. The compact aluminum housing design provides excellent heat dissipation and is suitable for concealed installation, making it an ideal driver solution for high-quality variable color temperature lighting projects.

Product Features

1. Precise constant current and wide range compatibility

As a 60W constant current driver, it adopts advanced closed-loop constant current control technology to ensure the output current (typical value is 700mA, which can be customized according to the LED module requirements of customers) is highly stable. This design effectively avoids light attenuation or color deviation caused by current fluctuations in LEDs, fundamentally guaranteeing the long-term brightness and service life of the lamps. Its wide voltage input range and constant current output characteristics make it perfectly compatible with various specifications of LED downlights, spotlights, panel lights, linear lights and light strip modules.

2. DALI-2 Standard Smart Control

The product strictly adheres to the latest DALI-2 protocol standard, going beyond the basic function of dimming switches. It enables smooth, stepless dimming from 0.1% to 100% without flicker or noise. Through the DALI system, individual addressing of lamps, group control, scene presetting (such as meeting mode and leisure mode), timed tasks, and energy monitoring can be easily achieved. It seamlessly integrates into the building's intelligent management system and serves as the cornerstone for creating efficient and energy-saving smart lighting.

3. Independent CCT color temperature continuous adjustment

The core highlight of this driver lies in its integration of CCT dimming functionality. Users can perform continuous linear adjustment within a broad color temperature range from 2700K (warm yellow light) to 6500K (cool white light). A single lamp can meet the demands of different times and activities for the lighting environment - high color temperature white light in the morning to invigorate and refresh, and low color temperature yellow light in the evening to create a warm atmosphere, significantly enhancing the comfort and functionality of the space.

Application scenarios and reliability

Whether it's LED panel lights in offices, LED downlights in shopping malls, hidden light strips in hotel corridors, or accent lighting in home spaces, this driver is the ideal choice. The compact aluminum alloy housing with full potting ensures excellent heat management and long-term stable operation. The built-in multiple protection circuits for overvoltage, overcurrent, short circuit and overheat provide comprehensive safety protection for the entire lighting system.

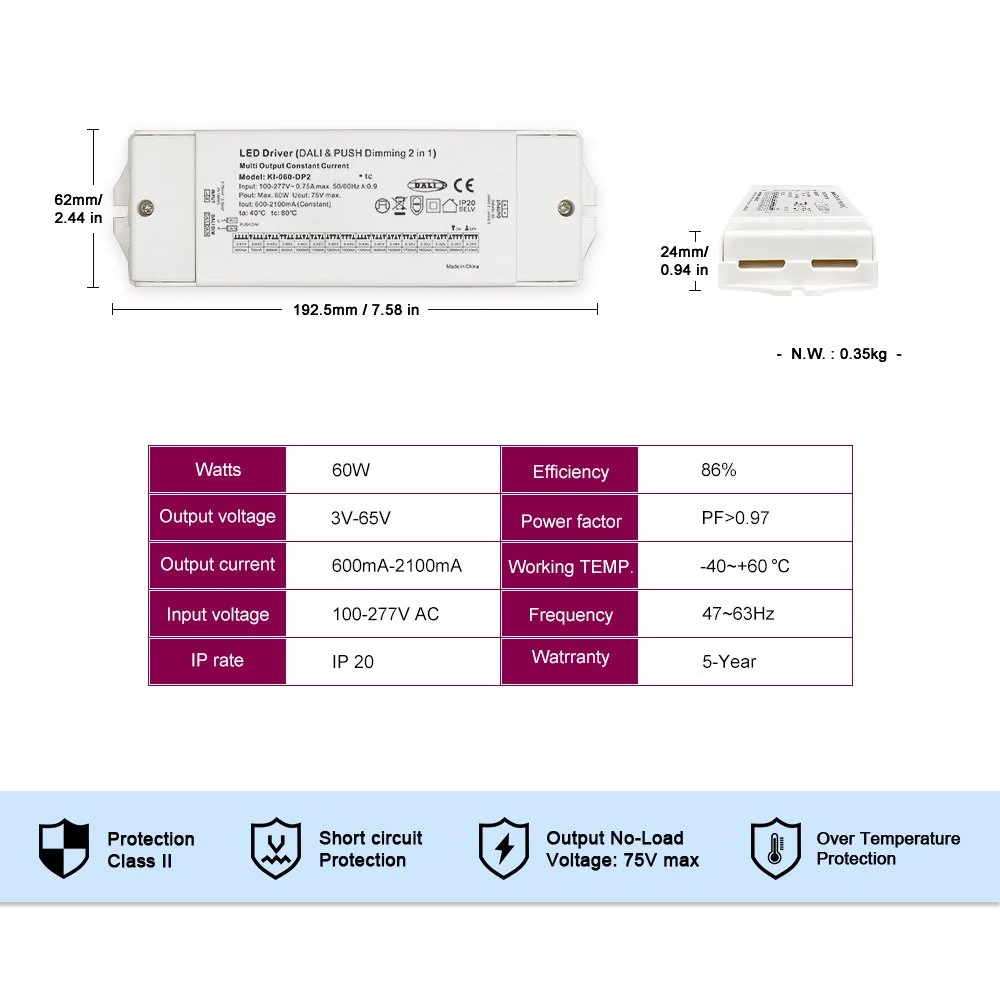

Specification

Product Name	60W constant current dali dimming CCT led driver
Material	PC
Input Voltage VAC	100-277V
Brand	Starwell
Output Voltage VDC	75V Max

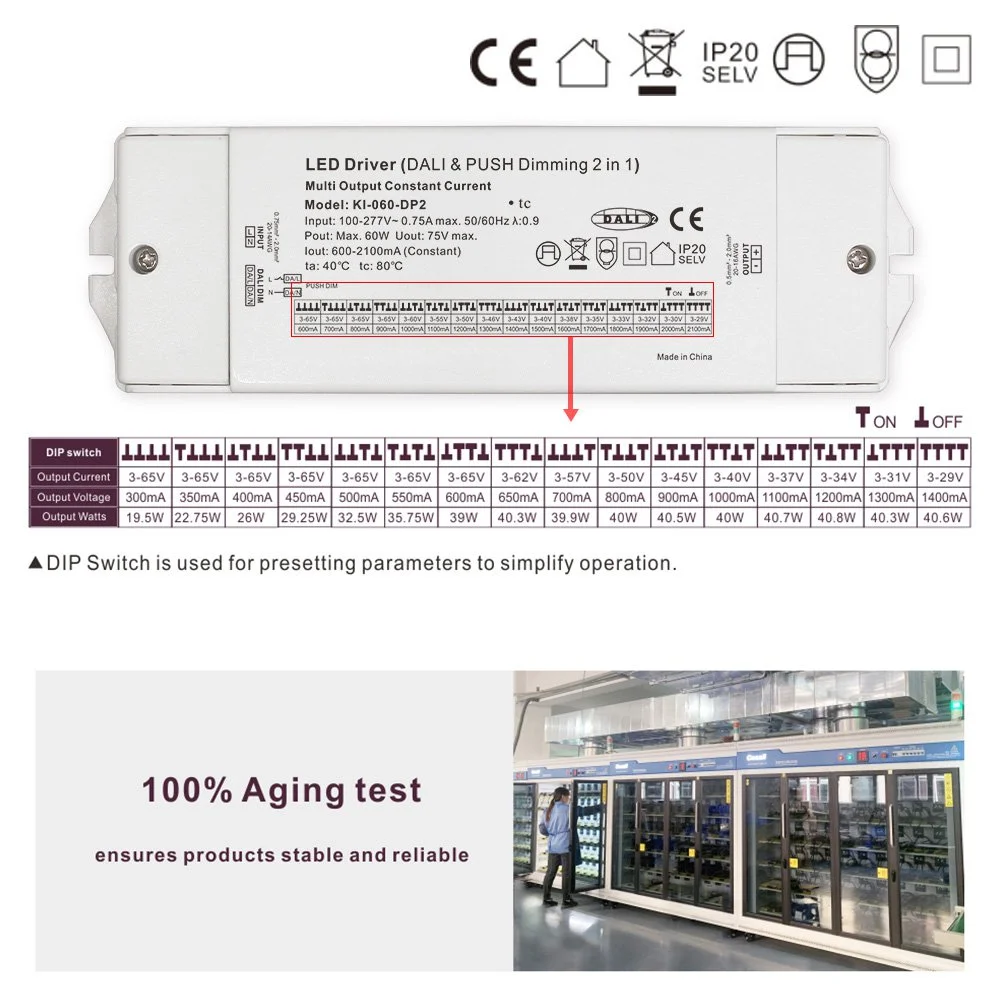

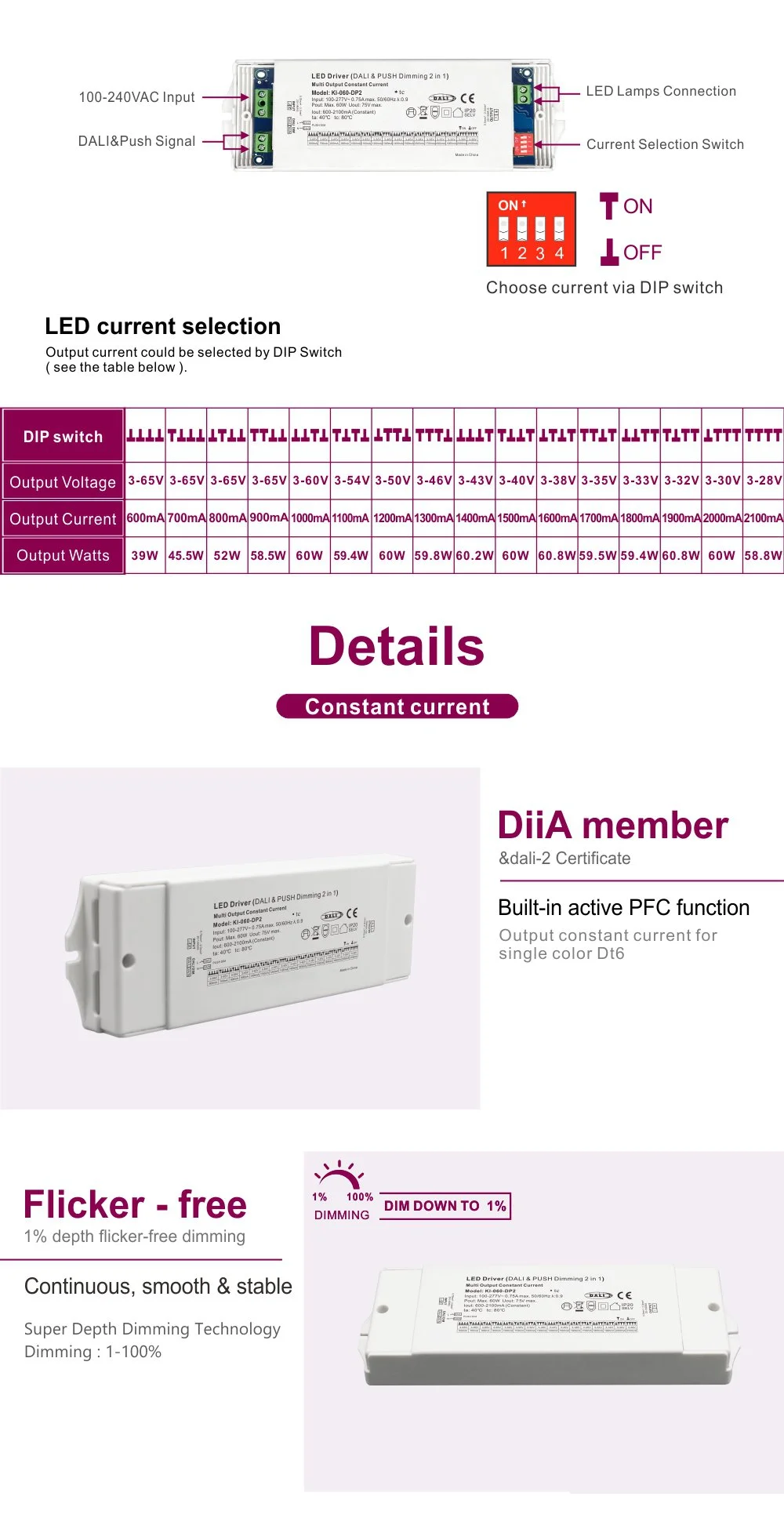

Output Current & channel mA	600~2100mA (Constan current )
Output Power W	60W
IP Rate	IP 20
Dimming	Dali-2&push
