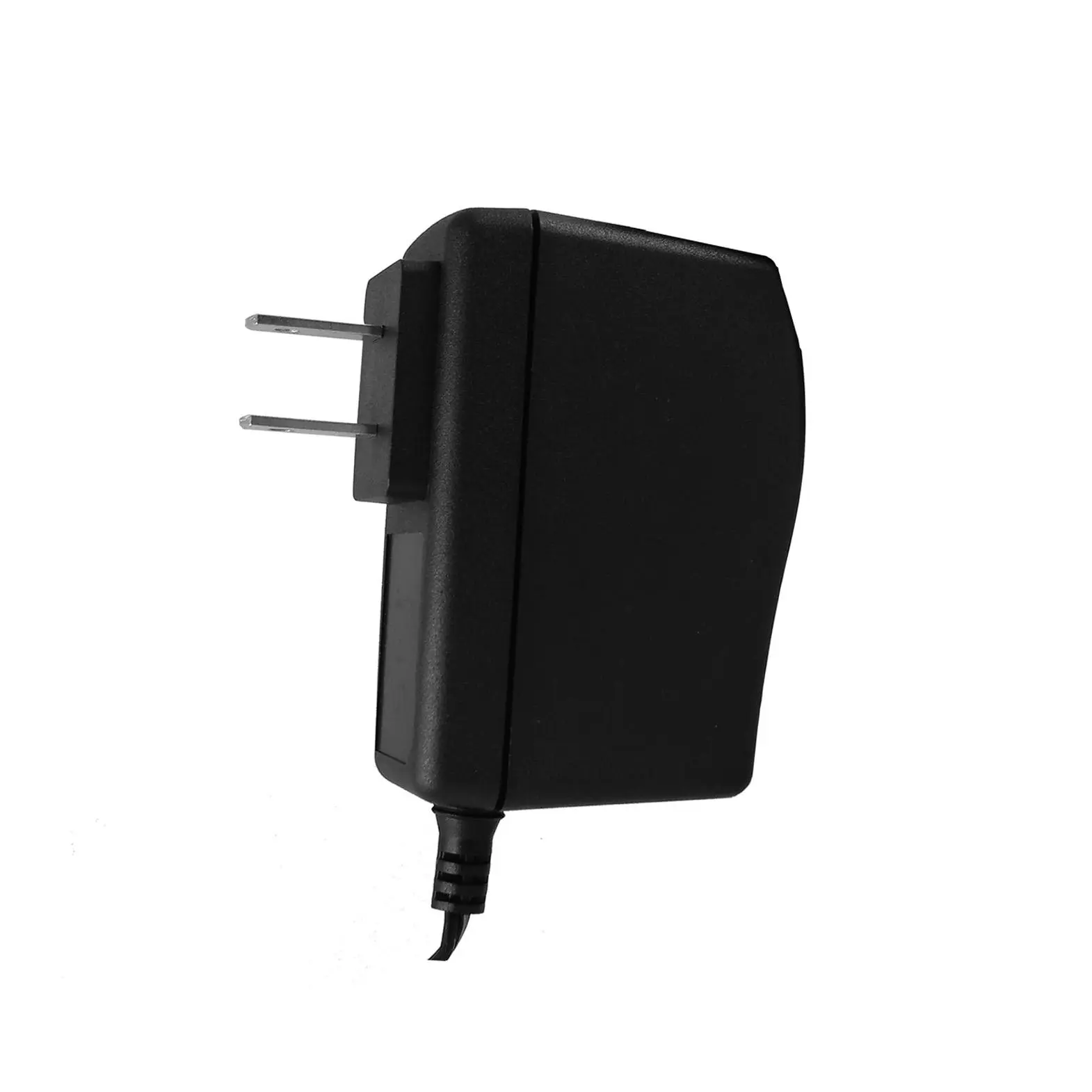

6.5W 8V 0.81A US Wall Mount Medical Power Adapter with USB Output Port

Wholesale 6.5W 8V 0.81A US Wall Mount Medical Power Adapter with USB Output Port which manufactured by STARWELL. We offer cheap price and good quality Power Adapter with USB Output Port.

Quick charger Features:
Rated output: 6.5W, 8V 0.81A for stable power supply. Built-in USB output port for dual device charging. US standard wall mount plug for direct socket installation. Medical-grade safety design for medical equipment application. Over-current, over-voltage and short-circuit protection. Compact lightweight design for easy portability and installation. Low ripple and low noise performance for medical device use. Wide input voltage range for global household power grid. High efficiency energy-saving circuit to reduce power consumption. Strict medical safety certification and reliable insulation performance.

Send Inquiry

Product Details

This 6.5W 8V 0.81A US Wall Mount Medical Power Adapter with USB Output Port manufactured by Starwell factory from China is a professionally designed power supply tailored for medical device applications. Adopting a US standard wall plug design, it features an integrated compact structure that enables direct wall mounting without extra cords, saving installation space and offering great portability. Equipped with a dedicated USB output port, it supports convenient power supply and charging for multiple compatible devices simultaneously.

Built with medical-grade circuit and insulation technology, the adapter delivers stable 8V 0.81A constant output with low ripple and low noise, ensuring safe and steady operation of precision medical equipment. It is embedded with comprehensive protection functions including overvoltage, overcurrent, short circuit and overheating protection to safeguard devices and users. With wide AC input voltage compatibility, it adapts to mainstream household power grids. Boasting high energy conversion efficiency and eco-friendly low power consumption, it meets strict medical safety certification standards, making it a reliable, durable and ideal power solution for various home and clinical medical electronic devices.

Product parameter

Input Voltage	90 ~ 264 VAC
Input Current (rms)	0.2A Max.
Output Voltage	Anywhere output 3 ~ 28 VDC
Efficiency	67% min. at full load
Voltage Regulation	± 5% max
Leakage current	max. 0.1mA
Withstand Voltage	I/P - O/P : 5656 VDC
Operating Temperature	-10 °C ~ +50 °C (derated linearly from 100% load @ 40 °C to 75% load @ 50 °C)
Storage Temperature	-20°C ~ 85°C
Operating Humidity	20% to 90% RH
Protections	OVP, OLP, Short Circuit Protection
Safety Standard	UL/EN60601-1, CE, CB
EMI Standard	CISPR-11 / EN55011 / FCC part 18 class B

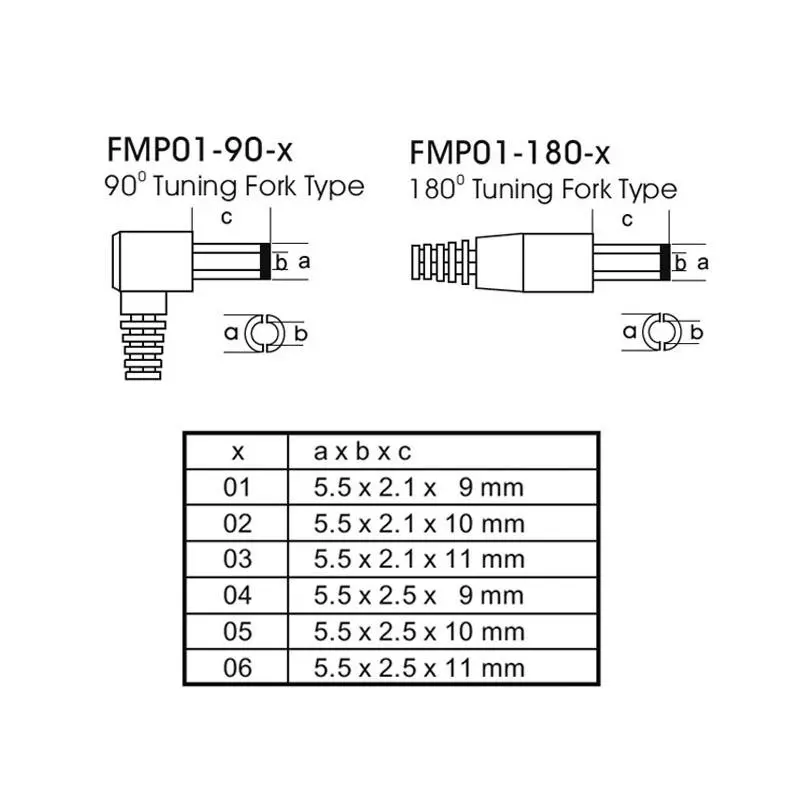

Standard Output Connector	DC Barrel Jack
Cable/length	UL2468 / 5Ft.

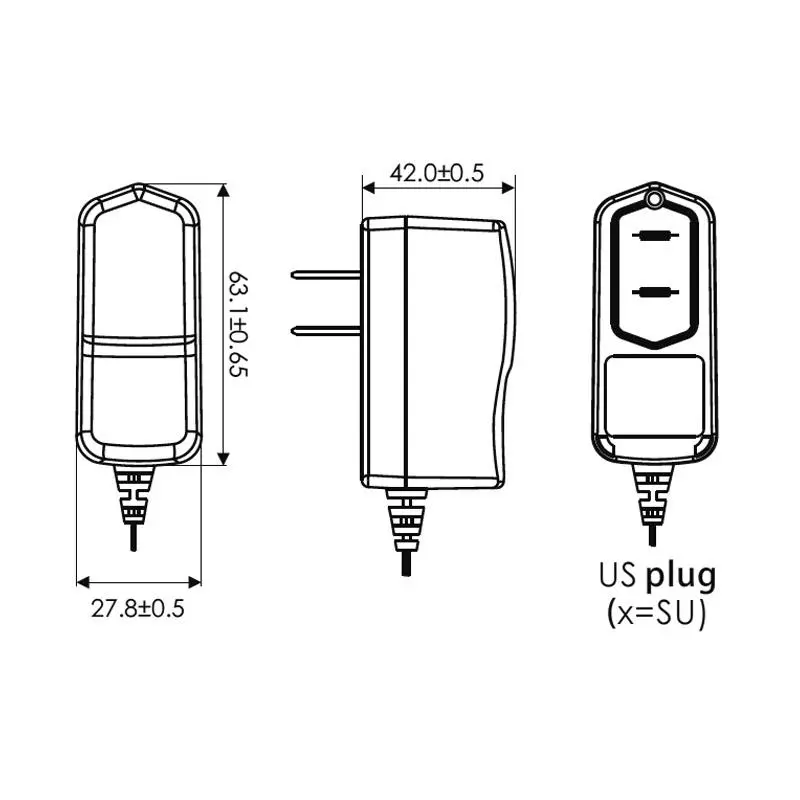

Interchangeable type / size	L56 x W36 x H34 mm (w/DC cable) ; L56 x W36 x H42.0 mm (w/USB Socket)

Model No.	I/P Vol.	O/P Vol.	O/P Current	O/P Watts (max.)
FRM06-S03-x	90~264VAC	3.0 VDC	1.33A	4.0W
FRM06-S03-x		3.3 VDC	1.21A
FRM06-S03-x		3.4 VDC	1.18A
FRM06-S03-x		4.2 VDC	0.95A
FRM06-S05-x	90~264VAC	4.7 VDC	1.28A	6.0W
FRM06-S05-x		5.0 VDC	1.20A
FRM06-S05-x		5.4 VDC	1.11A
FRM06-S07-x	90~264VAC	6.0 VDC	1.00A	6.0W
FRM06-S07-x		6.5 VDC	0.92A
FRM06-S07-x		7.0 VDC	0.86A
FRM06-S07-x		7.5 VDC	0.80A
FRM06-S09-x	90~264VAC	8.0 VDC	0.81A	6.5W
FRM06-S09-x		9.0 VDC	0.72A
FRM06-S09-x		10.0 VDC	0.65A
FRM06-S12-x	90~264VAC	12.0 VDC	0.54A	6.5W
FRM06-S12-x		13.6 VDC	0.48A
FRM06-S12-x		14.4 VDC	0.45A
FRM06-S15-x	90~264VAC	15.0 VDC	0.47A	7.0W
FRM06-S15-x		16.5 VDC	0.42A
FRM06-S15-x		18.0 VDC	0.39A
FRM06-S24-x	90~264VAC	20.0 VDC	0.35A	7.0W
FRM06-S24-x		24.0 VDC	0.29A
FRM06-S24-x		27.0 VDC	0.26A
