300W PD Charger
  • 300W PD Charger300W PD Charger
  • 300W PD Charger300W PD Charger
  • 300W PD Charger300W PD Charger
  • 300W PD Charger300W PD Charger

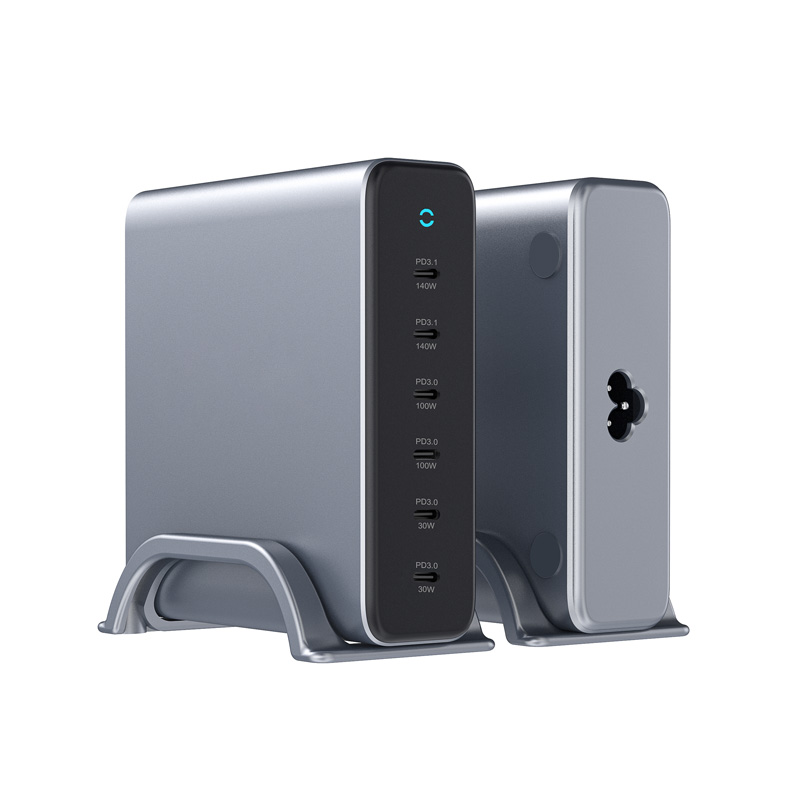

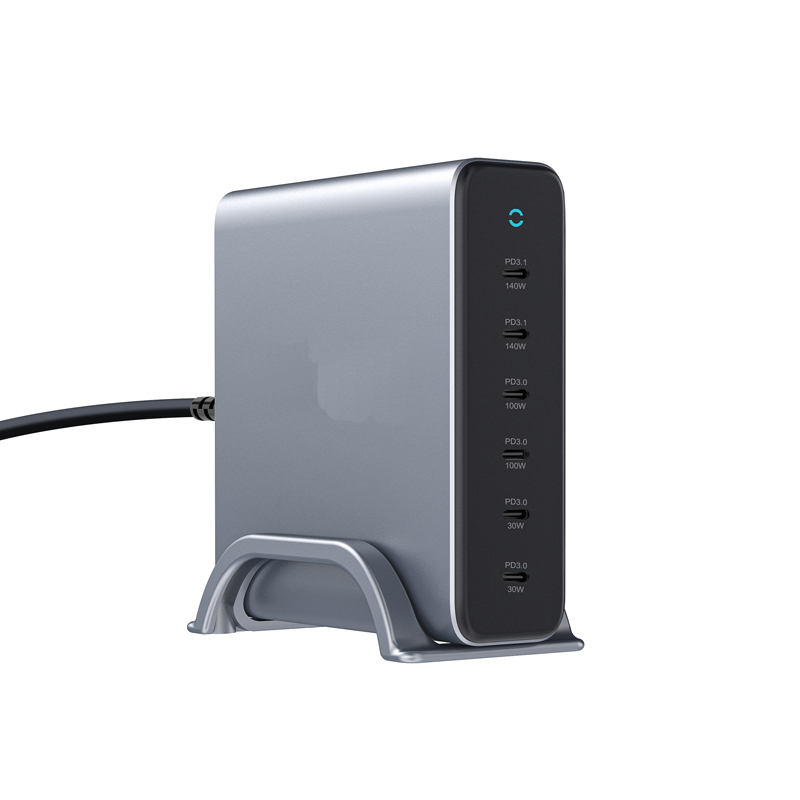

300W PD Charger

Our New hot selling product, 300W PD Charger, we offer customized logo service.
The charger come with 6 output ports, PD3.1 compatibility, and support for PPS protocol,
It offers reliable high-quality performance from a trusted manufacturer STARWELL.

Send Inquiry

DATASHEET

Product Details

Power Delivery (PD) 3.1: The charger is built with PD3.1 technology, which is the latest version of the Power Delivery standard. PD3.1 allows for faster charging speeds and more efficient power delivery.


Six USB-C Ports: The charger is equipped with six USB-C ports, providing ample connectivity options for charging multiple devices simultaneously. USB-C ports are widely used and offer fast charging capabilities.


Individual Port Power: Each USB-C port on the charger can deliver a maximum power output of 140W. This high power capacity ensures that your devices can charge quickly and efficiently.


Total Power Output: The charger boasts a total power output of 300W. This means that even if you have multiple devices connected and charging simultaneously, the charger can handle the power demands efficiently.


C6 and C8 Inputs: The charger supports both C6 and C8 inputs. C6 refers to a standard IEC C6 power cord, commonly used for desktop computers, monitors, and other electronic devices. C8 refers to a standard IEC C8 power cord, typically used for smaller devices like game consoles, routers, or audio equipment. This dual input compatibility provides flexibility for various power cord options.


STARWELL Manufacturing: The charger is produced and manufactured by STARWELL, a reputable company known for its high-quality electronic products. STARWELL has a strong reputation for reliability and performance in the industry.


300W GaN fast Charger Features:

● Universal input: 100-240VAC 50-60Hz 2.8A

● Output power 300Watts

● Plug type: C8/C6 inlet

● USB port: 6 x USB C port or 5 x USB C + 1 x USB A port

● Port 1: 5V3A,9V3A,12V3A,15V3A,20V5A,28V5A.PPS:3.3-20V5A (140W max)

● Port 2: 5V3A,9V3A,12V3A,15V3A,20V5A,28V5A.PPS:3.3-20V5A (140W max)

● Port 3: 5V3A,9V3A,12V3A,15V3A,20V5A,PPS:3.3-20V5A (100W max)

● Port 4: 5V3A,9V3A,12V3A,15V3A,20V5A,PPS:3.3-20V5A (100W max)

● Port 5: 5V/3A,9V/3A,12V/2.5A,20V/1.5A. PPS:3.3-11V/2.7A (30W max)

● Port 6: 5V/3A,9V/3A,12V/2.5A,20V/1.5A. PPS:3.3-11V/2.7A (30W max)

● High efficiency, long life span, and high reliability

● Warranty: 3 years

● Certificate: FCC CE RoHS


300W GaN pd charger Specification:

Item 300W PD charger, fast charger, usb wall charger
Model TX-6300D-GaN
Plug type C6 or C8 inlet
INPUT 100-240VAC 50/60Hz 2.8A
Output Port1: USB C See the model list.
Energy star level Eup 2.0, Doe VI, CEC VI, CoC VI
Efficiency >88%
Installing Available for the system of Safety Class I/II
Environment Operation Temp -10 ~ +65℃, 10 ~ 95% RH non-condensing
Storage Temp -20 ~ +85℃ (Refer to "Derating Curve")
Storage Humidity 20 ~ 90% RH non-condensing
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Cooling Method by NTC (natural cooling)
Safety&EMC Safety Standard UL 62368, ETL 62368, EN 62368, EN 61558
Safety Approvals UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
information, please contact us.
EMC Stardard EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
MTBF 50K hrs min. MIL-HDBK-217F (25℃)
Dimension 88*107.5*35mm (LxWxH) exclude plug
Packing 240g; 20pcs/6.0Kg/0.056CBM
Application usage Mobile Phone, LAPTOP, Game Player, Camera, Universal , Electric Tool, Home Security System, Household Electrical Appliances, Motorcycle / Scooter, Earphone, Medical Devices, MP3 / MP4 Player, Tablet, Industrial, Smart Watch, iphone, Samsung mobile phone, laptop charger
Advantage USB Charger with Full speed as the mobile phone or other USB equipment required,Compatible with Type-C and provides standard charging for non-Quick Charge devices
MODEL LIST:
MODEL USB PORT OUTPUT TOTAL POWER POWER
TX-6300D
(6xC port) 		Port 1: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A,28V5A.
PPS:3.3-20V5A (140W max) 		300W C1+C2 Output: 140W+140W C3+C4 output: 100W+100W C5+C6 Output：30W+30W C1+C2+C3+C4+C5+C6 Output：100W+65W+40W+30W+30W+30W Total：300W
Port 2: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A,28V5A.
PPS:3.3-20V5A (140W max)
Port 3: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A(100W max)
PPS: 3.3-21V5A
Port 4: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A(100W max)
PPS: 3.3-21V5A
Port5: USB C port 5V3A, 9V3A,12V2.5A, 20V1.5A(30W max)
PPS: 3.3-11V 2.7A
Port6: USB C Port 5V3A, 9V3A,12V2.5A, 20V1.5A(30W max)
PPS: 3.3-11V 2.7A

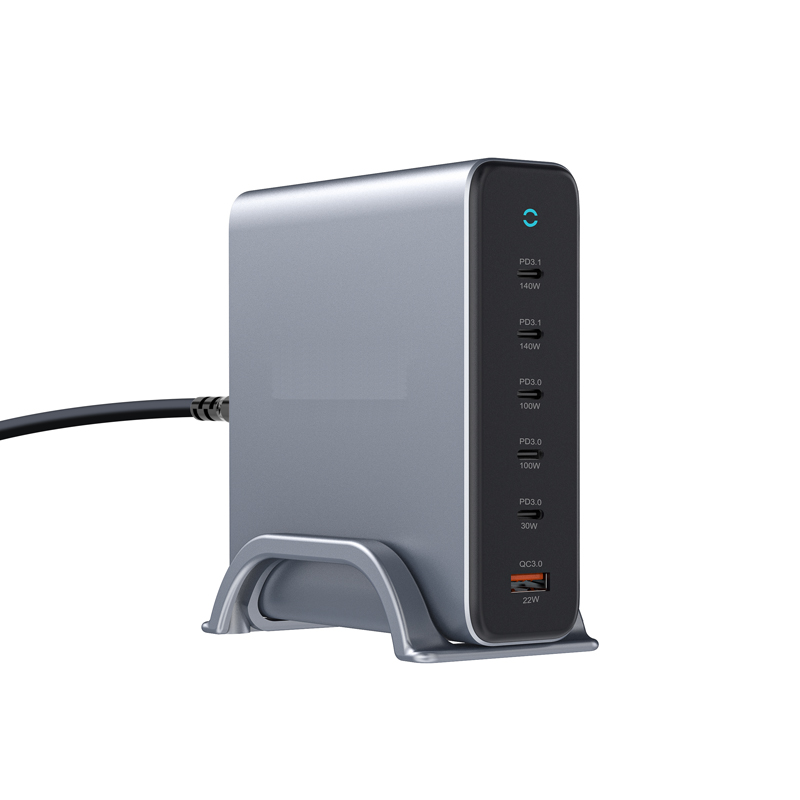

TX-6300QD
(5C1A port) 		Port 1: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A,28V5A.
PPS:3.3-20V5A (140W max) 		300W C1+C2 Output：140W+140W C3+C4 Output：100W+100W C5+C6 Output：30W+22W C1+C2+C3+C4+C5+C6 Output：100W+65W+40W+30W+30W+22W Total：300W
Port 2: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A,28V5A.
PPS:3.3-20V5A (140W max)
Port 3: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A(100W max)
PPS: 3.3-21V5A
Port 4: USB C PORT 5V3A,9V3A,12V3A,15V3A,20V5A(100W max)
PPS: 3.3-21V5A
Port 5: USB C PORT 5V/3A,9V/3A,12V/2.5A,20V/1.5A. PPS:3.3-11V/2.7A
Port 6: USB A PORT 5V3A,9V2A,12V1.5A,SCP:3.3-11V2A (22W Max)
