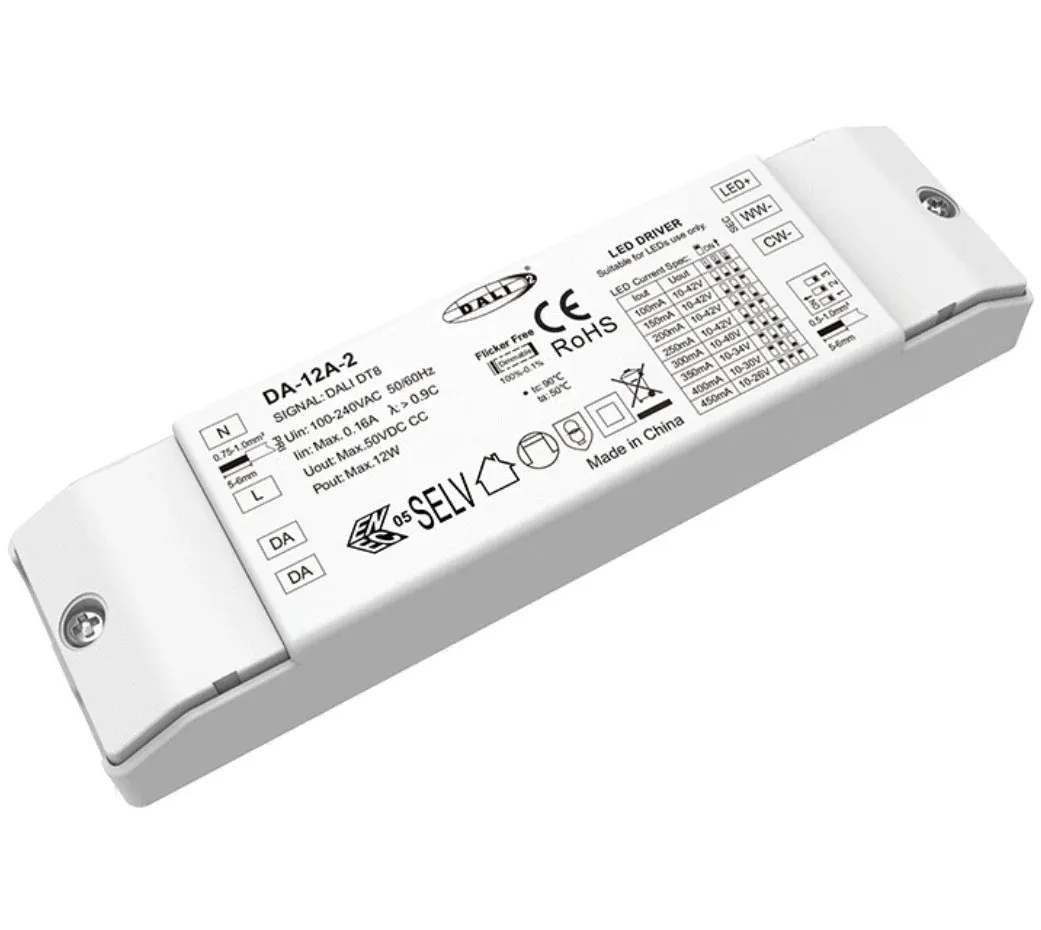

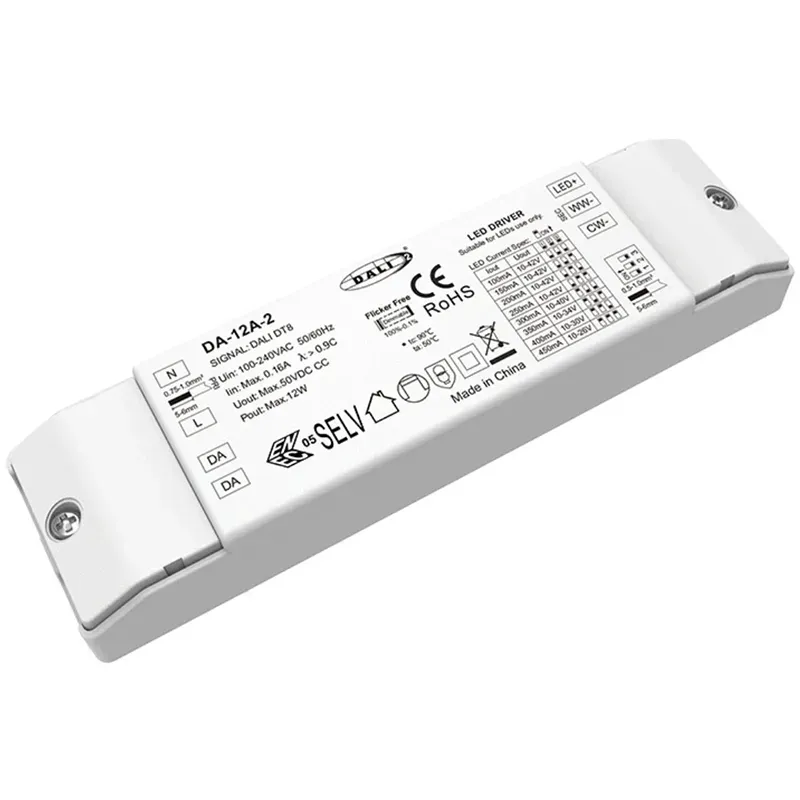

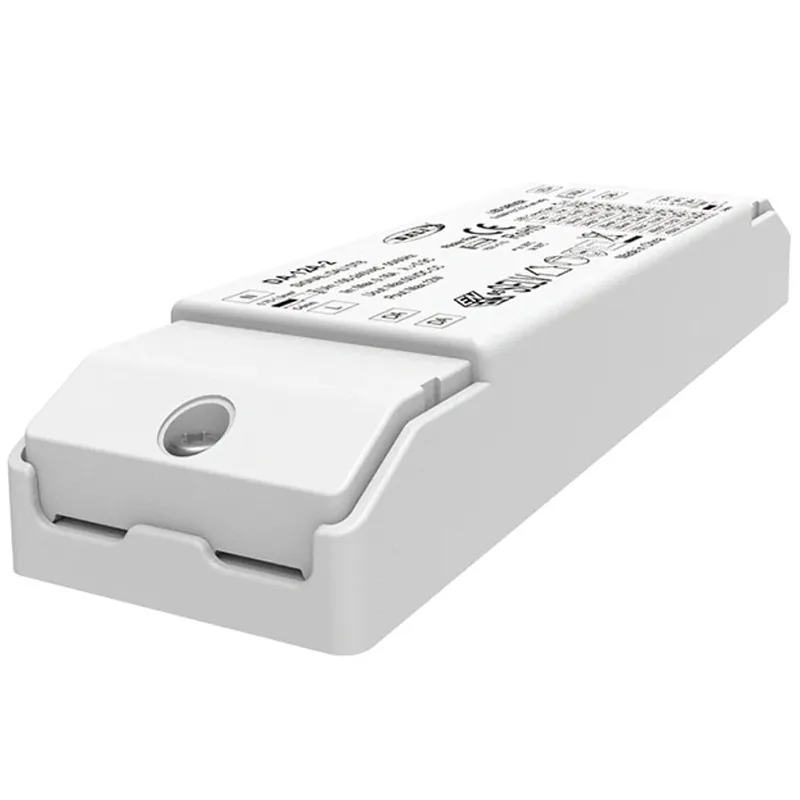

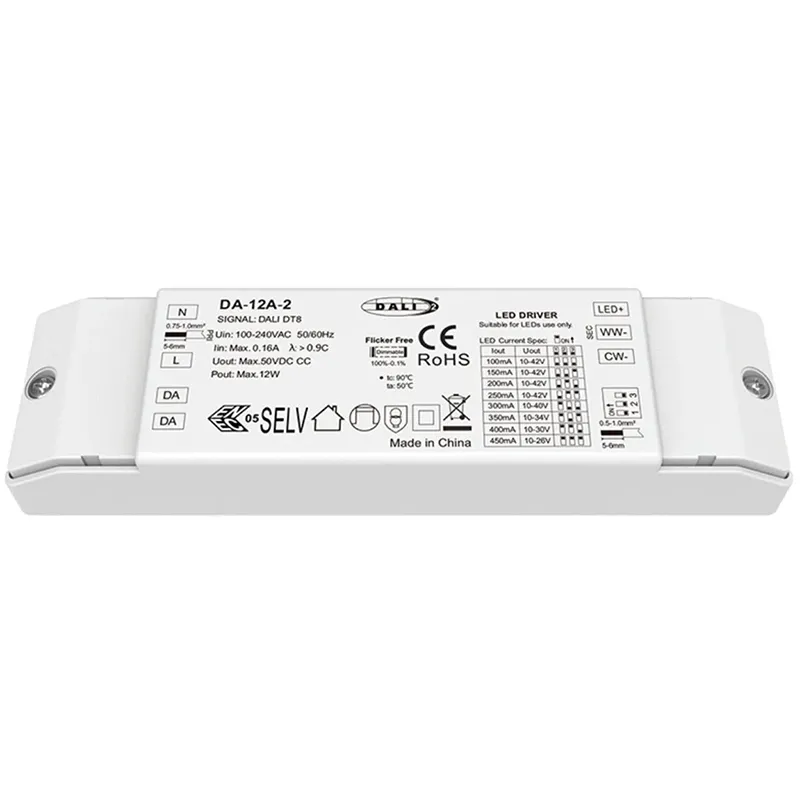

12W DALI CW WW CCT Dimmable LED Driver

STARWELL is a professional manufacturer and supplier of constant current 12W DALI CW WW CCT Dimmable LED Driver. With extensive experience in the LED lighting industry, STARWELL is dedicated to delivering innovative and reliable driving solutions. This product is a high-performance 12W constant current driver featuring a stable 1000mA output, intelligent CCT tuning from 2700K to 6500K, and full DALI-2 (DT8) protocol compatibility for precise dimming control. It incorporates multiple protection mechanisms and is designed for wide application in architectural, commercial, and tunable white lighting system.

Send Inquiry

Product Details

STARWELL factory's high quality 12W DALI CW WW CCT Dimmable LED Driver is engineered for premium, tunable white lighting applications requiring precise control and reliable performance. This compact, high-efficiency driver delivers a stable 12W (12V, 1000mA) constant current output, ensuring optimal performance and longevity for connected LED modules. Our high quality 12W DALI CW WW CCT Dimmable LED Driver features a sophisticated Dual DALI interface, supporting both DALI-2 dimming (DT8) for seamless 10%-100% smooth dimming and independent CCT (Correlated Color Temperature) tuning from 2700K warm white to 6500K cool daylight. With an impressive typical efficiency of >90% and a high Power Factor (PF>0.9), it minimizes energy waste and grid load. Housed in a compact IP20-rated case, it offers full-load operation within a wide temperature range of -20°C to +50°C, making it a versatile and intelligent power solution for architectural, commercial, and high-end residential lighting.

Key Selling Points:

1. Intelligent Dimming & CCT Tuning with DALI-2 DT8 Control

This Constant Current DALI CCT Dimmable LED Driver features a sophisticated Dual DALI interface and supports the standardized DALI-2 DT8 protocol. It enables not only smooth 10%–100% dimming but also independent linear adjustment of color temperature (CCT) from 2700K to 6500K. Through a unified DALI system, users can program dynamic lighting scenes—from cool daylight for focus to warm white for relaxation—delivering ultimate flexibility and smart lighting control for high-end commercial and residential applications.

2. High Efficiency & Reliable Performance, Backed by Data

Engineered for performance, this LED Driver achieves >90% typical efficiency and a high Power Factor (PF>0.9), ensuring significant energy savings and reduced grid load. Its Constant Current design provides a stable 1000mA output, essential for LED longevity and consistent performance. Built to endure demanding environments, it operates reliably across a wide temperature range from –20°C to +50°C, making it a dependable choice for varied installation conditions.

3. Compact, Future-Ready & Easy to Integrate

Housed in a compact IP20 case, this Dimmable LED Driver simplifies installation even in confined spaces such as LED profiles or fixture housings. By combining Constant Current output, broad CCT tuning, and industry-standard DALI-2 compatibility, it serves as an ideal and future-proof driver for tunable-white downlights, linear fixtures, and architectural lighting—seamlessly integrating into modern smart lighting ecosystems as a versatile Constant Current DALI CCT Dimmable LED Driver.

Product	DALI Dimmable led driver
Output power	12W
Lighting solutions service	Lighting And Circuitry Design
Output Current	100-450mA
Output Voltage	10-42VDC
Certificates	CE RoHS DALI2
Warranty	5 years
