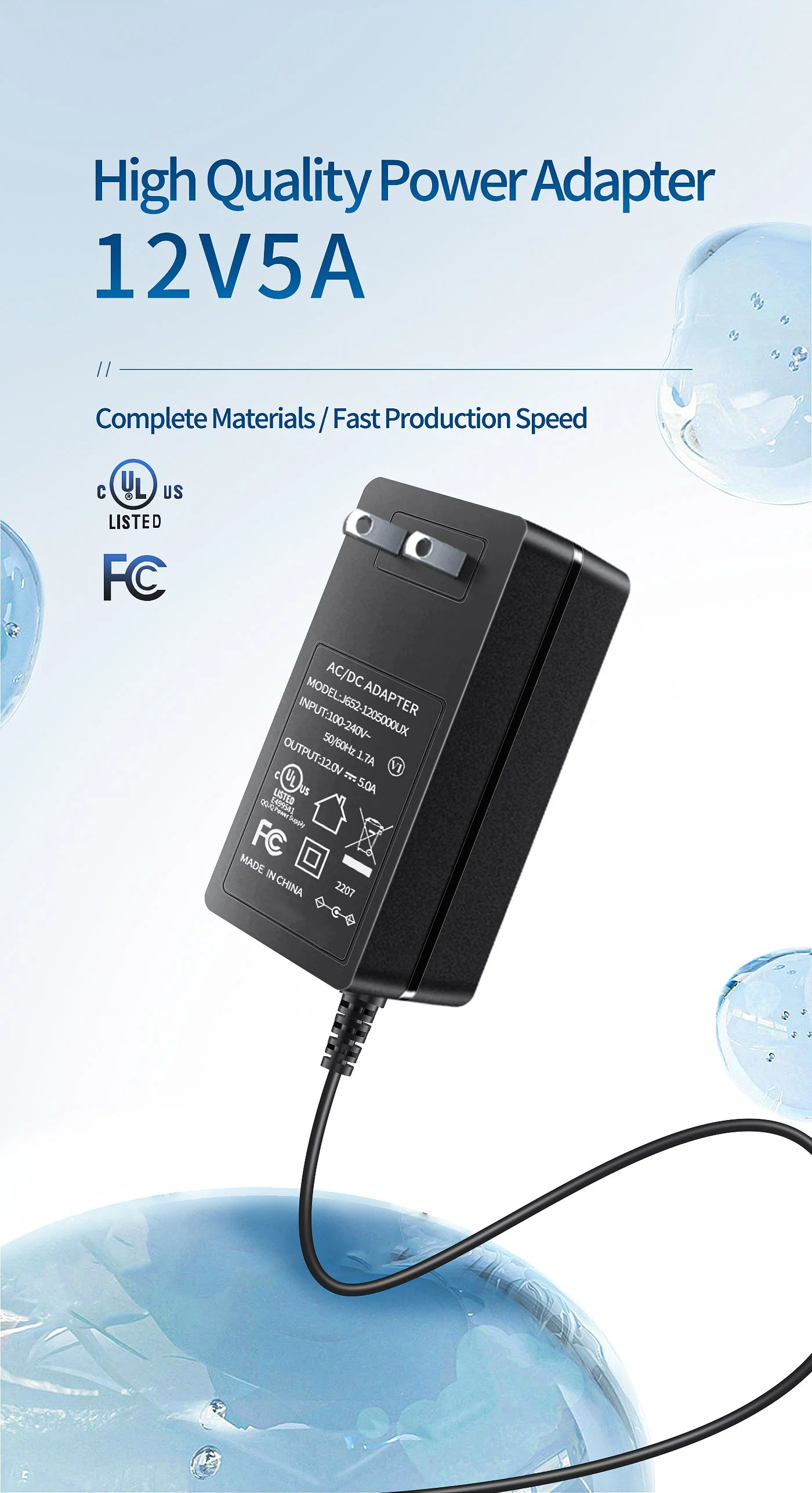

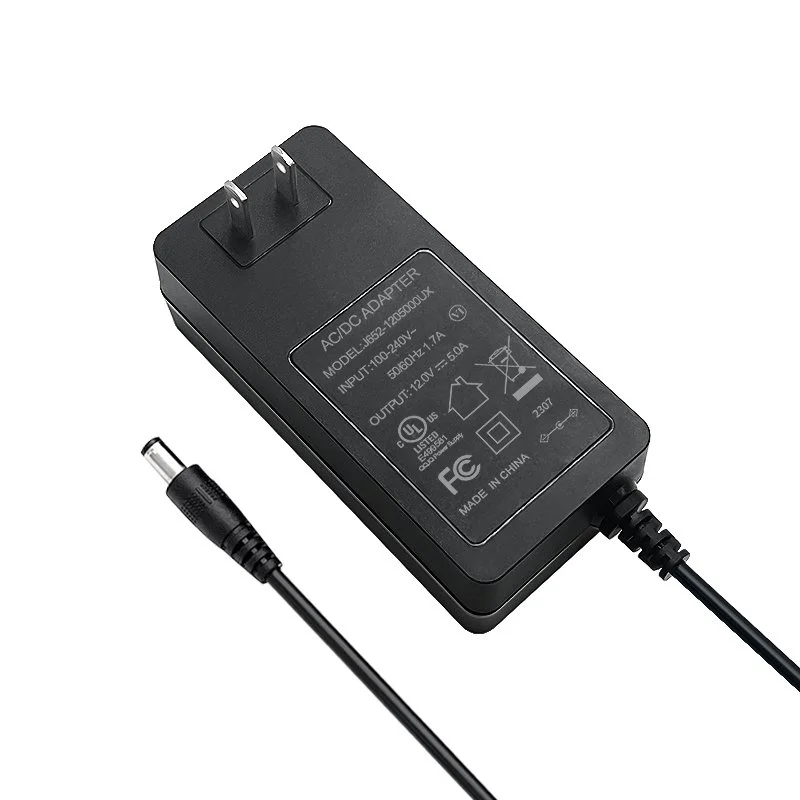

12V 5A Wallmount Power Adapter

This series of 12V 5A wall-plug switch-mode power adapter adopts high-performance PWM control chips and low-loss high-frequency transformers to achieve efficient AC to DC conversion. The input voltage range is wide, from 100 to 240VAC, with a frequency of 47 to 63Hz, which can adapt to the power grid fluctuations in different regions around the world. The output is a stable 12V DC with a rated current of 5A and a peak power of up to 60W. The ripple noise is controlled within ≤120mVp-p, ensuring a pure and stable power supply environment for sensitive loads.

What is a 12V 5A Wallmount Power Adapter?

The 12V 5A Wallmount Power Adapter is a compact, highefficiency switching power supply designed to convert AC mains voltage (100–240VAC, 50/60Hz) into a stable 12V DC output with a maximum current of 5 amperes (60 watts). Its spacesaving wallplug design eliminates the need for a separate power cord, making it ideal for both home and commercial installations where desk or floor space is limited.

Product features

Flexible application compatibility

This power adapter, due to its stable output and sufficient current margin, is widely compatible with three types of typical devices:

Consumer electronics and audio-visual equipment: 12V LED display screens, LCD monitors, routers, optical network terminals, active speakers, 3D printers, etc.

Security and access control systems: Security cameras, access control controllers, electric strike locks/magnetic locks, network video recorders (NVR)

Industrial and small-scale electromechanical equipment: 12V DC motors, cooling fans, small water pumps, automatic control cabinets, hard disk array cabinets

The wall plug design (with options for US, EU, UK, and AU plugs) can be directly inserted into wall sockets without the need for an external power cord. It is suitable for use in narrow spaces such as cabinets, weak current boxes, ceilings, and outdoor waterproof boxes. If desktop or rack installation is required, the desktop version of this series can also be chosen.

Multiple security authentication and protection mechanisms

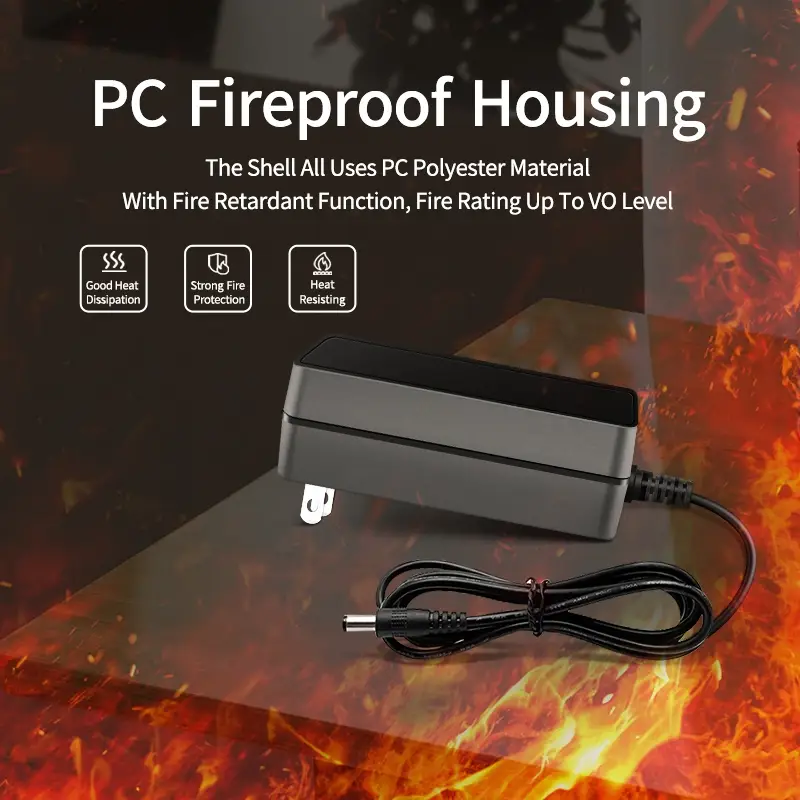

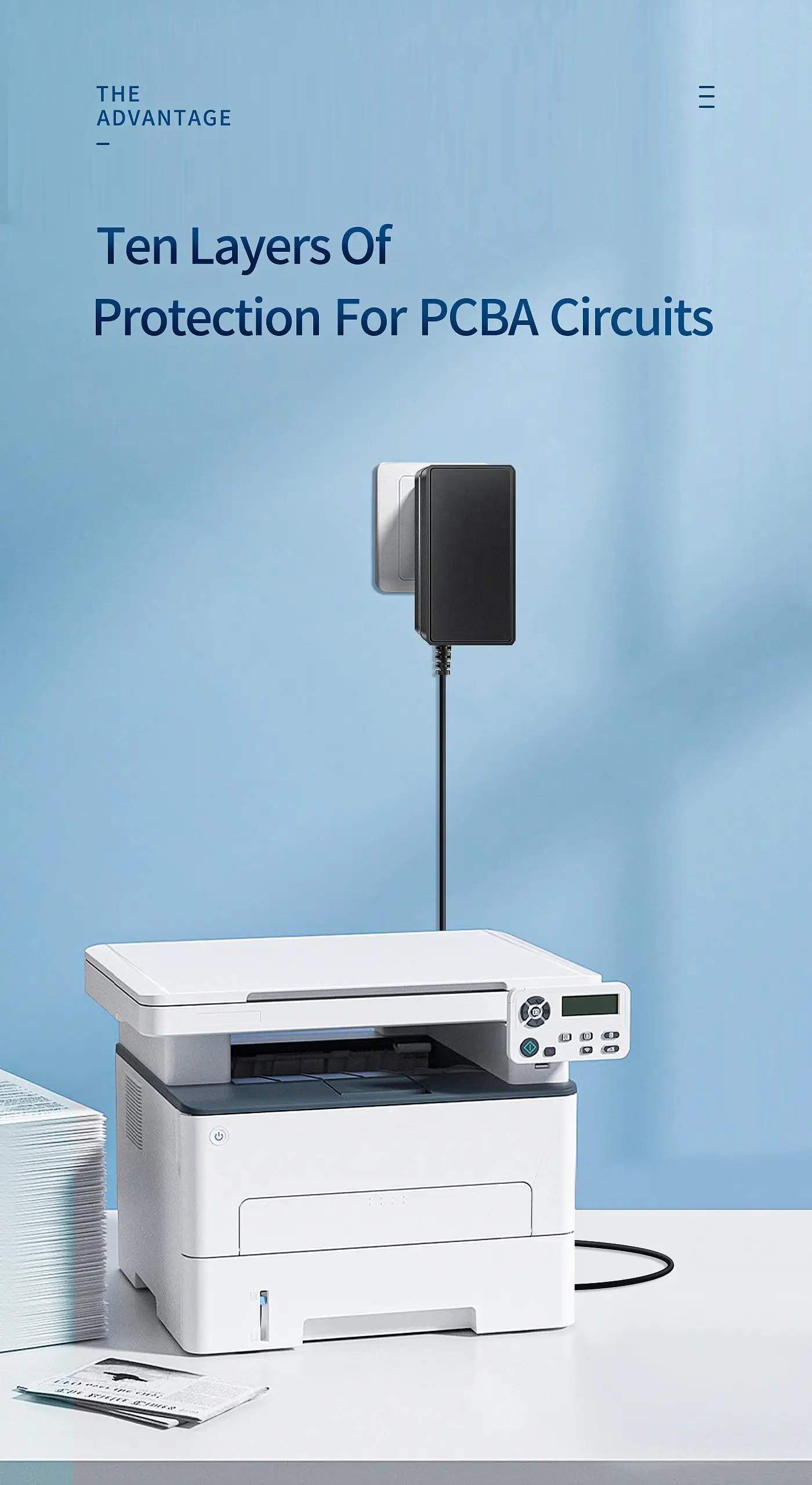

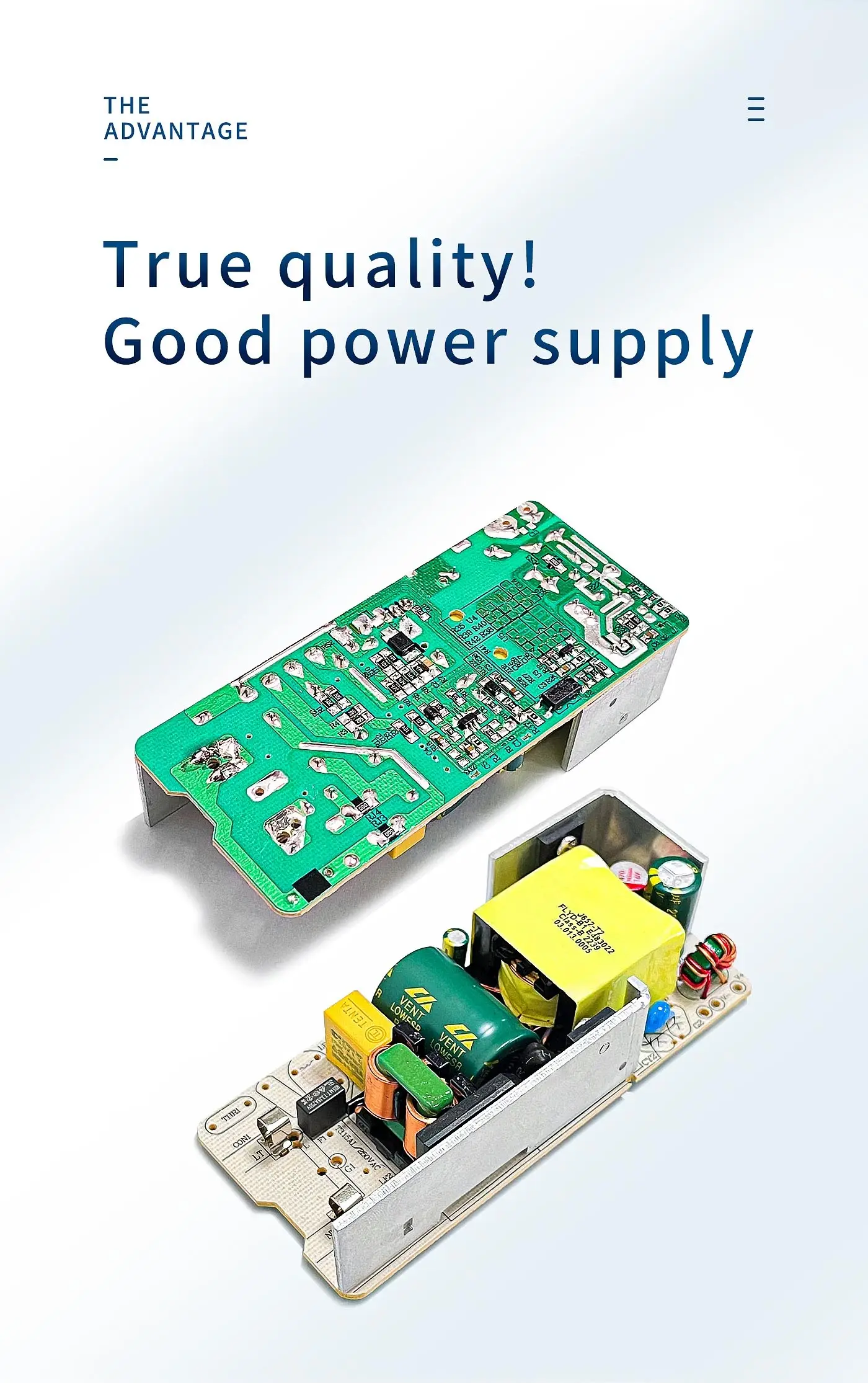

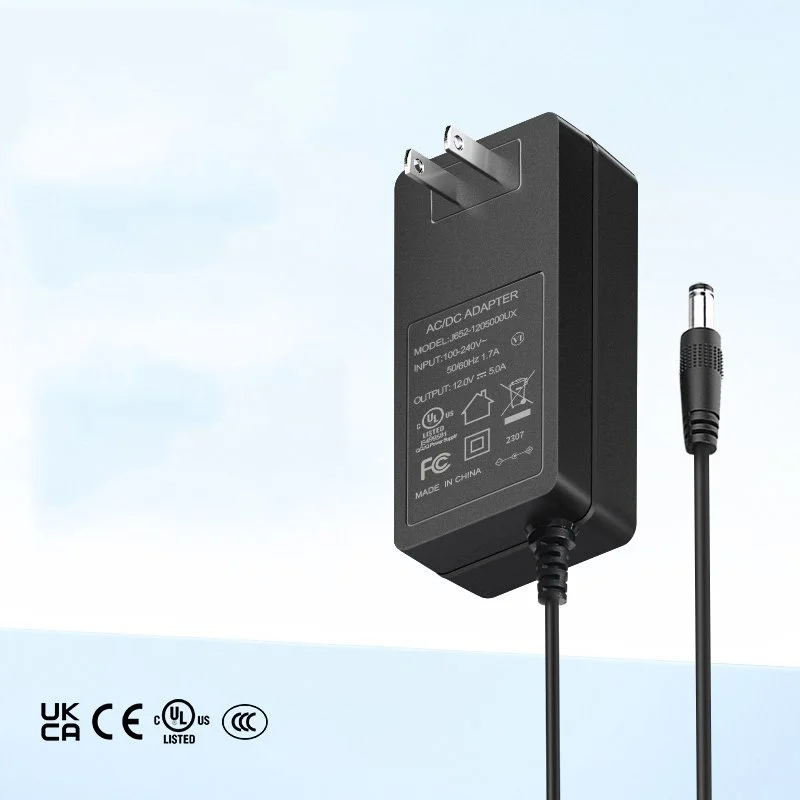

The power board is equipped with output short-circuit protection, overload protection (automatically shuts off when exceeding 5.5A), overvoltage protection (>15V shut-off), and chip over-temperature protection. The casing is made of 94V-0 grade flame-retardant PC/ABS material, which is heat-resistant and impact-resistant. The product has passed CE (EMC + LVD), FCC (Part 15B), RoHS 2.0, UKCA and GS certifications, and optional certificates such as UL, CB, PSE, KC, and SAA are available to meet the mandatory access requirements of different national markets.

Environmental Adaptability and Delivery Description

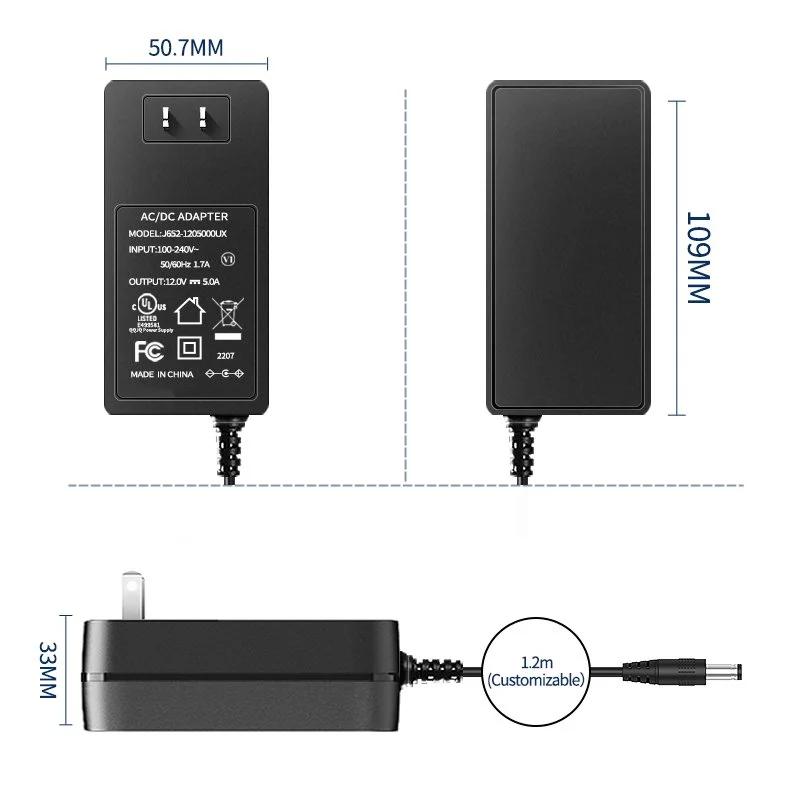

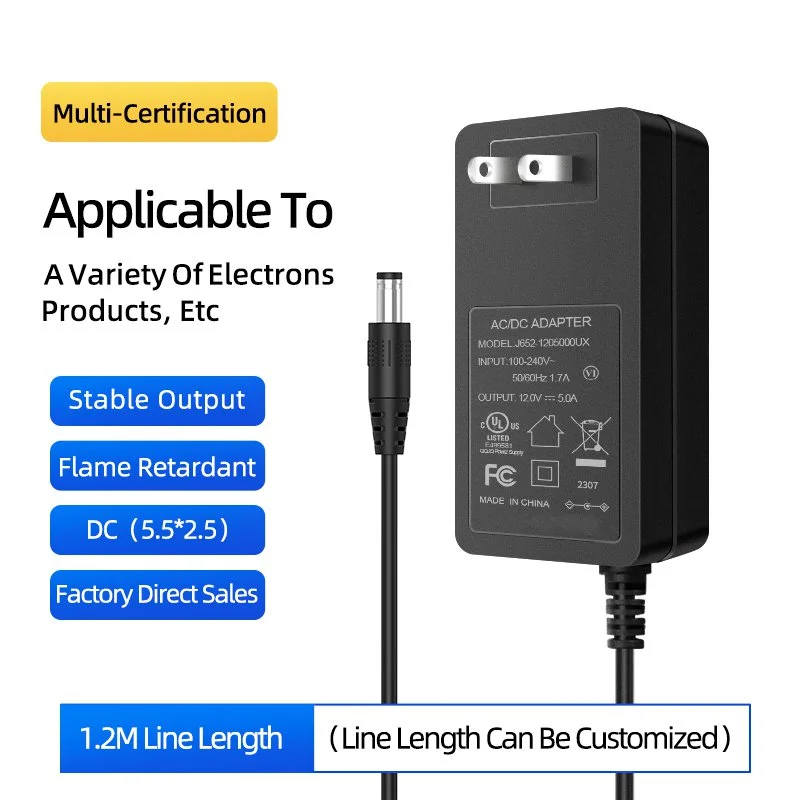

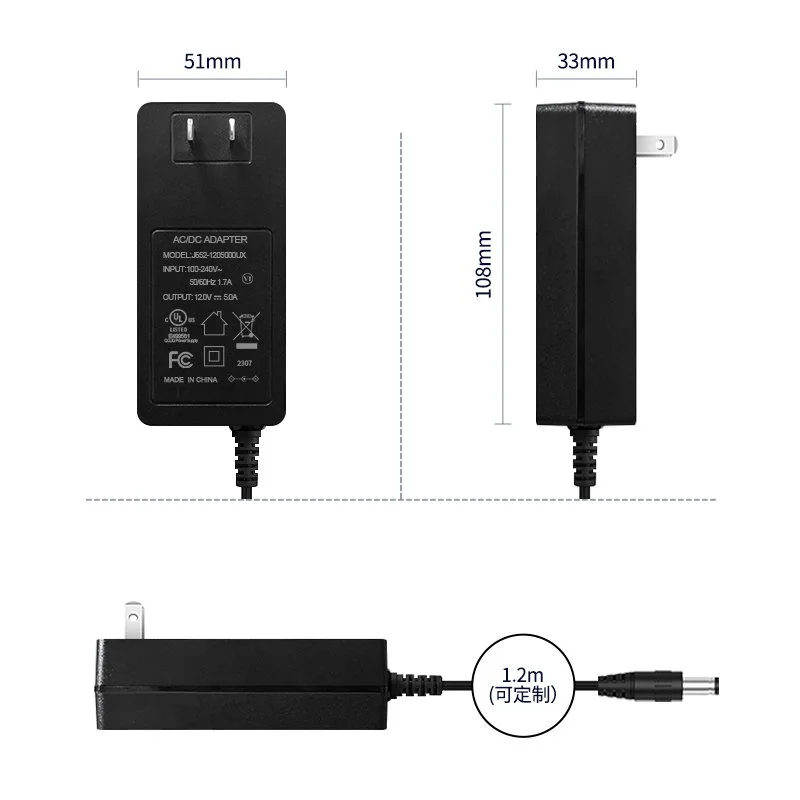

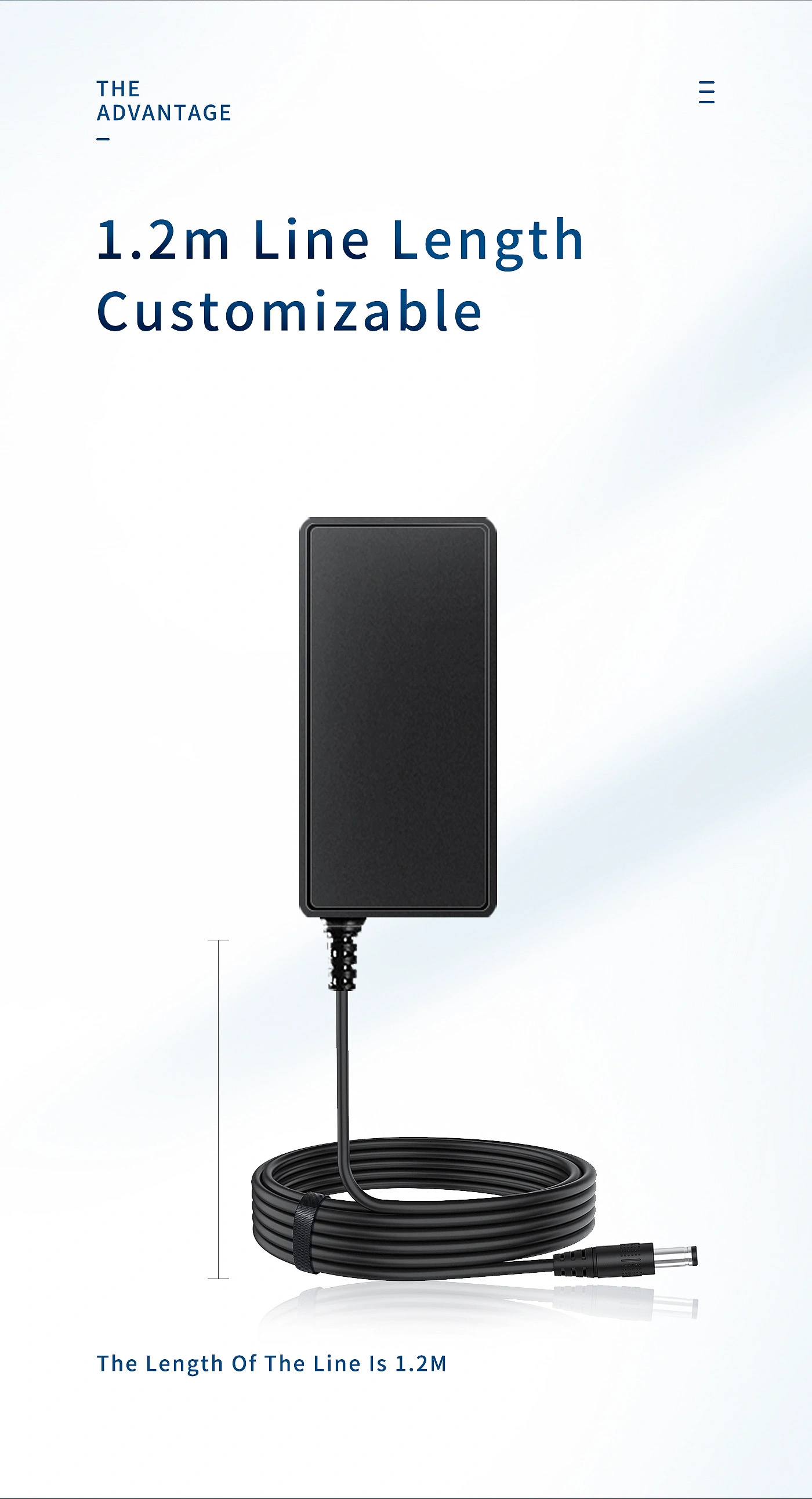

Operating temperature range: -10℃ to +40℃, with an enclosure temperature rise of no more than 30℃ under full load. The standard DC output cable is 1.2 meters long (customizable from 0.5 to 3 meters), and the default connector is a universal 5.5×2.1mm/2.5mm type. USB, aviation plug, and waterproof connectors are also available upon request. Each product undergoes 100% aging test and high-voltage insulation test before leaving the factory, with an average mean time between failures (MTBF) of no less than 50,000 hours. A 3-year quality warranty is provided, suitable for global OEM/ODM projects and channel bulk purchases.

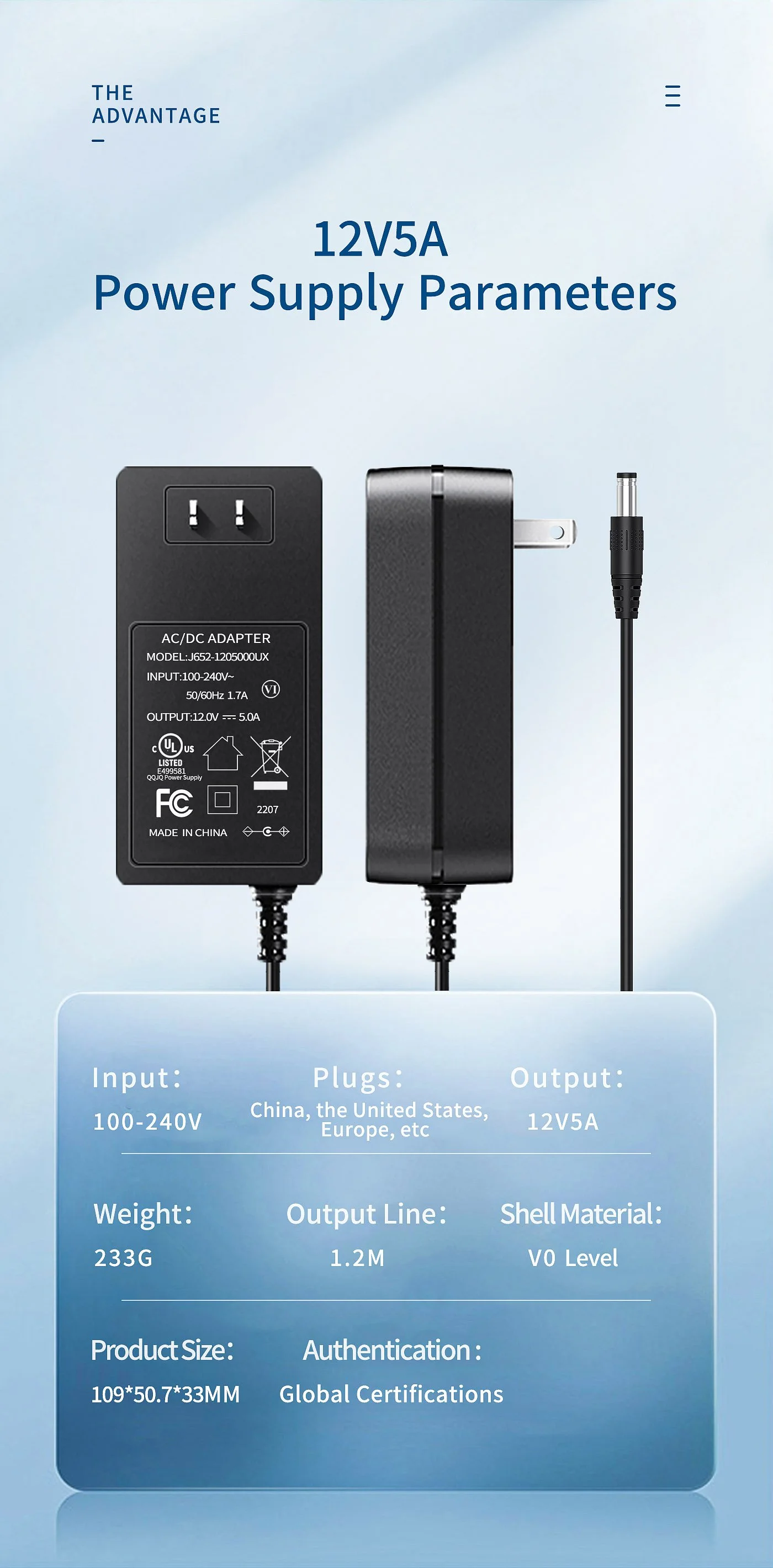

Parameters

Universal input: 100-240VAC 50-60Hz

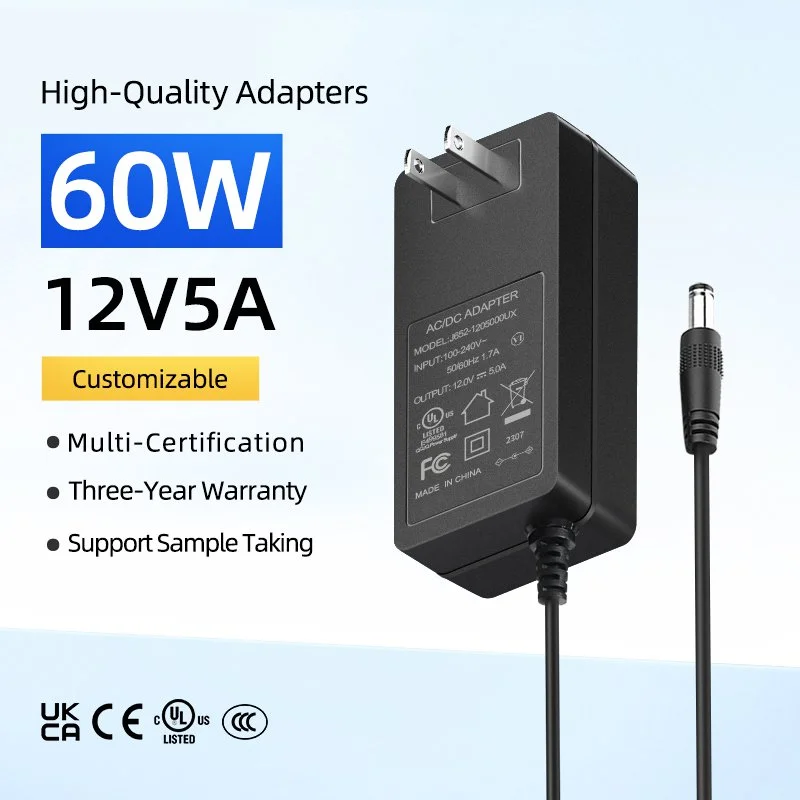

Output Power: 60 W

Plug Type: US/EU/AU/UK/ ac plugs optional

Output: 12V 5A

Certificates: UL, cUL,CE, FCC, TUV, UKCA, Safety Standard: IEC62368, IEC60601, IEC1310, IEC61558, IEC60335, IEC61347

Warranty: 3 years

Color: black or white optional.

DC jack: 5.5*2.5mm, 5.5*2.1mm, 4.0*1.7mm, 3.5*1.35mm, USB C etc...

Specification

To meet global market requirements, this 12V 5A wall mount power adapter holds several international certifications, including CE (Europe), FCC (USA), UKCA (United Kingdom), RoHS (environmental compliance), and can be supplied with UL, CB, GS, PSE, KC, or SAA approvals upon request. Whether for consumer electronics or light industrial applications, this adapter delivers consistent performance, energy efficiency (DoE Level VI or equivalent)

This adapter is widely used to power a variety of 12V devices, including LED strip lights, security cameras, routers, audio amplifiers, 3D printers, portable monitors, external hard drive enclosures, door locks, water pumps, and small motors. The 5A output capacity ensures reliable operation for equipment that requires moderate to high current under continuous use.
