China 12V 24V 48V CE Lead Acid Lithium LiFePO4 Automatic Battery Charger Suppliers, Manufacturers - Factory Direct Price

Product Details

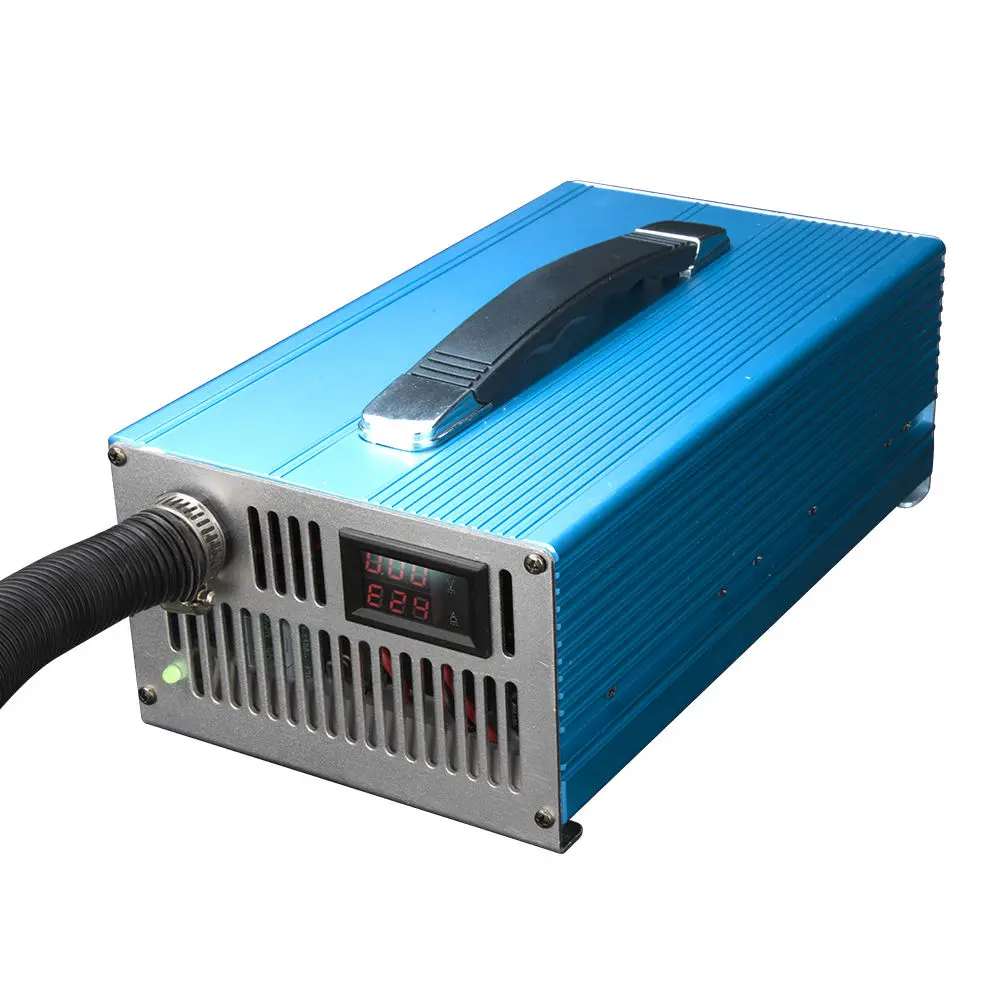

Wholesale 12V 24V 48V CE Lead Acid Lithium LiFePO4 Automatic Battery Charger for E-Bike Fast Charger, manufactured by STARWELL factory. It provides fast, safe, and efficient charging for electric bikes, scooters, and other electric vehicles.

Product Function

Intelligent Charging Technology: 7-Stage Charging—Automatically adapts to battery voltage and type

Bulk Charge

Absorption

Float Maintenance

Desulfation

Low-Voltage Activation

Extended Battery Lifespan: Extends battery life by up to 30%

Multiple Safety Protections:

Over-current, Short-circuit, and Reverse Polarity Protection

Over-voltage and Over-temperature Protection

Thermal Compensation: Real-time adjustment of charging parameters

High-Precision Charging Protocols:

LiFePO4 Batteries: 3.65V/cell

Lead-Acid Batteries: Follows standard charging curves

Wide Voltage Input: 100–240V AC—Broad compatibility

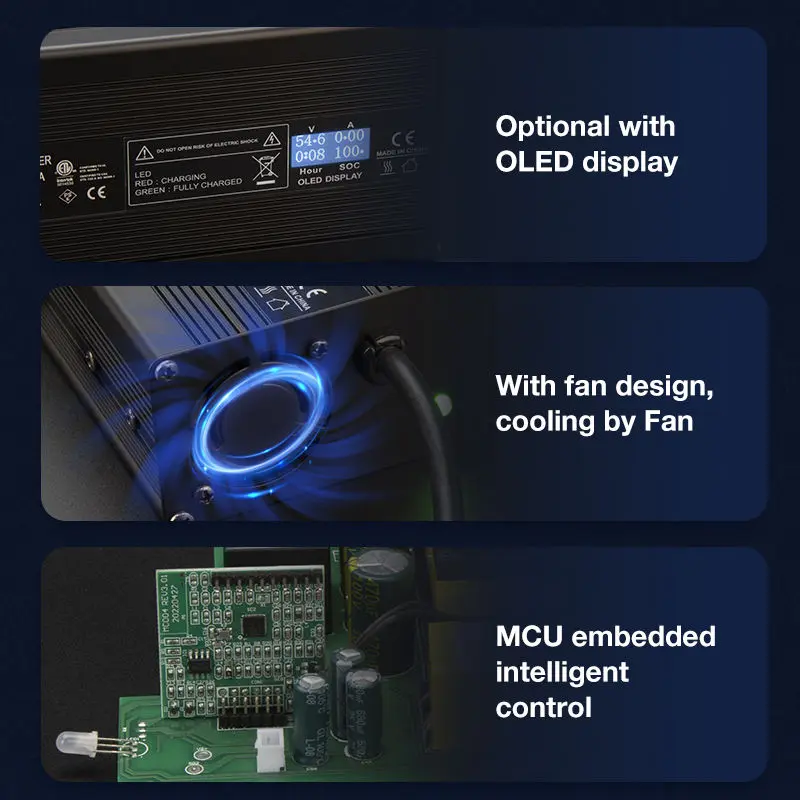

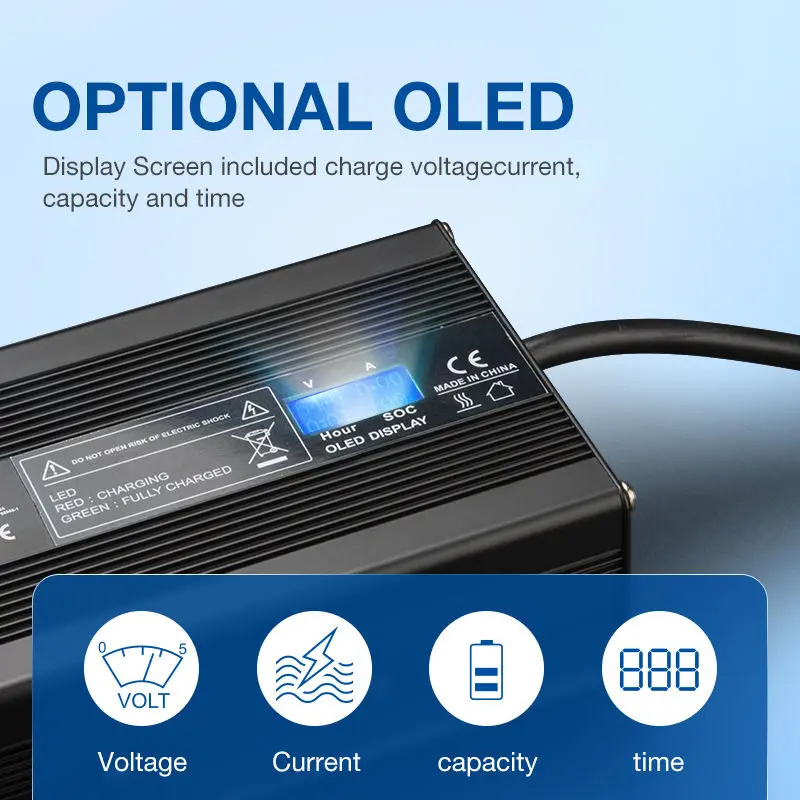

LCD Display: Real-time monitoring of voltage, current, and battery status

Robust & Durable: ABS+PC housing with IP65 dust and water resistance

Product Application

E-Bikes & Electric Motorcycles: E-Bikes, Scooters, and Fast Charging for Electric Motorcycles

Automotive & Motorcycles: 12V/24V Car Batteries, Motorcycle Battery Maintenance and Charging

Electric Golf Carts & Small Electric Vehicles: Suitable for Electric Golf Carts, Sightseeing Vehicles, etc.

Industrial Equipment: Forklifts, Electric Pallet Jacks, Power Tool Batteries

Solar Energy Storage Systems: Charging for Residential or Commercial Solar Battery Packs

Outdoor & Mobile Equipment: Campers, RVs, Marine Vessels, Portable Power Supplies, etc.

Laboratory & Professional Power: Batteries for Scientific Research and Industrial Testing Requiring High-Precision Charging

Quick charger Features:

High Output Capacity: Supports up to 300AH, 250AH, 240AH, 200AH lithium and lead-acid batteries.

Versatile Charging: Compatible with various electric vehicles including scooters, electric bikes, and professional and industrial applications.

Efficient Power Supply: Delivers stable power within the range of 12V to 72V, supporting 20-50A output current.

Safe and Reliable: Equipped with CE and ROHS certifications ensuring quality and safety.

Type	Electric, Power Supply Adapter, Universal Adapter, Fast Charger
Usage	Car battery charger/Motorcycle / Scooter
Protections	Short circuit/Overload/Over Voltage/Under Voltage/Over Current/Over Temperature/Reverse Polarity/Automatic shutdown/Timing/Discharging/No spark /short circuit protection

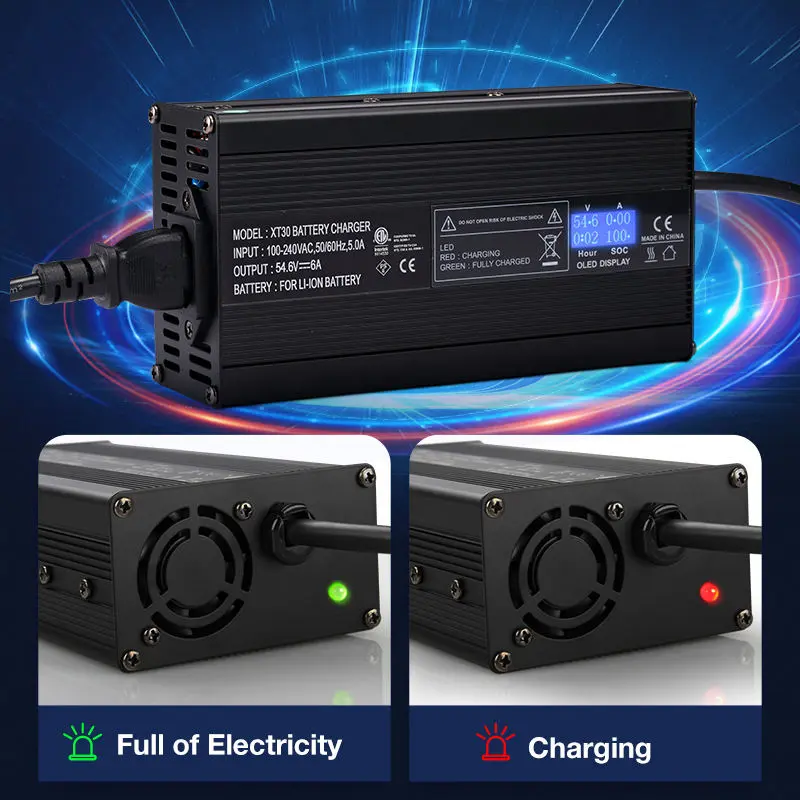

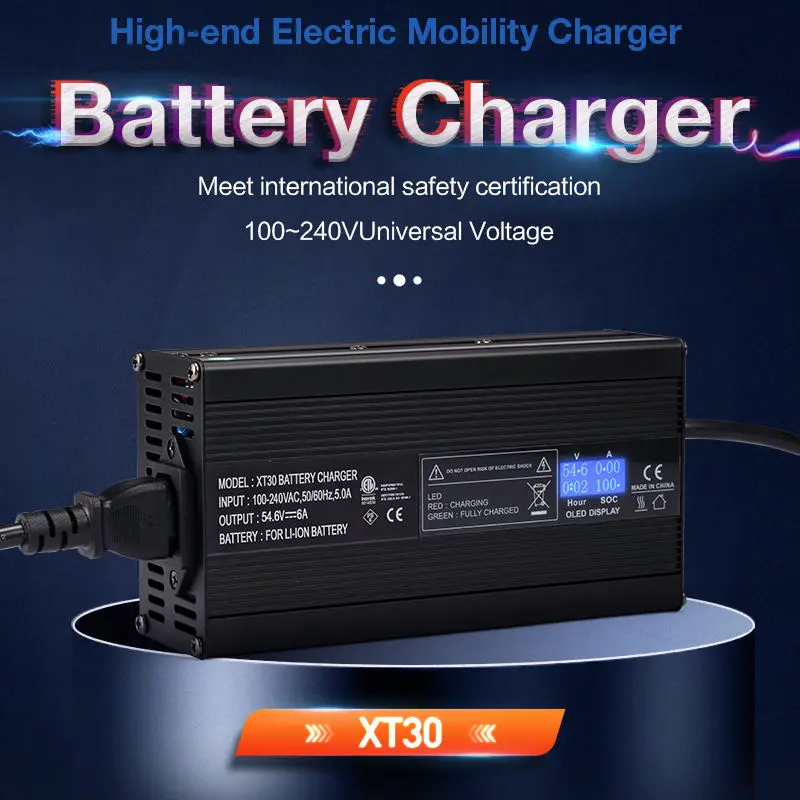

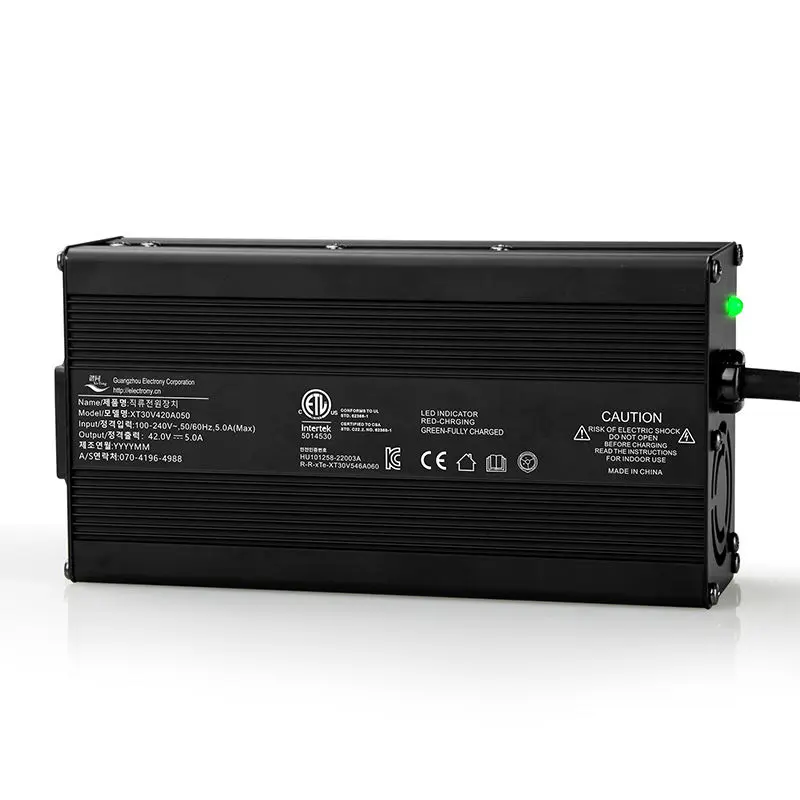

Model	XT30
Input voltage	90V-264V
Output power	240-336W
Output voltage and current	12v-72v/3A-15A
Weight	1.3kg
Port	AC,DC
Warranty	1 Year
Applying batteries	Lithium
Case material	Aluminum shell case
Dimension	172.590.651mm or Customized

	Ripple and Noise	≤2000mV Ripple & Noise: Measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor. (test under the condition of rated input and rated output)
	Standby Power	≤20W
	Turn on Time	5S/220VAC (Full load/)
	Rise Time	< 30ms
	Communication Protocol	/
Protection	Short Circuit	The power / battery is properly connected.
	Over Current /Over Load /Under voltage	After the abnormal conditions are lifted, the normal operation can be resumed.
	Over Voltage	When the output voltage exceeds 1.05-1.3 times of the rated voltage, the power supply will be protected and normal operation after abnormal conditions are lifted.
	Over Temperature	When the temperature of the transformer core exceeds 85 ° C, the output of the charger drops to half the current. After the temperature drops, it can recover on its own.
Environment	Operating Temperature	-25℃~+45℃
	Operating Humidity	10~95%RH, 10~95%RH, no condensation.
	Drop Tests	1 Corner, 3 Edges, 6 Surfaces, Height: 100cm, On the hardwood board, the plug can be bend, and scratch, but the structure should not be damaged, and can work normally.
	Storage Temperature、 Humidity	-40℃~+80℃，10~95%RH
	Operating Altitude	2000m
	Non-Operating Altitude	10000m
	Operating Vibration	Vibration:1.0G(Amplitude), 5~20~500Hz(Frequency), 30Minutes per cycle for each axis(X,Y,Z).

FAQ

1. Are you a manufacturer or trading company?

We are a factory with 8 years of experience in the power supply, power adapter, and charger industry.

2. Do your products deliver full current and full power?

Yes, we never supply products that are not full current or full power to our customers.

3. Are your products safe?

Absolutely. All our materials are brand new and fire-resistant. In addition, our products hold international certifications such as CE, ROHS, UL, FCC, TUV, GS, PSE, KC, CB, and BSMI.

4. What is your minimum order quantity?

500 pieces.

5. What warranty do you offer on your products?

One year.

6. How long is your delivery time?

For sample orders, delivery takes 2-3 working days after confirmation. For bulk orders, it generally takes 7-15 working days after confirmation, depending on the order quantity.

7. What services can you provide?

We welcome OEM and ODM orders.

8. What payment methods and trade terms do you accept?

We accept TT, PayPal, and Western Union. For bulk orders, we require a 30% deposit, with the remaining 70% paid before shipment.
