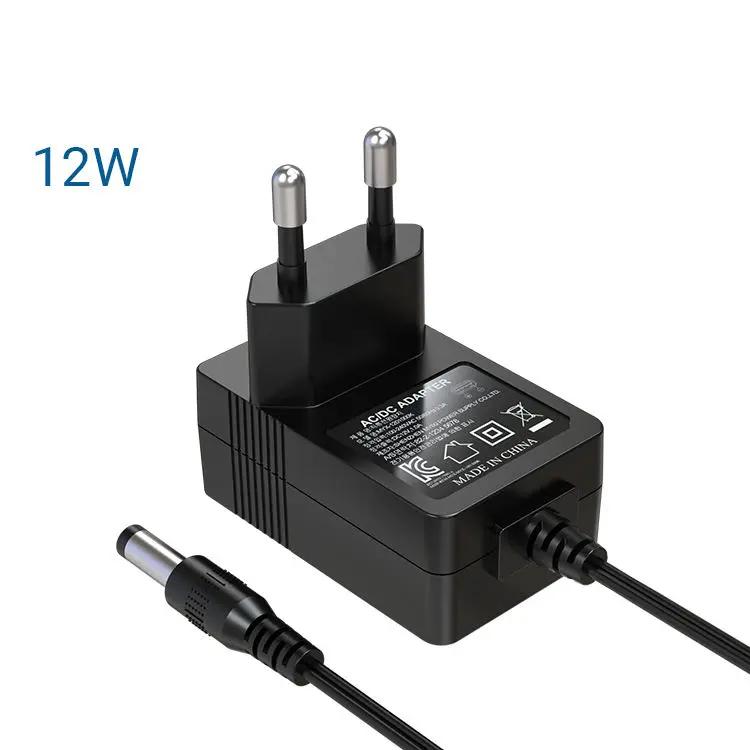

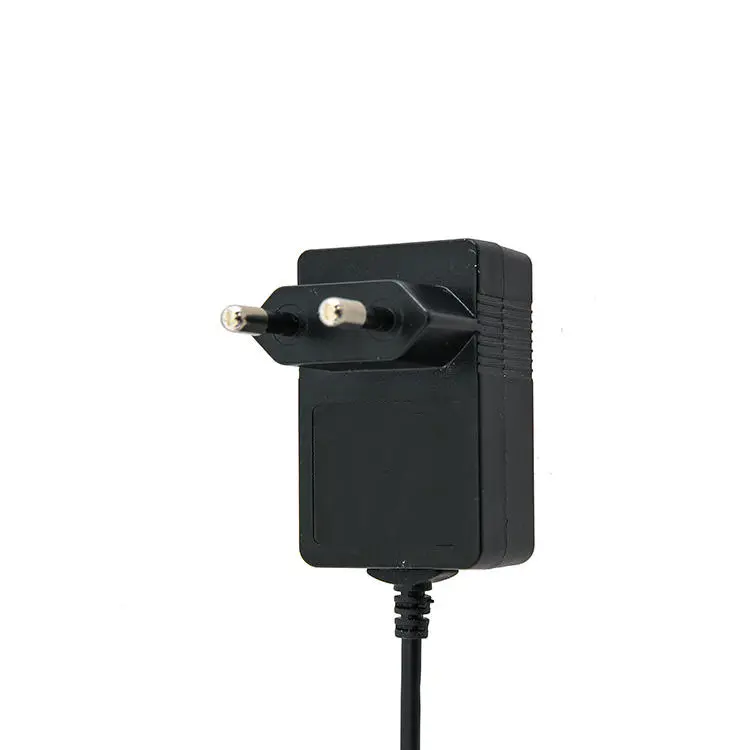

12V 1A KC Power Adapter
Starwell high quality compact 12V 1A KC Power adapter offers a universal 100-240V AC input and a stable 12V1A/ 5V2.4A/24V0.5A DC output. It is engineered with comprehensive protection features for safe and efficient charging of smartphones, Bluetooth speakers, and similar gadgets. Fully compliant with South Korean standards, it is a versatile and reliable power supply for both residential and commercial use, ensuring device safety and performance.
Power Adapter Features:
Universal input: 100-240VAC 50-60Hz
Plug type: KC plug
Output voltage: 12V1A/ 5V2.4A/ 24V0.5A/ 8V 1.5A /6V 2A
Warranty: 2 years
Certificate: KC KCC certificates

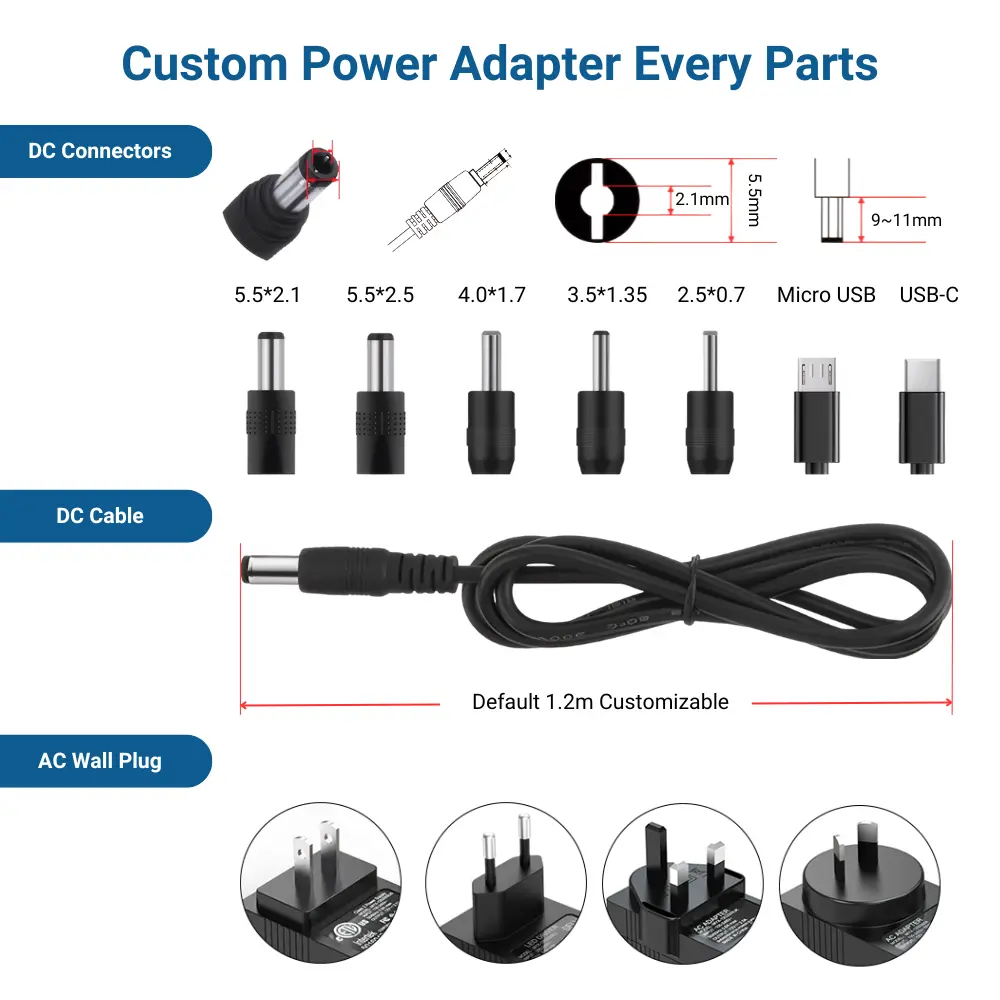

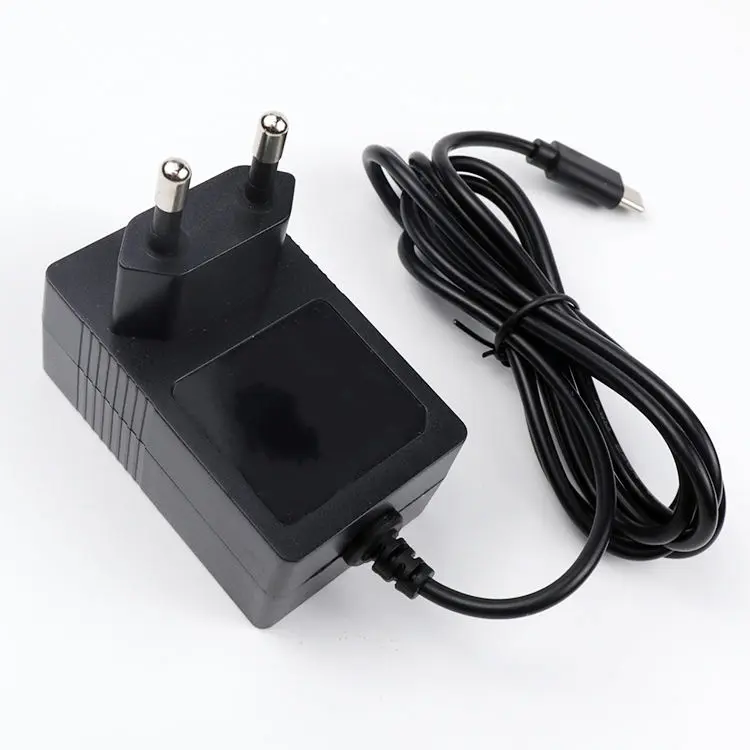

DC output ports: 5.5*2.1, 5.5*2.5, 3.5*1.35, 4.0*1.7, USB-C
Send Inquiry
DATASHEET
Product Details
KC KCC approval 12V 1A wall plug power adapter
The 12V 1A KC power adapter from Shenzhen Starwell Technology Co., Ltd. is your reliable power solution for a wide range of electronics. Designed with a Korean standard plug and full Korean certification, it guarantees safe and compliant use in South Korea.
We are AC/DC power supply factory that can customize any power adapter and pass relevant certifications.
Our unit price is related to quantity, great discount usually depend on great quantity. We can provide samples for you to test. Our sample time is 3 working days. The lead time for bulk goods is 25 working days.
Its compact plug-in design saves space. Providing stable and consistent 12W output power adapter, it is perfectly suited for routers, network switches, LED strips, and various other devices.
Backed by a 2-year manufacturer's warranty, this adapter combines dependable performance with long-term peace of mind.
12V 1A Power adapter Specification:
|
Input |
Over load |
130%-150% |
||
|
Voltage range |
100-240VAC |
Over voltage |
115%-135% |
|
|
Frequency range |
47/63Hz |
Environment |
||
|
Efficient |
78.8% Min |
Working temp |
0-40℃ |
|
|
AC current(max) |
0.5A |
Working humidity |
20%-90%RH |
|
|
Peak load current |
40A/230V |
Storage temp humidity |
-40-80℃ |
|
|
Output |
Safety & EMC |
|||
|
Voltage |
12VDC+/- 5% |
Safety standard: KC KCC MEPS VI LEVEL |
||
|
Rated current |
1.0A |
Withstand voltage |
5mA 3.75KV |
|
|
Rated power |
12W |
Isolated resistance |
100M ohms |
|
|
Ripple& noise |
120mV |
Others |
||
|
Lad regulations |
+/-3% |

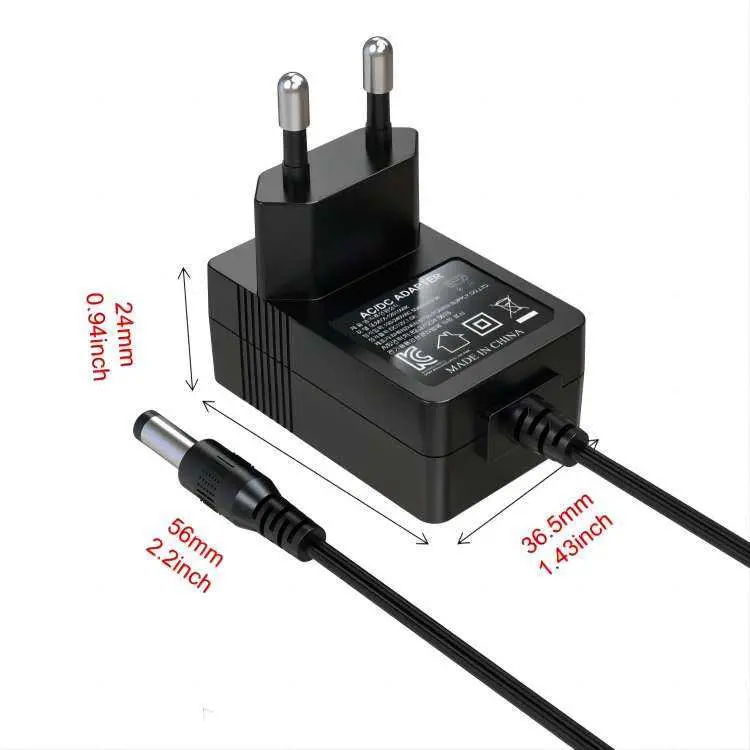

Dimension |
68*35*26mm |
|
|
Startup. rise. hold up time. |
100V/3m 100ms 10ms |
|||
|
Weight |
121g |
|||
|

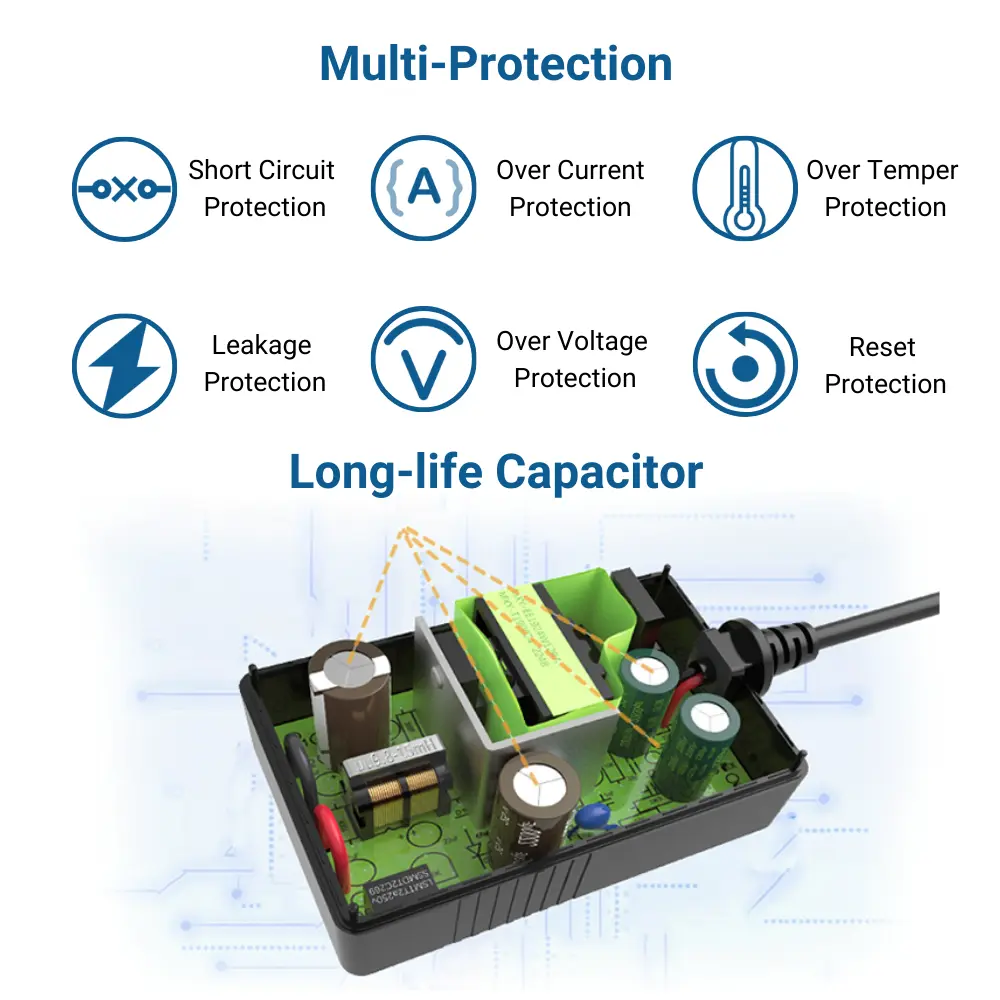

Protection |
Packing |
PE bag white box carton box |
||
Why choose Starwell ?
Q: Do you have OEM/ODM service? Can I have my own logo on the adapter?
A: Yes. We support OEM/ODM.
Q: What's your MOQ?
A: 1 piece for sample check, 1-1000 pieces, depending on the OEM&ODM demand.
Q: What certifications do you have?
A: We have UL CE RoHS FCC UKCA KC GS SAA RCM CCC CB PSE etc.
Q: How about the quality control?
We have well established standard operating procedures, all products will be full tested before packing. If the products do not work in the warranty period, please let us know them in detail and show us the relative picture, we will give after-sale service according to the situation.
Q:Do you offer guarantee for the products?
A: Yes, 2 years warranty.
Q: What's your payment item?
A: We accept T/T, West Union, PAYPAL etc.
