1200mA Constant Current Waterproof LED Driver

STARWELL, a professional manufacturer and supplier, specializes in LED driver. This high quality 1200mA Constant Current Waterproof LED Driver is specially designed for outdoor/damp environments and is compatible with various LED lamps ranging from 10 to 40W. It has an IP67 waterproof rating and can operate continuously outdoors for more than 50,000 hours. It is suitable for various scenarios such as home, commercial, and engineering, balancing stability and versatility.

Send Inquiry

Product Details

The STARWELL high quality 1200mA Constant Current Waterproof LED Driver, specifically designed for LED lighting fixtures in outdoor/humid environments, compatible with 10-40W street lights, garden lights, underwater lights, advertising light boxes and other multiple scenarios. Adopting a high-precision constant current chip, the output current error is ≤±3%, accurately and stably maintained at 1200mA, fundamentally eliminating flicker (flicker depth ＜5%) and light decay issues, which can extend the service life of LED fixtures by more than 30%; Equipped with IP67 waterproof sealing technology + waterproof potting technology, the waterproof level reaches no leakage for 30 minutes at 1 meter underwater, capable of coping with harsh environments such as rain, splashing water and dust, with an outdoor continuous working life of more than 50,000 hours, making it more reliable for long-term use.

Precise Constant Current · Long-lasting Durability: STARWELL constant current triac dimmable LED driver adopts a high-precision constant current chip. The output current error is ≤ ±3%, the output current is stable at 1200mA, and the flicker depth is <5%, thus eliminating the problems of flickering and light attenuation.It can extend the service life of LED lighting fixtures by more than 30%, and its continuous working life can reach 50,000 hours, thereby significantly reducing the costs of replacement and maintenance.

High-level Waterproof and Full-scenario Compatibility: IP67 waterproof standard, combined with waterproof potting + one-piece molding sealing technology, no leakage for 30 minutes at 1 meter underwater, with full waterproof, moisture-proof and dust-proof levels; Compatible with 10-40W LED fixtures in complex and harsh outdoor, underwater and other environments, with an ambient temperature range of -20℃~60℃.

Four-fold Protection · Safe and Secure: Real-time monitoring of circuit status, overvoltage protection threshold＞130% of input voltage, overcurrent protection threshold＞120% of output current, overheating protection temperature＞105℃, and immediate power-off within 0.1 seconds in case of short circuit, fully avoiding equipment damage and electrical safety hazards.

High Efficiency & Energy Saving · Strong Versatility: Power conversion efficiency is as high as 92% or more, standby power consumption ＜0.3W, meeting national first-class energy efficiency standards; Wide voltage input range of AC85-265V, compatible with global municipal power; Body size is 85×55×30mm, with three installation methods, covering home renovation, commercial and engineering scenarios.

Model	MC040N
Output Voltage	30-36V
Output Current	1.2A
Power	40W
Efficiency	89%@110VAC
Efficiency	90%@220VAC
Frequency	50-60Hz
Power Factor	PF>0.85@110VAC PF>0.9@230VAC
Standby power	<1W
Protection	Short Circuit	Hit cup,recovers after resart
	Over voltage	Hit cup,recovers after fault condition is removed
	Over Load	Hic cup,recovers after fault condition is removed
	Over temperature	No Output ,recovers after temperature<110℃
Safety&EMC	Surge	L-N:2KV
	Withstand Voltage	I/P-O/P:3.75KVAC/1min/5mA;I/P-GND:2KVAC/1min/5mA
	Safety Standards	IEC/EN61347-1,IEC/EN61347-2-13
Environment	Working Temp	-25℃~45℃
	Storage Temp	-40℃~85℃
	Tc	85℃
	IP Rating	IP67

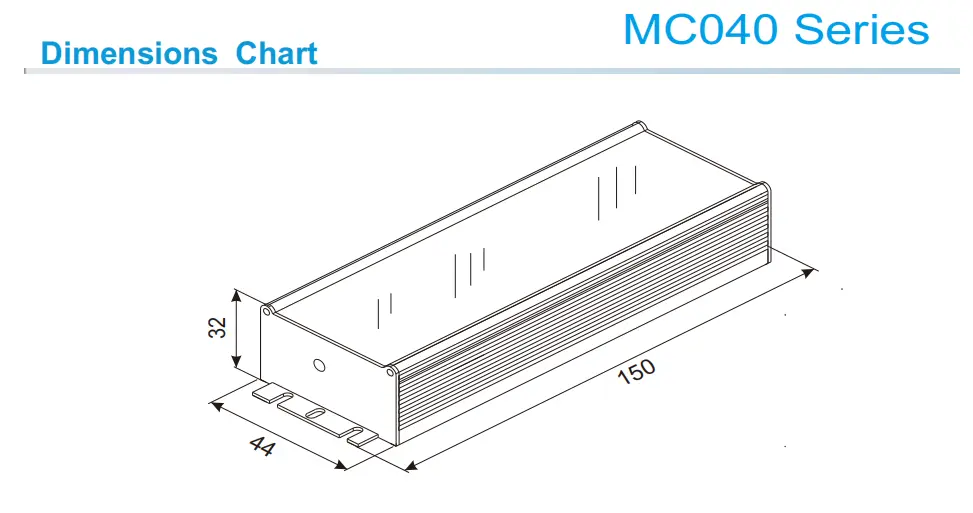

Others	Dimension	1304432mm
Others	Weight	0.42KG
