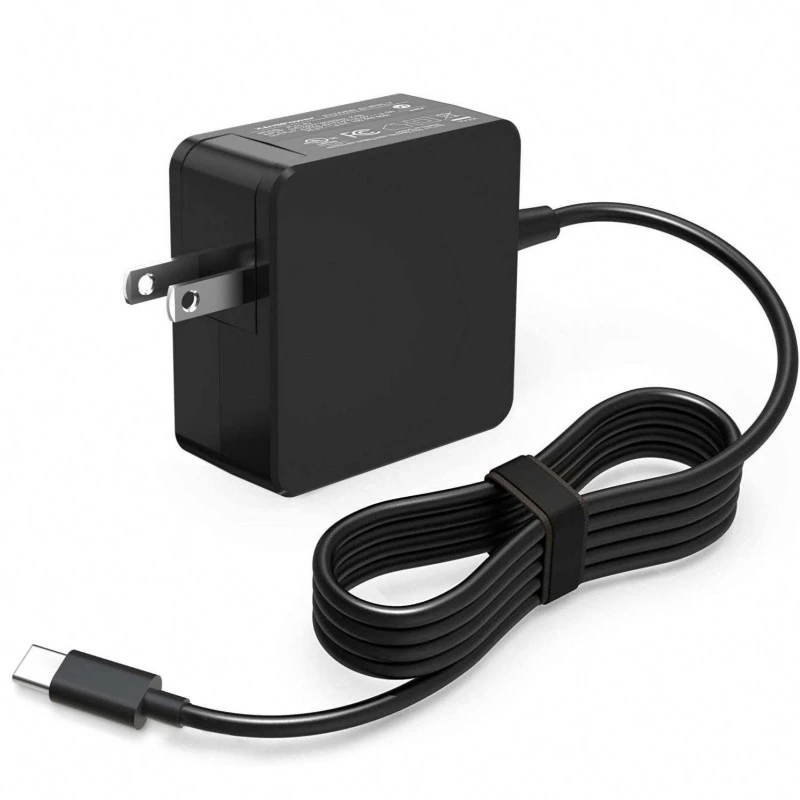

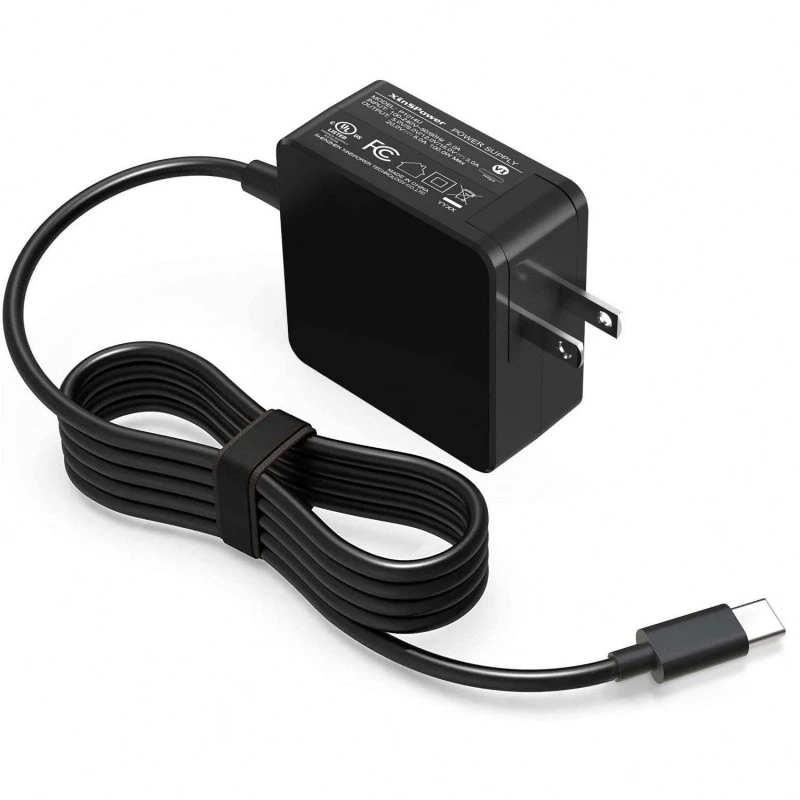

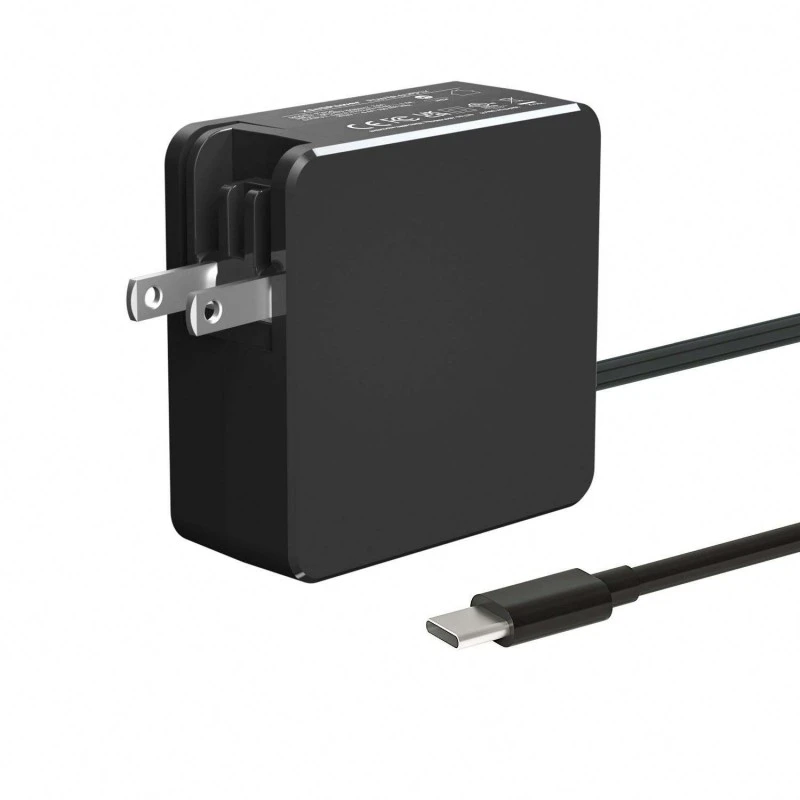

100W Fast Charge Universal Adapter
Wholesale 100W Fast Charge Universal Adapter PC Material Power Supply 12V/24V DC Output for Type-C Laptop Charger LED Light Application which manufactured by STARWELL. We offer cheap price and good quality 100W Fast Charge Universal Adapter PC Material Power Supply 12V/24V DC Output for Type-C Laptop Charger LED Light Application.
Send Inquiry
Product Details
This 100W fast charge universal adapter offered by Starwell factory in China, is a high-efficiency multi-functional power supply device made of high-quality PC material, featuring firm structure, fire resistance and long service life. It supports stable DC 12V and 24V dual output modes, meeting diverse power demand of different electronic equipment.
Designed with standard Type-C interface, it is widely applicable for fast charging various Type-C port laptops, realizing quick power replenishment and stable power supply. Besides laptop charging, it can also serve as professional power adapter for LED lights, household small appliances and other DC power needed devices.
Equipped with multiple intelligent safety protection systems, it effectively prevents overload, overheating and short circuit risks to guarantee safe operation. Adopting optimized internal circuit design, this adapter owns high energy conversion rate, lower heat generation and more energy-saving performance. Its portable body design is convenient for home, office and outdoor use. With strong universality and reliable working performance, it is an ideal multi-purpose power supply solution for daily electronic power supply needs.
Product Details
|
Product Name |
power adapter |
|||
|
Type |
plug in adapter/wall mounted adapter |
|||
|
Material |
PC Fireproof Material |
|||
|
Input |
100-240VAC ± 10%; 50/60Hz; 0.6A Max or 0.85A Max; |
|||
|
Output |
100W max 24V4A 24V5A, Or consult us for specific voltage and current to see if it can be customized or not |
|||
|
Pins |

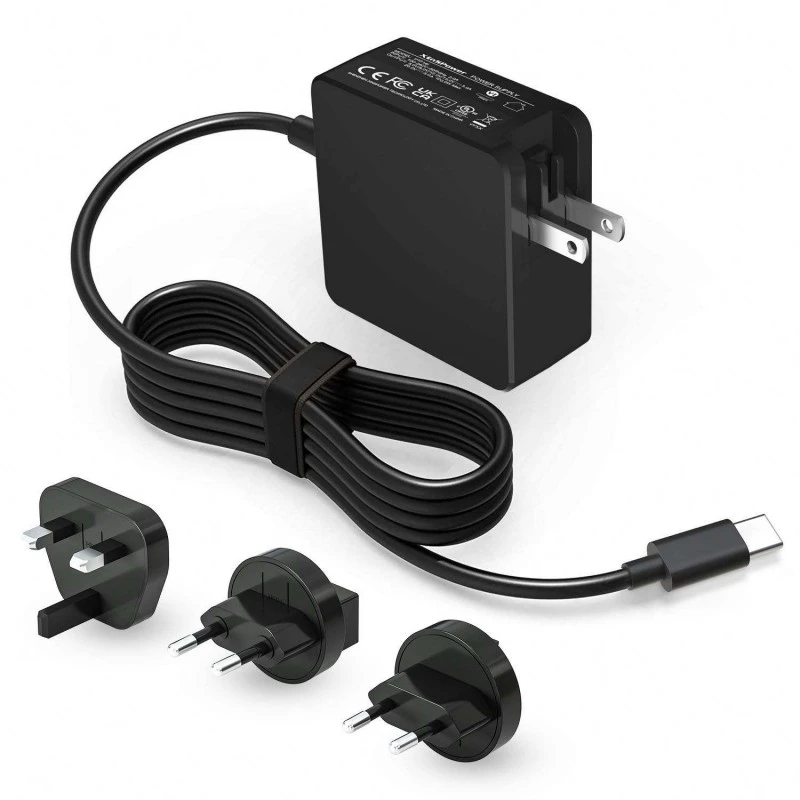

CN/US/JP/EU/KR/UK/AU/NZ, locking-type plug or detachable-type plug |
|||
|
Protection |
Over-temperature protection, over-charge, over-voltage, over-current, short circuit protection |
|||
|
Advantages |
Ultra-small size, light weight, streamline, fully sealed and easy to carry Low-cost design, high reliability, ultrasonic lamination, fireproof housing constant voltage mode, high precision, low noise |
|||
|
Certificates |
CCC/UL/CE/FCC/CB/KC/KCC/PSE |
|||
|
Energy efficiency |
ERP / CEC-V standard |
|||
|
Safety standards |
IEC-C6/IEC-C8/IEC-C14 |
|||
|
Package |
Specialized shipping box for sample PP bag package in outer carton with die cut cards protection for bulk order custom available |
|||
|
Usage |
Intelligent home appliance |
medical beauty machines |
Consumer electronics |
Sports equipment |
|
sweeping robots, air purifier, led lamps, cctv camera, mini fan, massage chair,massage pillow,etc. |
facial machines, hair removal device, etc. |
tablet, laptop, switch, set top box, electronic musical instrument, etc. |
massage gun, E-bike, scooter, etc. |
|
|
Model |
Reference Output(Voltage & Current ) |
Plug type or inlet |
plug in power adapters Usage |
|
SW-01xxxyyy-S01w 6Watts series |
5V1A, 5.9V0.83A, 9V0.55A, 12V0.5A, 15V0.4A, 24V0.2A |
US/EU/UK/JP/AUS/KC interchangeable plug/ C8, C6, C14 optional |
facial mask machine, wireless phone,electric towel heater,divider |
|
SW-01xxxyyy-S01w S04Series(12Max) |
5V2A,5V2.4A 12V1A, 15V0.8A |
US/EU/UK/JP/AUS/KC interchangeable plug/ C8, C6, C14 optional |
Desk lamps, massager |
|
SW-01xxxyyy-S04w 04Series(18max) |
5V2.4A, 5.9V2A, 9V2A, 9V1.5A, 12V1A, 12V 1.5A, 15V1.2A, 24V0.5A, 24V0.75A |
US/EU/UK/JP/AUS/KC interchangeable plug/ C8, C6, C14 optional |
massager, water heater,circulating tank,simsukian,breathing water pressure pump,humidifier,TV set, desk lamps |
|
SW-01xxxyyy-S02w 02Series(24max) |
5V2.5A, 5V3A,5V4A, 9V2.5A, 15V1.6A, 12V2A, 24v1A, 48V0.5A |
US/EU/UK/JP/AUS/KC interchangeable plug/ C8, C6, C14 optional |
Sweeping robot,aquarium products,pet supplies,LED light,AV matrix device,smart meter,POS machine,humidifier,beauty instrument |
|
SW-01xxxyyy-S03w 03Series(36max) |
5V5A, 9V4.0A, 12V3A, 15V2.4A, 18V2A, 24V1.25A, 24V1.5A, 36V1.0A, 48V0.75A |
US/EU/UK/JP/AUS/KC interchangeable plug/ C8, C6, C14 optional |
electric curtains,simsukian,aquarium products,circulating tank,water purifier,fitness equipment |
|
SW-00xxxyyy-S10 S10series (48W Max) |
5V6A, 9V5A, 12V4A, 15V3.2A, 18V2.67A, 19V2.5A, 24V2A, 36V1.33A, 48V1.0A |
US/EU/UK/JP/AUS/KC interchangeable plug/ C8, C6, C14 optional |
Sweeping robot, drone, musical instrument, home appliances |
|
SW-00xxxyyy-S10 S10series (65W Max) |
5V10A,9V6A,12V5A, 15V4A, 13V5A, 18V3.5A 24V2.5A, 36V1.8A, 48V1.33A |
C8, C6, C14 optional |
Audio, Video, home application, printer, motor eqipment |
|
SW-00xxxyyy-S12 S12series (96W Max) |
12V8A, 15V6.0A, 18V5.0A,19V5.0A, 24V4.0A, 36V2.67A, 48V2A |
C8, C6, C14 optional |
Audio, Video, home application, printer, motor eqipment |
|
SW-00xxxyyy-S12 S12series (120W Max) |
9V8A, 12V10A, 15V8A, 19V6.3A, 24V5.0A, 36V3.33A, 48V2.5A |
C8, C6, C14 optional |
Audio, Video, home application, printer, motor eqipment |
|
SW-00xxxyyy-S12 S12series (150W Max) |
12V10A, 15V10A, 19V7.9A, 24V7.25A, 48V3.1A |
C8, C6, C14 optional |
Audio, Video, home application, printer, motor eqipment |
|
SW-00xxxyyy-S18 S18series (180W Max) |
12V15A, 15V12A, 18V10A, 19V9.4A, 36V5.0A, 48V3.75A |
C8, C6, C14 optional |
Audio, Video, home application, printer, motor eqipment |
|
xxx=050-560 means output voltage is 5-56VDC, yyy=001-100, means the output current is 0.01A-10.0A UL NO.: E352029
|
|||
Safety Standards
EMC Stadnards:
|
GB9254 |
GB17625.1 |
GB13837 |
FCC-Part15 |
|
EN55035 |
EN55032 |
CISPR22 |
EN 62368-4-4 |
|
EN 62368-3-2 |
EN 62368-3-3 |
EN 62368-4-2 |
EN 62368-4-3 |
|
EN 62368-4-5 |
EN 62368-4-6 |
EN 62368-4-8 |
EN 62368-4-11 |
Safety Standards:
|
Type |
Country |
Standard |
|
Type |
Country |
Standard |
|
CCC |
China |
GB4943 |
|
CE |
Europe |
EN 62368-1 |
|
CCC |
China |
GB8898 |
|
CB |
CB |
IEC 62368 |
|
UL/CUL |
USA |
UL 62368-1 |
|
RCM |
Australia |
AS/NZ 62368-1 |
|
KC |
Korea |
K62368 |
|
GS/TUV |
German |
EN 62368-1 |
FAQ
Q1: What devices are compatible with the 100W Fast Charge Universal Adapter?
A: It supports Type-C laptops, LED lighting systems, CCTV devices, small appliances, and various DC-powered electronics requiring stable 12V or 24V output.
Q2: Can this adapter safely charge high-power laptops?
A: Yes, it supports up to 100W output with stable DC power delivery, making it suitable for most Type-C laptops requiring fast and reliable charging.
Q3: Does the adapter support both 12V and 24V output?
A: Yes, it features dual DC output modes of 12V and 24V, allowing flexible use across different devices and applications.
Q4: What safety protections are included?
A: The adapter includes over-current, over-voltage, over-temperature, and short-circuit protection systems to ensure safe and stable operation.
Q5: Is this adapter suitable for long-time continuous use?
A: Yes, its efficient heat dissipation structure and stable circuit design allow safe long-term operation without performance degradation.Hot Tags: 100W Fast Charge Universal Adapter, China, Manufactures, Suppliers, Factory, In Stock, Bulk, Quality, Classy, CE
